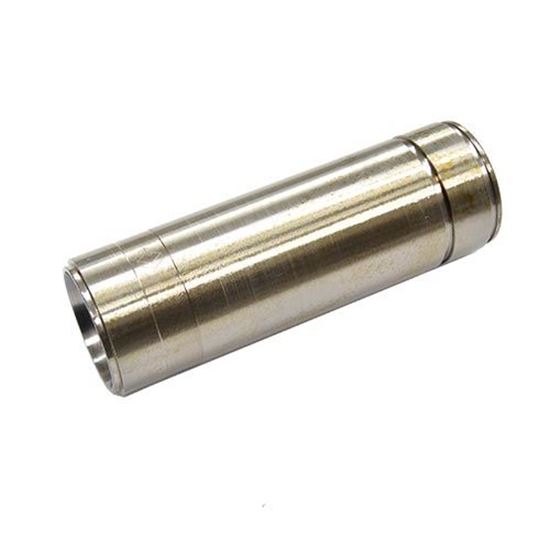

Graco Piston Sleeve

Part #: 248210
Availability: Low Stock
$364.00
$347.00
Graco
OEM Graco
Graco Airless Paint sprayer Sleeve Assembly - 248210

The Graco 248210 airless sprayer sleeve assembly houses all of the major fluid section components, including the piston rod, cylinder, and main fluid packings.

For use with the following Graco airless sprayers:

Airless Paint Sprayer Model No. Series Letter
1095 II Ult MX Prem Hi-boy 826044
1095 II Ult MX Std Hi-boy 826050
1095 II Ultra Max Prem Hi-boy 248034
1095 II Ultra Max Std Hi-boy 248039
1095 II UltraMax Premium Hi-Boy 249653 A
1095 II UltraMax Standard Hi-Boy 249651 A
1095 II Ultimate MX Stand. High-Boy 826073 A
1095 II Ultimate MX Prem. High-Boy 826074 B
1595 II Ult MX Prem Hi-boy 826045
1595 II Ult MX Std Hi-boy 826051
1595 II Ult MX Prem Hi-boy 826053
1595 II UltraMax Prem Hi-boy 248035
1595 II UltraMax Std Hi-boy 248040
1595 II UltraMax Premium Hi-Boy 253059 A,B
1595 II UltraMax Standard Hi-Boy 253060 A
1595 II UltraMax Stand. (Non ETL) 249658 A
1595 II Ultimate MX Stand. High-Boy 826082 B
1595 II Ultimate MX Prem. High-Boy 826081 A
1595 II Ultimate MX Stand.(Non ETL) 826075 A
1595 II Ultimate MX Prem.(Non ETL) 826076 A
1595 ULTIMATE MX 824160
1595 ULTIMATE MX 825040
1595 ULTIMATE MX CSA 825042
1595 Ultra Max (Bare) 232160
1595 Ultra Max 232161
1595 Ultra Max CSA (Bare) 232162
1595 Ultra Max CSA 232163
1595 Ultra Max Hi Boy Bare 245040
1595 Ultra Max 245041
1595 Ultra Max 245042
1595 Ultra Max 245043
3012 With GMax 5900 Pump 224524 B
5900 II GMax Conv Hi 248889
5900 II GMax Conv Hi prm 248692
5900 II GMax Conv Hi std 248691
5900 II GMax Conv Hi std 248693
5900 II GMax Conv Lo prm 248696
5900 II GMax Conv Lo prm 248890
5900 II GMax Conv Lo std 248694
5900 II GMax Conv Lo std 248695
5900 II GMax Conv Lo std 248697
5900 II GMax Conv Lo-Boy (Gas ) 248695
5900 II GMax Prem HI boy 248690
5900 II GMax Prem lo boy 248689
5900 II GMax Std HI boy 248688
5900 II GMax Std Lo boy 248687
5900 GMax Lo Boy (Non Display) 232623
5900 GMax Lo Boy(Bare)(Non Display) 232622
5900 GMax Hi Boy (Non Display) 232621
5900 GMAX Hi Boy(Bare)(Non Display) 232620
5900 GMax Bare/HiBoy 233706
5900 GMax Bare/LoBoy 233705
5900 GMax Complete/HiBoy 233708
5900 GMax Complete/LoBoy 233707
5900 GMAX CONV Non Display 232624
5900 GMAX CONV Non Display 232625
5900 GMAX CONV Non Display 232626
5900 GMAX CONV Non Display 232629
5900 GMAX CONV Non Display 232680
5900 GMAX CONV Non Display 232682
5900 GMax Conv/Hi 233709
5900 GMax Conv/Hi 233710
5900 GMax Conv/Hi 233711
5900 GMax Conv/Hi 233712
5900 GMax Conv/Lo 233713
5900 GMax Conv/Lo 233714
5900 GMax Conv/Lo 233715
10000 GMAX 232640
130 GH Conv. Bare 253709
130 GH Conv.Comp. 253957
130 GH Conv. Bare w/electric motor (non csa) 253959
130 GH Conv. Bare w/electric motor (csa) 253980
5900 LineLazer II 232661
5900 LineLazer II W/1 Gun 233728
5900 LineLazer II W/2 Guns 233729
5900 LineLazer III 1 GUNS 233690
5900 LineLazer III 2 GUNS 233691
5900 Linelazer IV 1 gun 248866
5900 LineLazer IV 2 gun 248867
5900 LineLazer IV Auto-Layout 1 gun 253921
5900 LineLazer IV Auto-Layout 2 gun 253954
5900HD TexSpray 248699
5900HD TexSpray Conv 255630
5900HD TexSpray Conv 255631
5900HD TexSpray Conv (CSA, ETL,UL) 255954
Mark V Non ETL Approved 249903 A
MARK V 249029
Mark V ETL Approved 249904 B
1095 II UltraMax Premium Hi-Boy 249653 B
1595 II UltraMax Stand. (Non ETL) 249658 B
1595 II UltraMax Prem. (Non ETL) 249659 A
Mark V Non ETL Approved 249903 B
Mark V ETL Approved 249904 A
1595 II UltraMax Premium Hi-Boy 253059 B
1095 II UltraMax Standard Hi-Boy 249651, 253060 B
1095 II Ultimate MX Stand. High-Boy 826073 B
1095 II Ultimate MX Prem. High-Boy 826074 A
1595 II Ultimate MX Stand.(Non ETL) 826075 B
1595 II Ultimate MX Prem.(Non ETL) 826076 B
1595 II Ultimate MX Prem. High-Boy 826081 B
1595 II Ultimate MX Stand. High-Boy 826082 A
