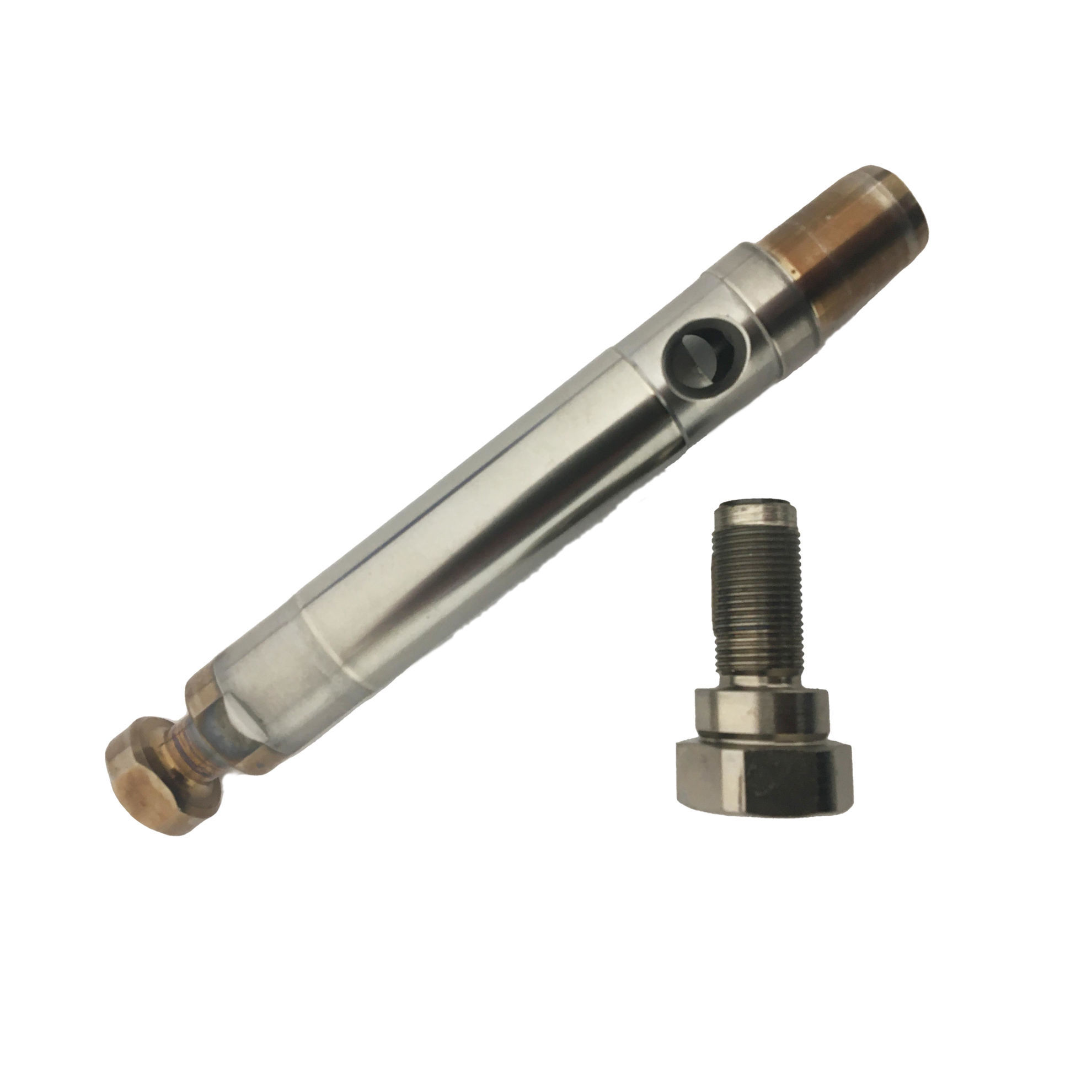

Graco 24W617 Piston Rod Replacement

$137.00
$132.89
SKU: 24W617
Part #: 24W617
GTIN: 633955695382

Graco OEM 24W617 ProConnect Replacement Rod Paint Sprayer Pump Kit

Replace your pump rod with genuine Graco parts. Replacement part for rebuilding ProConnect pump. kit includes rod with installed piston valve. ProConnect pump is for Pro 210ES cart or stand model sprayers. Refer to the parts manual for your sprayer to ensure part compatibility

The piston rod connects the internal parts to the motor and gear box. The rod moves up and down with the action of the drive system and motor. Fluid is loaded on the upstroke and displaced on both the upstroke and downstroke. Displacing fluid on both the up and down strokes ensures an even flow of fluid to the hose and gun.

Rod and piston are part of the sprayer pump for pumping fluid

  • Rod and piston are part of the sprayer pump for pumping fluid
  • Sprayer does not prime or spray, it may be from high pressure cuts, scratches and wear from not repacking the pump
  • Graco tech support can further assist with troubleshooting sprayer operation
  • For repairing the ProConnect pump, 17C721, which is used in the Pro210ES airless paint sprayer stand, 16D163 or cart 17C305
  • Genuine Graco parts kit includes rod with installed piston valve

For use with these airless paint sprayers pump models:

  • 17C487
  • 17C488
  • 17C489
  • 17C721
  • 17M992
  • 24Z731
