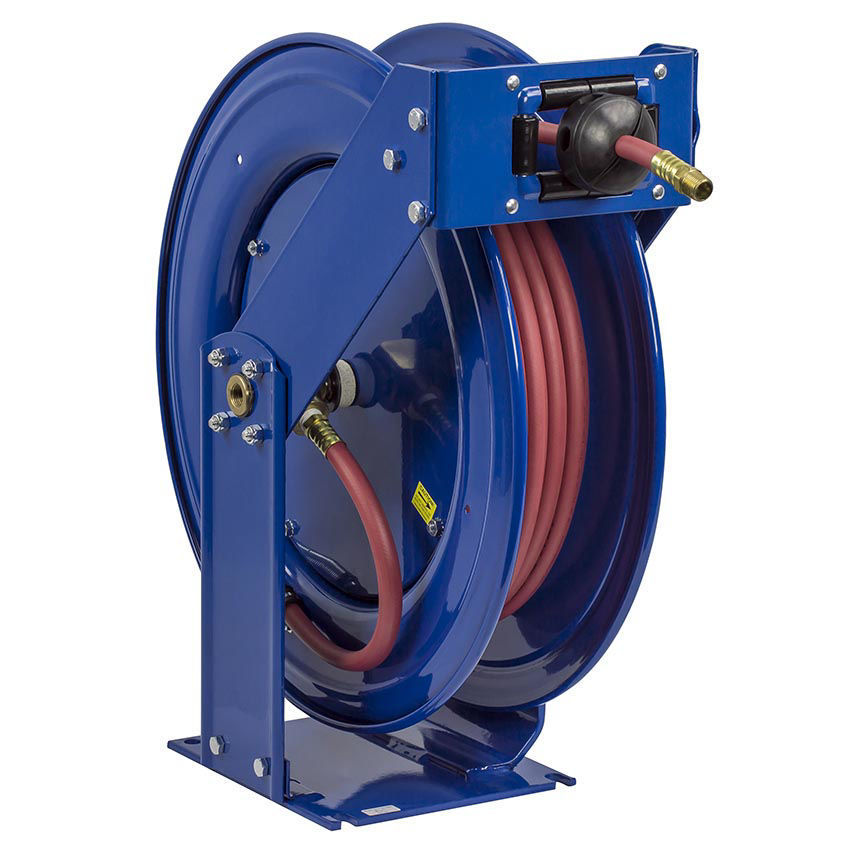

COXREELS TSH-N-375 Supreme Duty Truck Mount Air Compressor Hose Reel with Spring Rewind, .38" x 75’

SKU: TSH-N-375
Part #: TSH-N-375
Old price: $734.00
$559.00
Ship to
*
*
Shipping Method
Name
Price
No shipping options
Manufacturer: COXREELS

COXREELS TSH-N-375 Supreme Duty 3/8" x 75' Truck Mount Air Compressor Hose Reel with Spring Rewind

***MADE IN THE USA***

The COXREELS T Series “Truck Mount” spring driven hose reels are the toughest hose reels on the market. The TSH-N-375 comes complete with a 3/8" x 75' air compressor hose. The T series utilizes an extra large chassis with dual pedestal-style arms and Coxreels' Super Hub™ to provide triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments. This is the highest quality 3/8" x 75' air compressor hose reel on the market.

The swivel design uses a nitrile seal and the external fluid path is machined from solid brass. There is a 90º full flow NPT swivelon the inlet. The Guide arm adjusts to wall, floor, vehicle & overhead positions. Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability. 1" solid steel axle and lubricated precision bearings for smooth rotation. The spring drive retration has an enclosed and factory tuned/matched cartridge style spring motor. The internal spring is non-corrosive and stainless steel with a zinc plated ratchet. The retraction also includes a lock mechanism that will secure the hose at your desired length - you only have to utilize the hose required, rather than having excess hose drag across the ground creating a safety hazard.

Design and Structure

  • Sturdy dual pedestal reel features Coxreels' exclusive Super Hub™ triple axle support system
  • Built for rugged mobile applications
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support posts for maximum strength
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Signature Features - TSH-N-375:

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Fields of application:

  • Air/Water Services
  • Pneumatic Tools
  • Washdown
  • Lubrication
  • Service / Mechanic / Utility Vehicles
  • Chemical Fluid Transfer
  • General Industrial
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations
  • Automotive & Fleet Service Centers

Specifications - TSH-N-375

  • Hose Included? YES
  • Hose Length - 75'
  • I.D. - 3/8"
  • O.D. - 5/8"
  • Maximum PSI - 300
  • Dimensions - 9.38"(W) 25.5"(H) 24"(L)
  • Weight - 82 lbs
