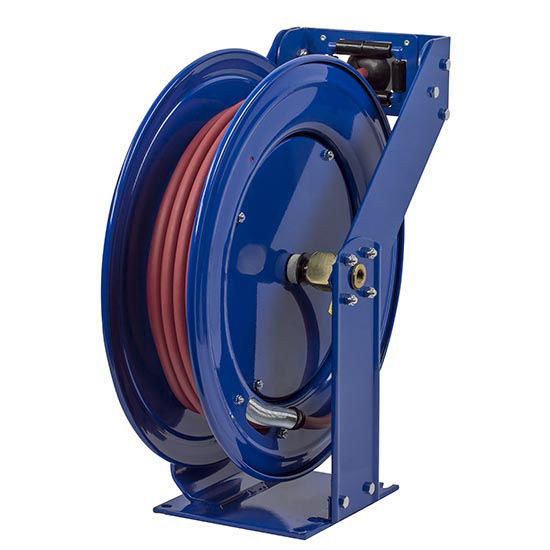

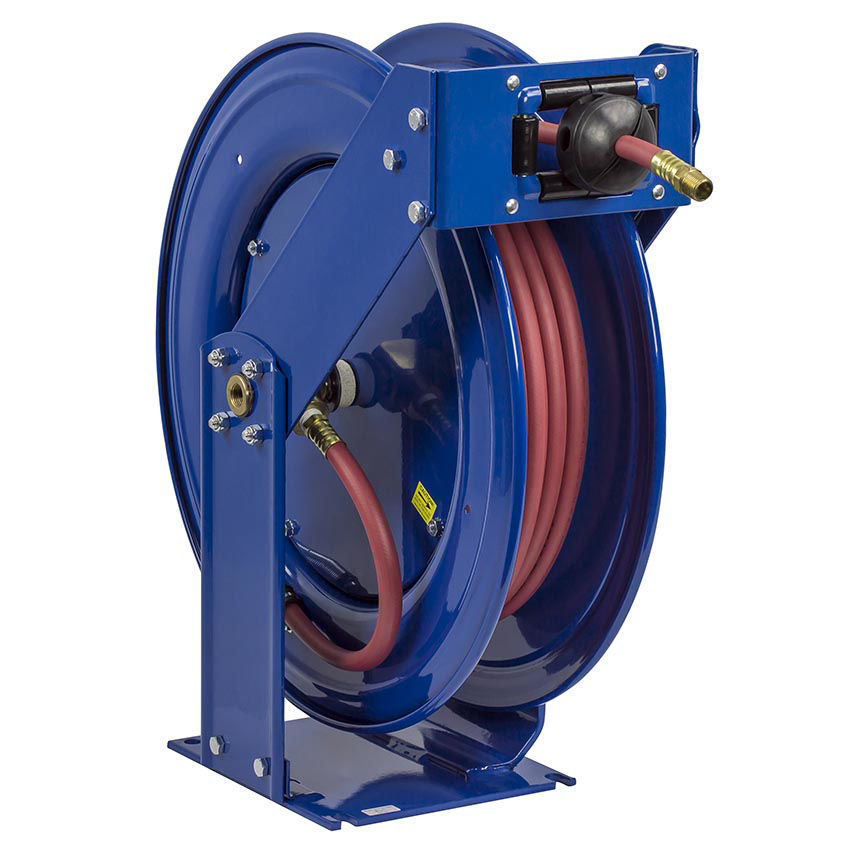

COXREELS TSH-N-450 Supreme Duty Truck Mount Air Compressor Spring Rewind Air Hose Reel, .5" x 50’

COXREELS TSH-N-450 Supreme Duty 1/2" x 50' Truck Mount Air Compressor Hose Reel with Spring Rewind

***MADE IN THE USA***

The COXREELS T Series “Truck Mount” spring driven hose reels are the toughest hose reels on the market. The TSH-N-450 comes complete with a 1/2" x 50' air compressor hose. The T series utilizes an extra large chassis with dual pedestal-style arms and Coxreels' Super Hub™ to provide triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments. This is the highest quality 1/2" x 50' air compressor hose reel on the market.

The swivel design uses a nitrile seal and the external fluid path is machined from solid brass. There is a 90º full flow NPT swivelon the inlet. The Guide arm adjusts to wall, floor, vehicle & overhead positions. Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability. 1" solid steel axle and lubricated precision bearings for smooth rotation. The spring drive retration has an enclosed and factory tuned/matched cartridge style spring motor. The internal spring is non-corrosive and stainless steel with a zinc plated ratchet. The retraction also includes a lock mechanism that will secure the hose at your desired length - you only have to utilize the hose required, rather than having excess hose drag across the ground creating a safety hazard.

Design and Structure

• Sturdy dual pedestal reel features Coxreels' exclusive Super Hub™ triple axle support system
• Built for rugged mobile applications
• Guide arm adjusts to wall, floor, vehicle & overhead positions
• Solid one piece, heavy gauge 1/4" steel base & support posts for maximum strength
• 1" solid steel axle & lubricated precision bearings for smooth rotation

Signature Features - TSH-N-450:

• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

Fields of application:

• Air/Water Services
• Pneumatic Tools
• Washdown
• Lubrication
• Service / Mechanic / Utility Vehicles
• Chemical Fluid Transfer
• General Industrial
• Manufacturing Plants & Facilities
• Maintenance, Repair & Operations
• Automotive & Fleet Service Centers

Specifications - TSH-N-450

• Hose Included? YES
• Hose Length - 50'
• I.D. - 1/2"
• O.D. - 3/4"
• Maximum PSI - 300
• Dimensions - 9.38"(W) 21.25"(H) 19.5"(L)
• Weight - 63 lbs
