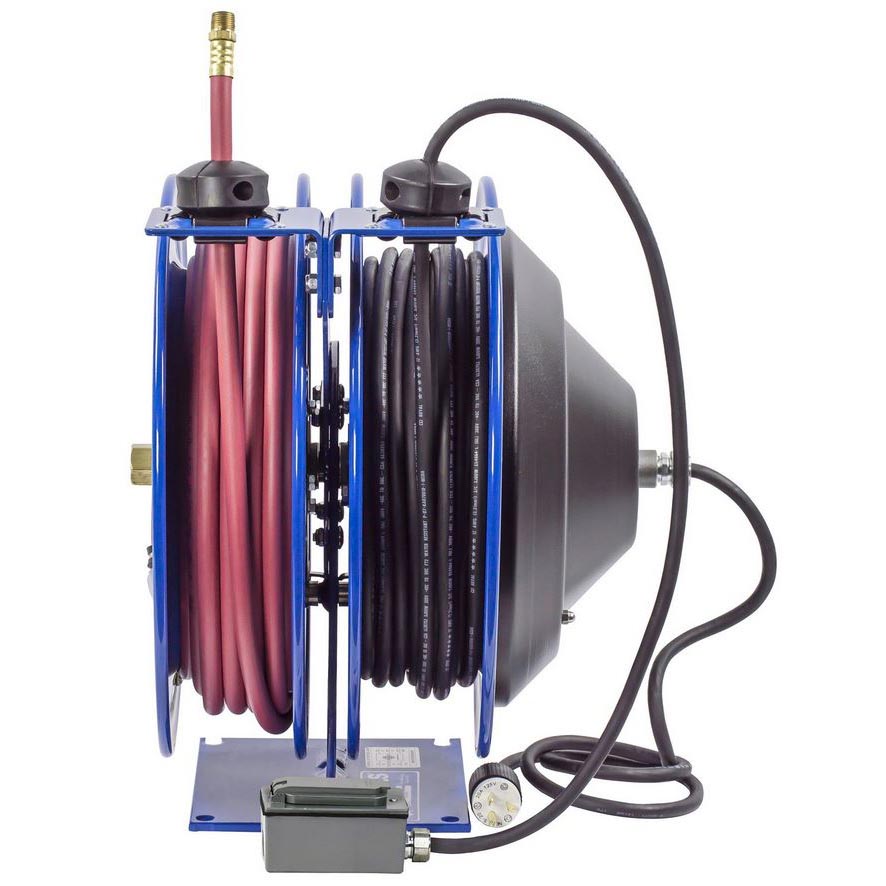

COXREELS C-L350-5012-F Air Hose and Electric Cord Reel: 50' x .38" Air Hose and 50’ x 12 AWG Extension Cord with Duplex Receptacle

COXREELS C-L350-5012-F Combo Reel Air Hose and Electric Cord Reel: 50' x 3/8" I.D. Air Hose and 50' x 12 AWG Extension Cord w/ Duplex Receptacle

***MADE IN THE USA***

COXREELS® C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations. The C-L350-5012-F includes a 3/8" x 50' air hose and a 12 AWG x 50' electric extension cord with duplex outlet.

This hose reel includes COXREELS P Series “Performance” air hose and reel. The compact space-saving size and heavy duty construction makes this air compressor hose holder highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it's worldwide reputation as the most trusted hose reel.

Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All models rated: 115 volts, 3* conductors, 60 hz single phase.

Swivel and Lead Cable:

• External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
• Swivel Seals: NITRILE
• External CPC™ powder coated steel components cover for simple slip ring routine maintenance
• Include 5' lead cable & grounding plug

Design and Structure:

• Compact two reel assembly for air/electric applications, each reel operates independently
• Guide arm adjusts to wall, floor & overhead positions
• Single expanded, 1/4” steel mounting base for increased stability & space efficiency
• One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
• 1” solid steel axle & lubricated precision bearings for smooth rotation

Retraction:

• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures hose/cord at desired length

Signature Features

• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

Possible Fields of Application:

• Air Services
• Pneumatic Tools
• Power Tools
• Light Source
• General Industrial
• Manufacturing Plants & Facilities
• Maintenance, Repair & Operations
• Automotive & Fleet Service Centers

C-L350-5012-F Specifications

• Hose Included? YES
• Hose Length - 50'
• Hose I.D. - 3/8"
• Hose O.D. - 5/8"
• Maximum PSI - 300
• Electric Cord Included? YES
• Cord Length - 50'
• Cord AWG / INDEX - 12 AWG / 3
• Outlet Style - Duplex Industrial Outlet
• Maximum Amp Draw - 20 Amps
• Dimensions - 16"(W) 18.63"(H) 17"(L)
• Weight with hose and Cord - 84 lbs
