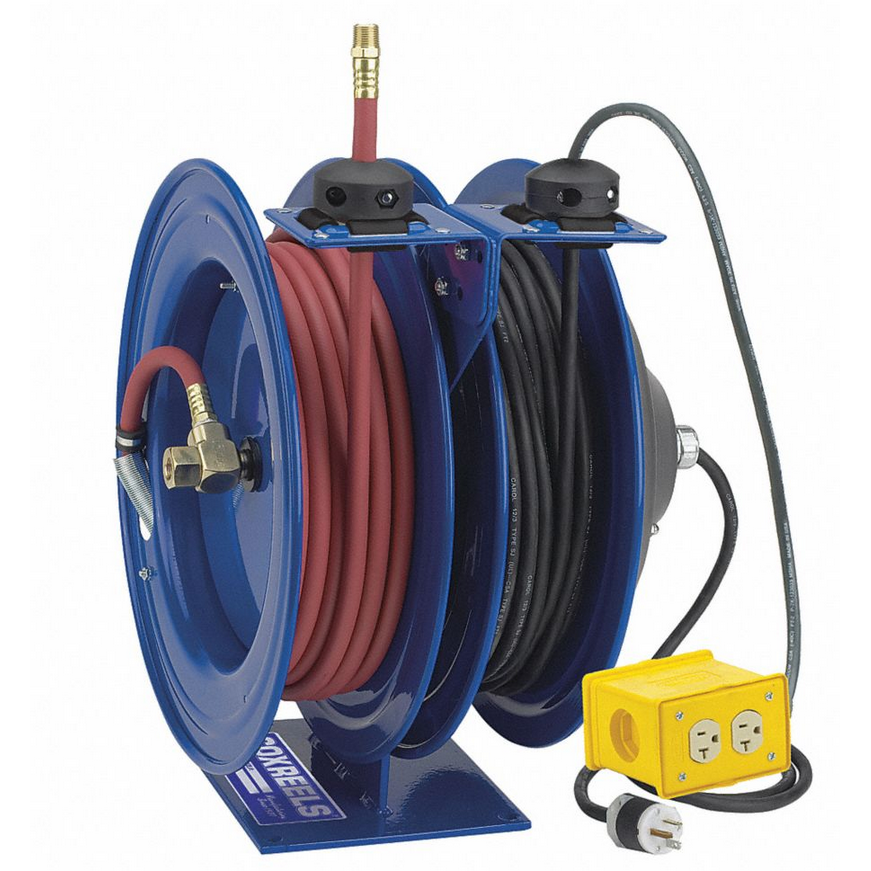

COXREELS C-L350-5012-B Electric/Air Reel, 50' x 3/8" Air Hose, 50’ x 12 AWG Cord with Quad Receptacle

SKU: C-L350-5012-B
Part #: C-L350-5012-B

COXREELS C-L350-5012-B Combo Air Hose and Electric Cord Reel: 50' of 3/8" Hose and 50' x 12 AWG Extension Cord with Quad Outlet


COXREELS® C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations. The C-L350-5012-B includes a 3/8" x 50' air hose and a 12 AWG x 50' electric extension cord with quad 4-way outlet.

This hose reel includes COXREELS P Series “Performance” air hose and reel. The compact space-saving size and heavy duty construction makes this air compressor hose holder highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it's worldwide reputation as the most trusted hose reel.

Coxreels electric and pneumatic hose reels operate as two independent, self-retracting 50 foot trouble-free assemblies. All models rated: 115 volts, 3* conductors, 60 hz single phase.

Swivel and Lead Cable:

  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
  • Swivel Seals: NITRILE
  • External CPC™ powder coated steel components cover for simple slip ring routine maintenance
  • Include 5' lead cable & grounding plug

Design and Structure:

  • Compact two reel assembly for air/electric applications, each reel operates independently
  • Guide arm adjusts to wall, floor & overhead positions
  • Single expanded, 1/4” steel mounting base for increased stability & space efficiency
  • One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
  • 1” solid steel axle & lubricated precision bearings for smooth rotation


  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose/cord at desired length

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Possible Fields of Application:

  • Air Services
  • Pneumatic Tools
  • Power Tools
  • Light Source
  • General Industrial
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations
  • Automotive & Fleet Service Centers

C-L350-5012-A Specifications

  • Hose Included? YES
  • Hose Length - 50'
  • Hose I.D. - 3/8"
  • Hose O.D. - 5/8"
  • Maximum PSI - 300
  • Electric Cord Included? YES
  • Cord Length - 50'
  • Cord AWG / INDEX - 12 AWG / 3
  • Maximum Amp Draw - 20 Amps
  • Dimensions - 16"(W) 18.63"(H) 17"(L)
  • Weight with hose and Cord - 86 lbs
