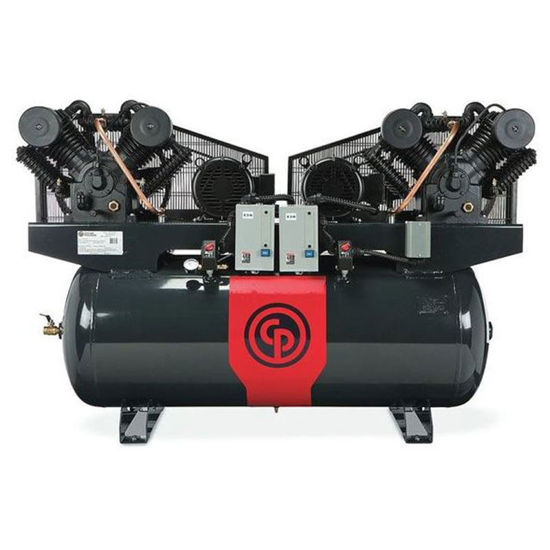

Chicago Pneumatic RCP-C20123D4 Duplex 20HP, 3PH, 460v, 120 Gallon Air Compressor

Part #: RCP-C20123D4
$7,323.00
$5,492.25

Call To Order

Chicago Pneumatic RCP-C20123D4 Duplex 20hp (10HP x 2), 460v/3/60hz, 120 Gallon Horizontal Air Compressor, 70cfm @ 175psi

The Chicago Pneumatic RCP-C20123D4 compressor is a duplex air compressor that utilizes two 10hp compressor pumps to provide 20hp total. This duplex piston compressor features two all cast iron V-shape reciprocating compressor pumps and two 10hp industrial grade motors. This unit includes a pre-wired and installed alternator, which will alternate which pump starts to equalize run hours. They are also setup to run in a lead/lag configuration, so when one pump is running and additional air is needed the second pump will turn on automatically for supplemental air.

Each piston pump utilized on this compressor is built to last and has a finned discharge tube for cooler temperatures, tapered roller bearings, and automotive style wrist pins for increased lifespan. Inside of the pump, disc and spring valves are utilized rather than reed or finger valves. Disc valves are more reliable and can be changed without pulling the pump apart. The C2 pumps V shape design along with 4 slower pistons provides added cooling and longevity.

The Chicago Pneumatic RCP-C10123D4 provides 20hp worth of air in a three phase power configuration. This model is mounted on a 120 gallon horizontal air receiver. The compressor comes "plug and play" and is pre-filled with oil. Simply connect your electrical power and discharge piping. This Chicago Pneumatic compressor is part of their "Iron Series" product line featuring an all cast iron pump with a 2 Year CP Secure Warranty with no additional purchase required.

Standard Features

  • Mounted, wired, and tested magnetic motor starter
  • Two high quality Baldor motors – three phase, 460v
  • Installed alternator and lead/lag configuration
  • Disc and spring valves – longer lasting than reed valves.
  • Cast iron two stage pump intercooler
  • 120 gallon horizontal air receiver, ASME certified
  • Solid cast iron head and cylinders
Products specifications
Horse Power 20
Max Pressure (PSI) 175
CFM @ 100 PSI 70
Air Connection 3/4" NPT
Configuration Horizontal
Tank Size 120 Gallons
Voltage 460v/60hz
Phase Three
Weight 1395 LB
Dimensions 81" x 27" x 52"
