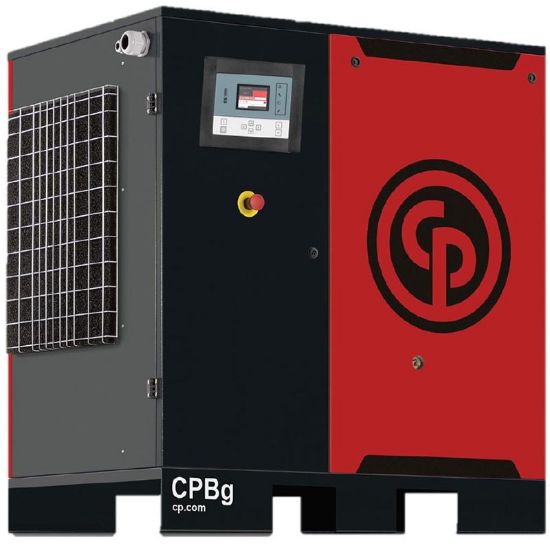

Chicago Pneumatic CPBg 25D BM 25hp Rotary Screw Air Compressor with Air Dryer, 113.1cfm, 125psi

Part #: CPBg 25D BM
Free shipping (Excludes Hawaii & Alaska)

Chicago Pneumatic CPBg 25D BM 25hp Rotary Screw Air Compressor with Air Dryer, 113.1cfm, 125psi

The Chicago Pneumatic CPBg 25D BM is an industrial grade 25hp rotary screw air compressor with integrated refrigerated air dryer. This model is designed to displace up to 113.1cfm @ 125psi and is baseplate mounted without a receiver tank. This tri-voltage model can run on 208v, 230v or 460v 3 phase power. The internal Chicago Pneumatic part number for this air compressor is 4152030645. This specific 25hp rotary screw compressor is a base mount model and can be paired with a separate receiver tank or refrigerated air dryer. The integrated refrigerated air dryer is pre-plumbed and will remove moisture from the compressed air before sending it downstream. The CPBg compressor is designed for 100% continuous duty and can support the most demanding air requirements. This means it can run 100% loaded 24 hours a day.

Chicago Pneumatic sets a new standard in high efficiency, low noise level, and outstanding reliability with the new CPBg 20 - 34 range. The CPBG25 comes with a new element, a high-performance gearbox, and premium efficiency motors. The wide range of options allows you to easily customize your CPBg, while its unique design satisfies your needs in terms of user-friendliness, reliability and lifetime duration. All in all, it is the ideal screw compressor for high energy efficiency and hard working conditions.

The motor is a tri voltage totally enclosed fan cooled (TEFC) motor. This makes for extremely simple installations for buildings that have a three phase power supply. The compressor is pre-shipped wired 230/3/60hz power, but can be easily changed over to 460v or 208v three phase. Since the motor is totally enclosed, this results in less debris being pulled into the bearings and windings for a longer life. Note the air dryer will require a separate 115v power installation.

Quality Air Package Included – The CPBG 25D includes an integrated refrigerated air dryer pre-installed and plumbed with the compressor package. This eliminates the need for a separate air dryer saving on installation cost and floorspace.

Low Noise Levels - The new element (airend) and gearbox combined with the deep sound insulation result in very low sound levels

Easy & Fast Maintenance - Easy maintenance and very low pressure drop thanks to the new oil separation method, large hinged doors and removable panels. Oil sight glass hole is located in panel for easy view of oil level.

Smart Monitoring & Control - The unique ES4000 Advanced control unit is specially programmed for energy savings

Intelligent Savings - The CPBg 25D BM air compressor is managed by the ES4000 Advanced controller. This electronic control unit is programmed for energy saving operation with intelligent shutdown. The ES4000 Advanced control can be programmed to shutdown in accordance with your plant air demand and reduce long periods of unloaded operation, reducing power cost. The ES4000 Advanced control feature can save a customer hundreds of dollars per year.

Features and Benefits – CPBG 25D BM

  • Integrated refrigerated air dryer
  • Low sound enclosure and pre-filtration panel with foam
  • Rapid, single-panel maintenance
  • Wye-delta, reduced voltage start
  • ES4000 advanced microprocessor control
  • Tri-voltage 208-230-460 motor
  • Independent oil and air aftercoolers
  • Temperature protection on drive side motor bearings
  • Improved long life inlet valve
California Residents: Prop 65 WARNINGS
Products specifications
Voltage208/230/460 / Tri Voltage
Drive StyleGear Drive
Sound Level69dBA
Duty Cycle100% Continuous Duty
Horse Power25
Max Pressure (PSI)125
CFM @ 125 PSI113.1
ConfigurationBasemount (tankless)
Integrated DryerYes
Dryer Power115/1/60hz
Weight1124 LBS
Dimensions53.2 x 33 x 48"H
Connection Size1" NPT
