Chicago Pneumatic and Belair 1312100388 OEM 2hp Motor, 115-230v 1phase, 3450rpm, RCP-220

Chicago Pneumatic and Belair 1312100388 OEM 2hp Motor, 115-230v 1phase, 3450rpm, RCP-220

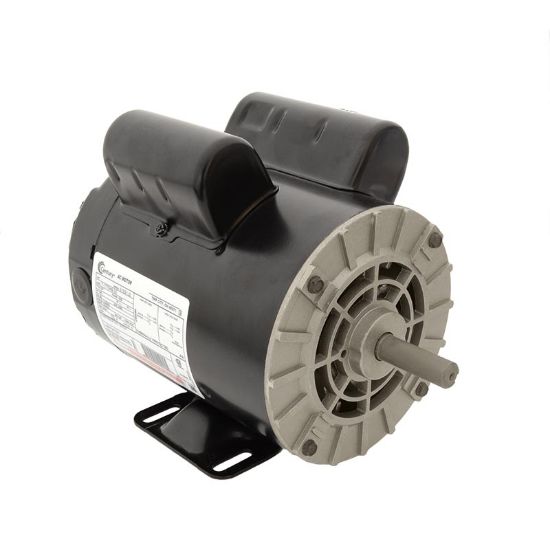

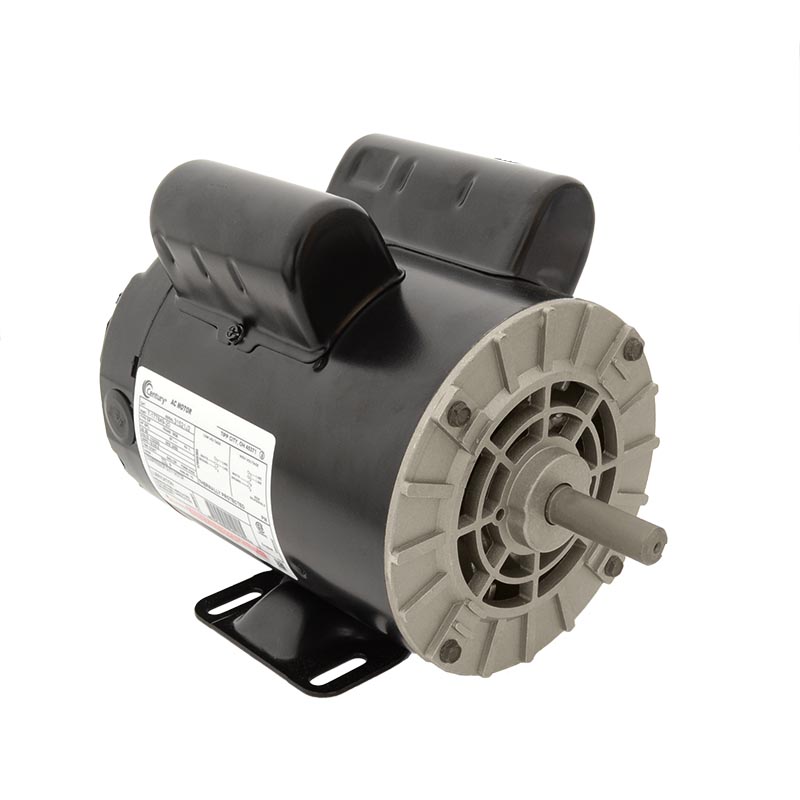

The 1312100388 drive motor is a 2hp motor that was primarily used on the Chicago Pneumatic RCP-220P and RCP-226VP piston air compressors. This is an OEM motor manufactured by Century. These compressors were the largest 115v single stage compressor that were manufactured by CP. There is an internal thermal protection pre-installed on the motor so no magnetic motor starter is required.

This motor was also commonly used by Atlas Copco, Belair and Quincy.

Technical Specifications:

• 2HP
• 3450 RPM
• 15 Amps
• Dual Voltage - 115/230v /60hz

Used on the following air compressors.

• RCP-220P*
• RCP-226VP*
• RCP-2030
• Belair T2030
• BelAir 5020P
• BelAir 5026VP
• BelAir 2061V
