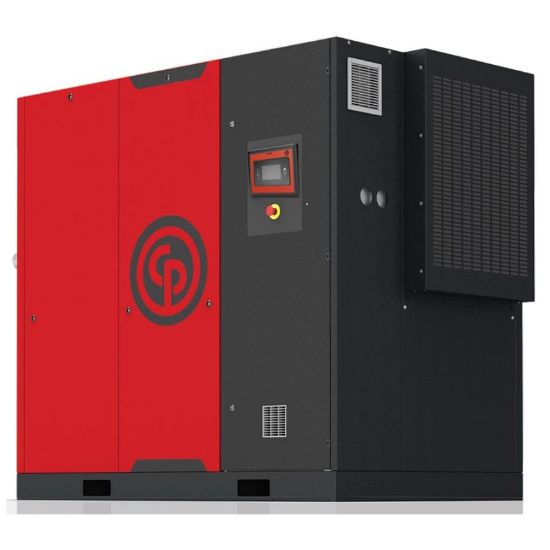

Chicago Pneumatic 75hp VSD Compressor CPV 75VS PM, 387cfm, Direct Drive Permanent Magnet Motor

$77,734.00
$57,995.00
SKU: CPV 75VS PM
Part #: CPV 75VS PM
Free shipping
Excludes Hawaii & Alaska
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Chicago Pneumatic 75hp VSD Compressor CPV 75VS PM, 387cfm, Direct Drive Permanent Magnet Motor

The Chicago Pneumatic CPV 75VS PM is a 75hp direct drive variable speed rotary screw air compressor. This compressor is rated to displace a maximum of 387cfm and will regulate its air output between 60-387cfm depending on your plants production. This model operates on 460v power. The new range offers you excellent performance, plug-and-play installation and the reliability you can expect from the Chicago Pneumatic brand. The advanced connectivity adds intelligence to your compressor, allowing you to decrease operating costs further while increasing productivity

New and Updated Features CPV 75VS PM:

  • ES4000T Touch microprocessor controller: An intuitive and easy-to-operate control system gives you an insight into the performance of your compressed air system – remotely and at any given moment. Controls the unit by maintaining the pressure between programmable limits. Protects the unit thanks to the programmed shutdown warnings. Maintains the unit thanks to our programmed service time interval meter, informing the customer when service is due.
    • Big, easy to use 4” touch control with a simplified lay-out.
    • The compressor is protected with sensors to immediately alert you when something is wrong
    • Clear overview of all parameters and service intervals
    • Plan maintenance interventions at the right time, guarantee system uptime and eliminate breakdown risks
  • Newly designed airend: The in-house designed compression element, combined with an IE4 efficiency motor, comes with increased performance, lower compression temperature and high reliability. The Free Air Delivery is increased up to +4% and power consumption is reduced by up to -3% thanks to the improved product selection and our in-house designed compressor element. Fit for environments with ambient temperatures of up to 46°C due to superior component design.
  • Easy installation and service: Effortless maintenance thanks to the easily removable panels and quick access to all service parts.
  • Generous and smart cooling system: Bigger air oil coolers have been selected, resulting in a high cooling capacity, maximum cooling efficiency and increased reliability. The large fan  provides forced ventilation and conveyed flows, improving the air flow and reducing operating temperature for enhanced reliability.
  • A big leap in energy efficiency: Energy costs represent about 70% of the total operating cost of your compressor over a 5-year period. Imperium variable speed technology
    combined with iPM motor technology and evolved the energy efficiency of variable speed compressors to a new level, resulting in energy savings of up to 45%.

Continuous investment in product development has resulted in Chicago Pneumatics most innovative and energy efficient VSD compressor to date. A groundbreaking drive train coupled with our Imperium inverter has pushed energy effi ciency to the next level, bringing energy savings of up to 45%. Designed with the customer in mind, the CPVS PM range delivers premium performance at a minimal energy cost. With the CPV 75VS PM, reliable productivity becomes a given. Maintenance-free components enable higher uptime and consumables with a long lifetime ensure low total cost of ownership. Last but not least, this range offers you peace of mind, packaged in a proven canopy design with already thousands of installations around the globe. The internal Chicago Pneumatic part number for this compressor is 8153339769.



Products specifications
Duty Cycle 100% Continuous Duty
Voltage Frequency 60Hz
Phase Three, Three
Voltage 460/3/60hz
Connection Size 2.5" NPT
Sound Level 70dBA
Configuration Basemount (tankless)
CFM Range 300-499
Drive Style Variable Speed Drive / VSD
CFM @ 103 PSI 387
Availability Ships From Manufacturer
Horse Power 75
Max Pressure (PSI) 188
Dimensions 74" x 48" x 71"H
Weight 2881 lbs
