Chicago Pneumatic 3HP Rotary Screw Air Compressor, 230v 1ph, Base Mount, 9.8 CFM @ 145PSI, QRS 3.0 HP-1 BM

SKU: QRS 3.0 HP-1 BM
Part #: QRS 3.0 HP-1 BM
Free shipping
Excludes Hawaii & Alaska
Ship to
Shipping Method
Estimated Delivery
No shipping options

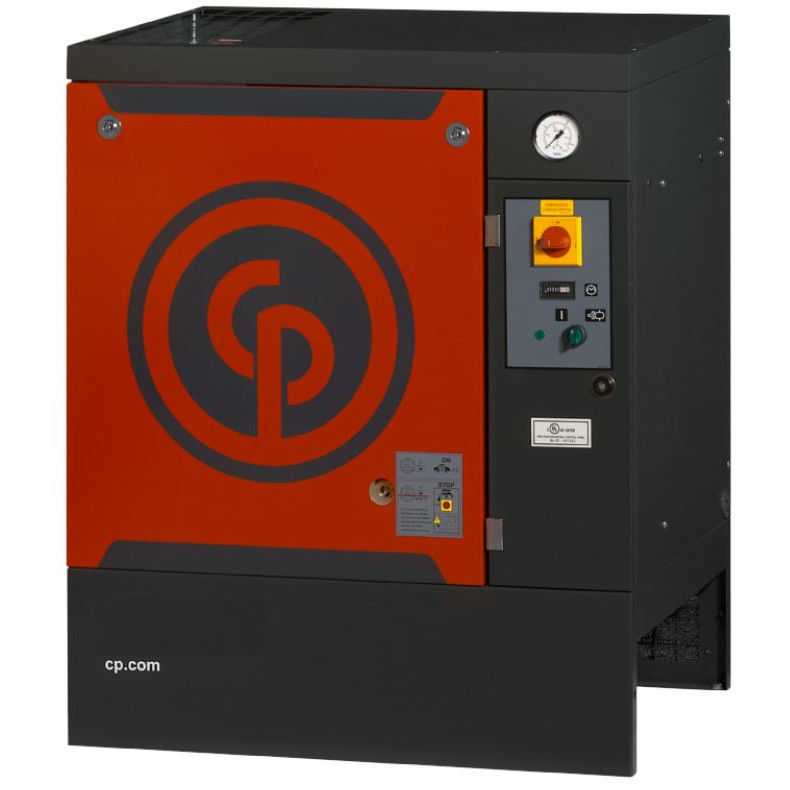

Chicago Pneumatic QRS 3.0 HP-1 BM 3 HP Rotary Screw Air Compressor, Single Phase 230v, Basemount

The Chicago Pneumatic QRS 3.0 HP-1 BM is a 3hp rotary screw compressor designed to displace 9.8cfm @ 145psi. This model is baseplate mounted and can be tied into a separate storage receiver tank.  The QRS3.0 operates on 230v single phase power.

Engineered for high performance, efficiency and reliability. This compressor is designed to run 24/7/365 if needed and is powered by a single phase 230v main drive motor. The amp draw is low enought that this can often be placed in a residential garage. Need a quiet rotary screw compressor that can run all day long? The QRS3.0 is a great option. This compressor is a baseplate design and is not mounted on an air receiver tank. This compressor is designed to be tied into a separate air tank at your facility.

The QRS 3.0 was built to be installed and used right where you need it: on your shop floor. This compressor has a sound level as low as 61 dB(A) and is comparable to a household appliance.

The QRS 3.0 is manufactured with service and maintenance ease in mind. The removable panels make service parts easily accessible and the oil filters are both spin on style automotive filters, making it easy for the Average Joe to perform work themselves.

The Chicago Pneumatic model number for this rotary screw compressor is QRS 3.0 HP-1 BM and the internal manufacturer number is 4152054793.

Standard Features

  • Low sound and dust protection enclosure
  • 145 psig Standard
  • Continuous operating capability, can be ran 24/7
  • Single phase 230v main drive motor
  • UL and UL-C Approved Control Panel
Products specifications
CFM @ 145 PSI 9.8
Tank Size No Tank
Sound Level 61dBA
Horse Power 3
Max Pressure (PSI) 150
Voltage 230/1/60
Phase Single
Configuration Basemount (tankless)
Dimensions 24.4L x 24.8W x 37.4H
Weight 276 lbs
