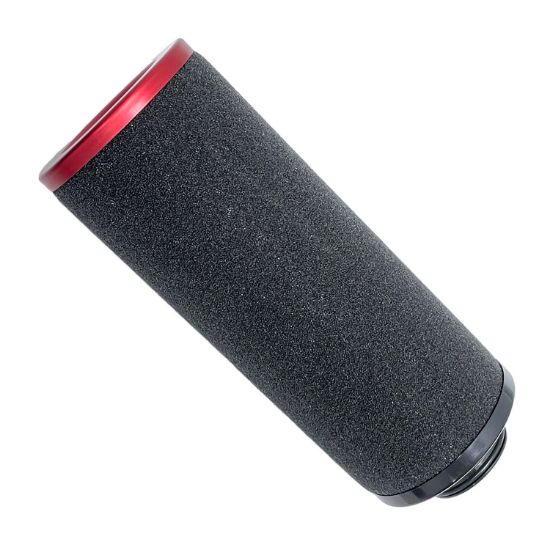

Chicago Pneumatic .01 micron 105 CFM Inline Replacement Coalescing Filter Element

SKU: 2258 2932 04
Part #: 2258 2932 04
Availability: Low Stock
$78.85
Ship to
*
*
Shipping Method
Name
Price
No shipping options

Chicago Pneumatic / Pneumatech / Quincy .01 micron 105 CFM Inline Replacement Coalescing Filter Element 2258 2932 04

2258 2932 04 is a replacement coalescing oil removal inline filter element for the Chicago Pneumatic 75cfm filter housing. This part number is sometimes listed as 2258293204 or 2258-2932-04

The actual part number stamped on the bottom of your old filter element may be shown as 1629 054 04. If so, purchasing 2258 2932 04 is the correct item. Your housing may also state to use element replacement kit part # 2258 2901 26. 2258290126 supersedes to this item number 2258 2931 03.

This element will work with the follow air filter housings with 3/8" NPT threads:

  • Chicago Pneumatic C 105 with housing numbers 8102 8530 85 and 8102 8530 93
  • Chicago Pneumatic D 105 with housing numbers 8102 8532 18 and 8102 8532 26
  • Quincy QCF 100 with housing numbers 8102 8468 81 and 8102 8468 99
  • Pneumatech TF PF 4 C HE with housing numbers 8102 8265 60 and 8102 8281 29
  • Pneumatech TF PF 4 C S with housing numbers 8102 8265 78 and 8102 8281 37
  • Pneumatech TF PF 4 D HE with housing numbers 8102 8266 93 and 8102 8282 51
  • Pneumatech TF PF 4 D S with housing numbers 8102 8267 01 and 8102 8282 69

This item includes the internal replacement element with o-rings on the stem, an additional drain o-ring, and a replacement o-ring that goes around the filter housing to create a leak free seal. The factory recommends changing this filter out a minimum of once per year or every 4,000 operating hours, whichever occurs first. Replacing the element will ensure all dust is removed down to .01 micron and all oil is removed down to .01 ppm (parts per million). By proactively changing the internal element, you will decrease the pressure drop going across the filter, therefore increasing your energy efficiency.

This is an OEM part made by Chicago Pneumatic and Pneumatech. This filter element was also used on several Atlas Copco and Quincy products. Please contact our parts department if you would like verification on which item is correct for your filter.
