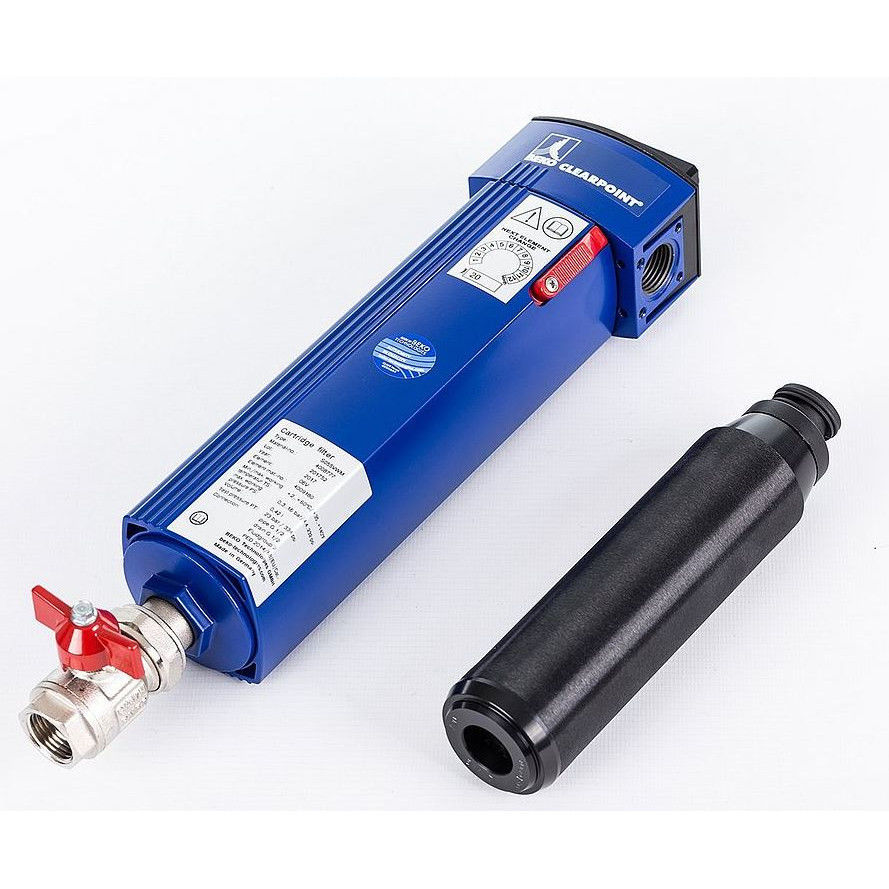

BEKO S055 CLEARPOINT Activated Carbon Oil Removal Filter, 29cfm - 4013174

The CLEARPOINT® V activated carbon adsorber is the ideal solution for top quality compressed air with a residual oil content of 0.003 mg/m³. The CLEARPOINT® V S055 activated carbon adsorber is not only extremely efficient and reliable, but also very cost-effective. It has become an indispensable component in compressed air processing plants. Advanced overall design for outstanding performance. An activated carbon filter removes much more oil vapors than a standard coalescing oil filter.

The activated carbon filters with cartridge are exclusively used to separate residual oil contents in steam and aerosol form from compressed air and nitrogen in pressurised systems. With the CLEARPOINT® V activated carbon filter with cartridge, the flow through the filter element is from top to bottom: The compressed gas enters from above through a small filter element that separates coarse particles. Compressed gas flows from above into the inner area of the cartridge and from there through the cartridge into the vessel. The activated carbon in the adsorption material adsorbs oil vapours and odours.

The S055 activated carbon filter is rated to handle a maximum CFM flow of 29cfm. The inlet.outlet connections are 1/2" NPT. The dimensions are 2.95" W x 10.43" T

In order to ensure high compressed air quality with compressed air class 1-2 in accordance with ISO 8573-1, in particular with regard to the residual oil content, the CLEARPOINT V activated-carbon adsorber is the effective and reliable technical component in demanding system designs.The consistent overall concept guarantees compressed air quality with a minimum residual oil content extremely cost-efficiently. Oil vapours and odours are adsorbed on the unusually large active surface of the compression-moulded activated carbon pellets. When selecting our activated carbon, we work together with selected suppliers who guarantee consistent carbon quality. A major advantage for your compressed air quality and process reliability.

A refrigerated air dryer and coalescing filter need to be installed prior to the activated carbon filter.

Features and Benefits - BEKO S055

  • Virtually oil-free air downstream
  • Highly efficient adsorption with minimum residual oil content
  • Significantly higher service lives than conventional activated carbon filter elements
  • Service-friendly with easy to exchange cartridge
  • Conventional testing technology can easily be adapted
