BEKO 3000 CFM Variable Speed Drive Refrigerated Air Dryer, RA VSD 3000, 460v 3ph

Ships From Manufacturer
SKU: RA VSD 3000
Part #: RA VSD 3000
Call to order 866-208-2797

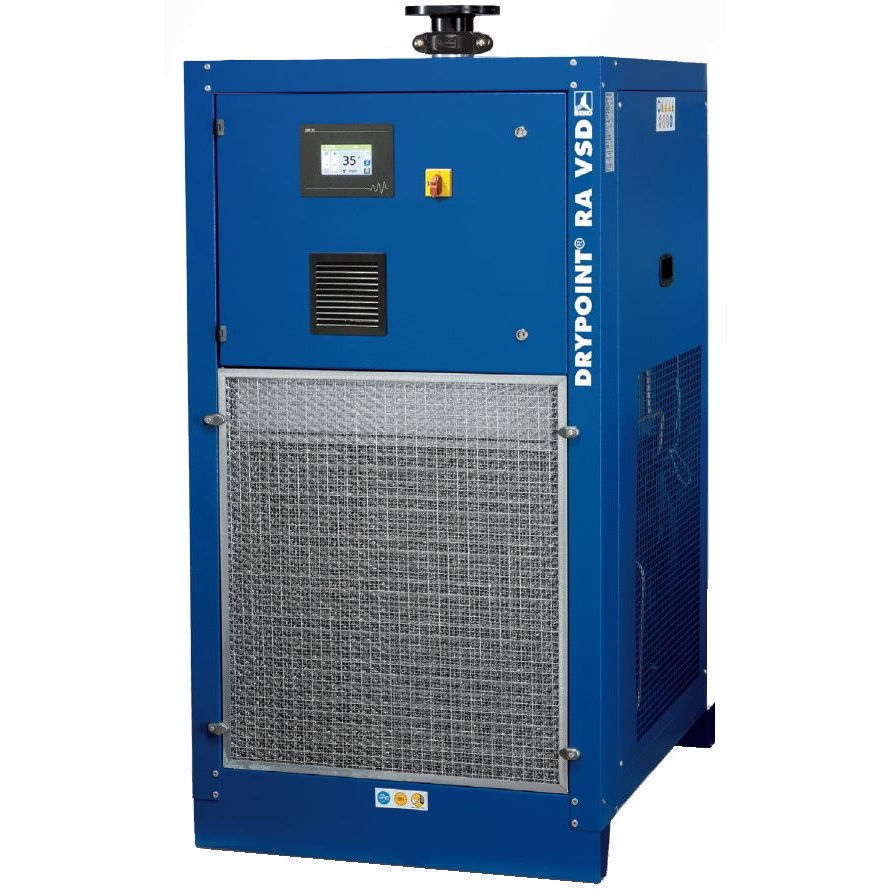

BEKO RA VSD 3000 - 3000 CFM Variable Speed Drive Refrigerated Air Dryer, 460v/3ph

Providing your plant with clean dry compressed air while savings on energy costs has never been easier with the BEKO RA VSD 3000 air dryer. Utilizing unique variable speed technology the VSD series ensures that maximum energy savings are realized, without moisture getting into your air lines. The dryer provides a stable dew point, is easy to use, and includes BEKO’s efficient BEKOMAT no-loss drain valve.

Demand on a compressed air system is often varied, the DRYPOINT® RA VSD intelligent controller monitors the incoming conditions and adjusts the compressor and condenser fan speed to the required cooling capacity of the refrigerant system. This saves energy, and over the life of the dryer operating costs decrease.

The BEKO RA VSD 3000 refrigerated air dryer with variable speed drive technology includes the DMC50 microprocessor controller. This simple to use yet intuitive controller provides a dialogue interface for the operator. The operator can use the touch screen display to manage operating functions, view alerts/faults (service), and set dryer process parameters and more.

Compared to traditional cycling air dryers, a variable speed drive refrigerated air dryer provides significantly increased energy savings and a much more stable dew point. BEKO’s VSD dryer line provides clean dry air downstream, while saving on energy cost and reducing your plants carbon footprint.

The RA 3000 VSD refrigerated air dryer is capable of handling up to 3000cfm of compressed air at 100psi.

This air dryer is pre-wired in 460v main power and available in an air cooled and water-cooled variation. The internal factory part number for the air cooled model is 4028409 and the water cooled version is 4043496.

Please contact us for help in tailoring a compressed air treatment system customized for your facility.

BEKO RA3000VSD Standard Features

  • Maximized energy savings with variable speed drive technology
  • DMC 50 advanced microprocessor controller
  • Variable compressor and fan operation provides a stable dew point
  • Integrated BEKOMAT energy efficient no-loss drain valve
  • MODBUS ready for tying into a plant operating system
  • Service and warning alarms
  • Enviromentally friendly refrigerant


Products specifications
Max Pressure (PSI) 203
Voltage 460/3/60hz
Voltage Frequency 60Hz
Drain Type No-Loss Automatic Drain
Refrigerant R407C
Connection Size 6" ANSI Flange
Dimensions 71" x 51" x 69"
Weight 1850 lbs
CFM @ 100 PSI 3000
Phase Three
CFM Range 1000+
