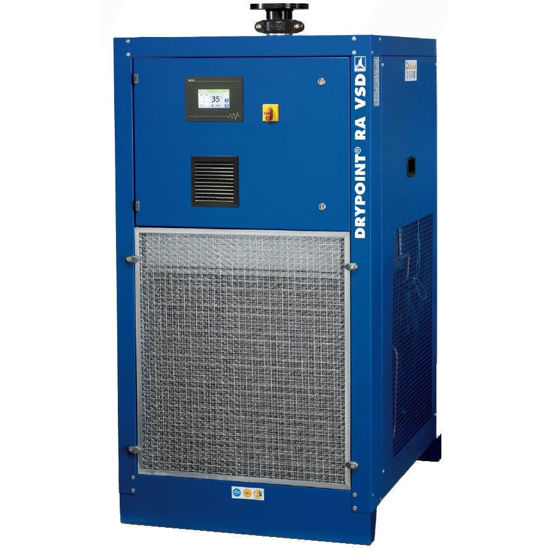

BEKO 2500 CFM Variable Speed Drive Refrigerated Air Dryer, RA VSD 2500, 460v 3ph

Providing your plant with clean dry compressed air while savings on energy costs has never been easier with the BEKO RA VSD 2500 air dryer. Utilizing unique variable speed technology the VSD series ensures that maximum energy savings are realized, without moisture getting into your air lines. The dryer provides a stable dew point, is easy to use, and includes BEKO’s efficient BEKOMAT no-loss drain valve.

Demand on a compressed air system is often varied, the DRYPOINT® RA VSD intelligent controller monitors the incoming conditions and adjusts the compressor and condenser fan speed to the required cooling capacity of the refrigerant system. This saves energy, and over the life of the dryer operating costs decrease.

The BEKO RA VSD 2500 refrigerated air dryer with variable speed drive technology includes the DMC50 microprocessor controller. This simple to use yet intuitive controller provides a dialogue interface for the operator. The operator can use the touch screen display to manage operating functions, view alerts/faults (service), and set dryer process parameters and more.

Compared to traditional cycling air dryers, a variable speed drive refrigerated air dryer provides significantly increased energy savings and a much more stable dew point. BEKO’s VSD dryer line provides clean dry air downstream, while saving on energy cost and reducing your plants carbon footprint.

The RA 2500 VSD refrigerated air dryer is capable of handling up to 2500cfm of compressed air at 100psi. A 2500 cfm refrigerated air dryer is commonly paired with a 400+hp rotary screw air compressor.

This air dryer is pre-wired in 460v main power and available in an air cooled and water-cooled variation. The internal factory part number for the air cooled model is 4028408 and the water cooled version is 4043495.

Please contact us for help in tailoring a compressed air treatment system customized for your facility.
