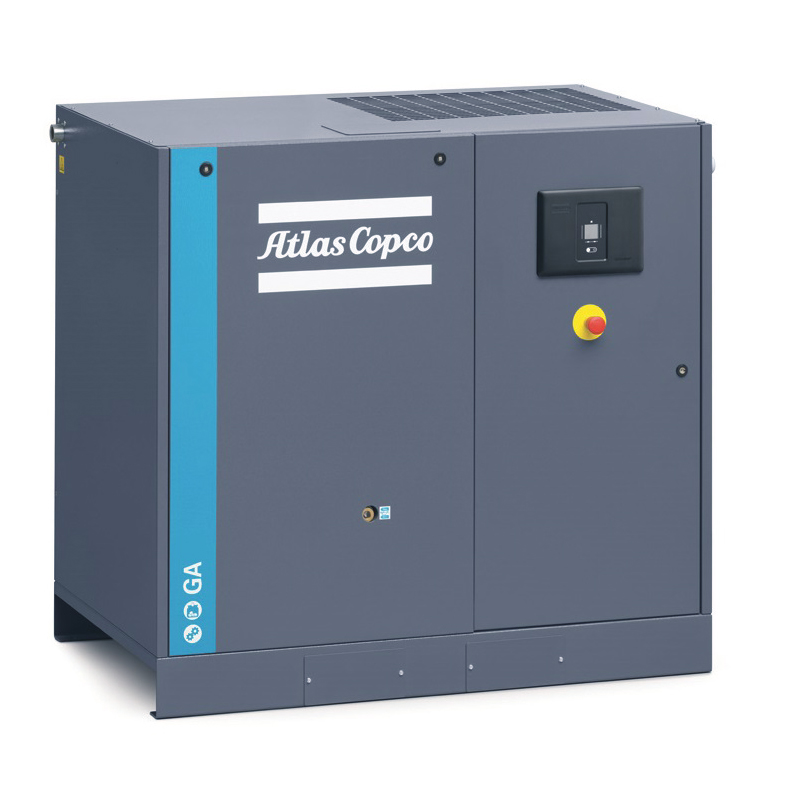

Atlas Copco GA15P-125 FM 20hp Rotary Screw Compressor, No Tank, 92cfm 8153653897

Atlas Copco GA15P-125 FM 20hp Rotary Screw Compressor, No Tank, 92cfm 8153653897

The Atlas Copco GA15P-125 FM is a 20 HP industrial grade gear driven rotary screw air compressor. The GA15P displaces 92cfm at 125psi. This is a Frame Mount compressor that does not include a receiver tank.. The baseplate / frame mount design makes it a strong fit for operations that already have downstream air receivers in place or want the flexibility to customize tank options separately.

The GA15 is a gear driven compressor. The high-quality gear driven design does not use couplings which eliminates service needs and reduces transmission losses. Atlas Copco's state of the art airend design produces more CFM than traditional 20hp rotary screw compressors. The non-belt design also eliminates belts from slipping or needing to be replaced.

The reliable and efficient design of the cooler effectively lowers the discharge temperature of the compressed air. This reduces the burden placed on downstream air treatment equipment and provides better protection of the piping system. The low sound and low power consumption from the cooling fan makes these new units even more silent and efficient than ever.

At just 65 dB(A), it is quiet enough for installation much closer to the point of use, helping reduce piping runs and improve workspace flexibility. The result is a compressor that is easy to install, easy to service, and built to deliver efficient compressed air with lower total cost of ownership.

The GA15-125 offers a strong combination of performance and usability for buyers needing a quiet and space saving rotary screw air compressor for shops, manufacturing, automotive service, packaging, or general plant air.

Elektronikon Touch Microprocessor Controller

The GA15P 20HP rotary screw compressor includes an Elektronikon Touch controller. The Touch controller features a 4.3-inch high-definition color display, clear service indicators, scheduling capability, Ethernet-based visualization, and remote connectivity functions. Combined with SMARTLINK remote monitoring, it gives users better visibility into compressor status, service timing, and operating efficiency, which is especially valuable for small plants and busy service shops trying to minimize downtime.

• 4.3-inch high-definition color display makes compressor status, settings, and alarms easier to read at a glance.
• Clear pictograms and service indicator helps operators quickly understand machine condition and upcoming maintenance needs.
• User-friendly multilingual interface improves ease of use for a wider range of operators and facilities.
• Four different week schedules for 10 consecutive weeks allows users to match compressor operation to plant hours and reduce runtime.
• Ethernet-based compressor visualization makes it easier to monitor machine performance through a network connection.
• Remote control & connectivity functions gives flexibility in managing compressor performance and status without being directly at the machine.
• SMARTLINK remote monitoring givesaccess to alerts, maintenance follow-up, machine health, and efficiency insights from a computer or mobile device.

Key Features & Benefits: Atlas Copco GA15P-125 20HP Frame Mount Air Compressor 8153653897

• 20 HP rotary screw compressor delivers industrial-duty compressed air for production, service, and facility air systems.
• 92 CFM at 125 PSI provides strong airflow for many multi-tool, multi-user, and continuous-use applications.
• Baseplate mounted without a receiver tank
• Gear-driven transmission eliminates couplings as a maintenance point and reduces transmission losses typically seen in belt-driven compressors.
• IE3 / NEMA Premium efficiency motor supports reduced energy consumption and dependable long-term operation.
• High-efficiency aftercooler and moisture separator helps lower discharge temperatures and remove moisture before air enters your system.
• Low-noise enclosed canopy helps create a quieter workspace and can reduce the need for a separate compressor room in some installations.
• 100% continuous duty built for demanding industrial applications where reliable day-to-day performance matters.
