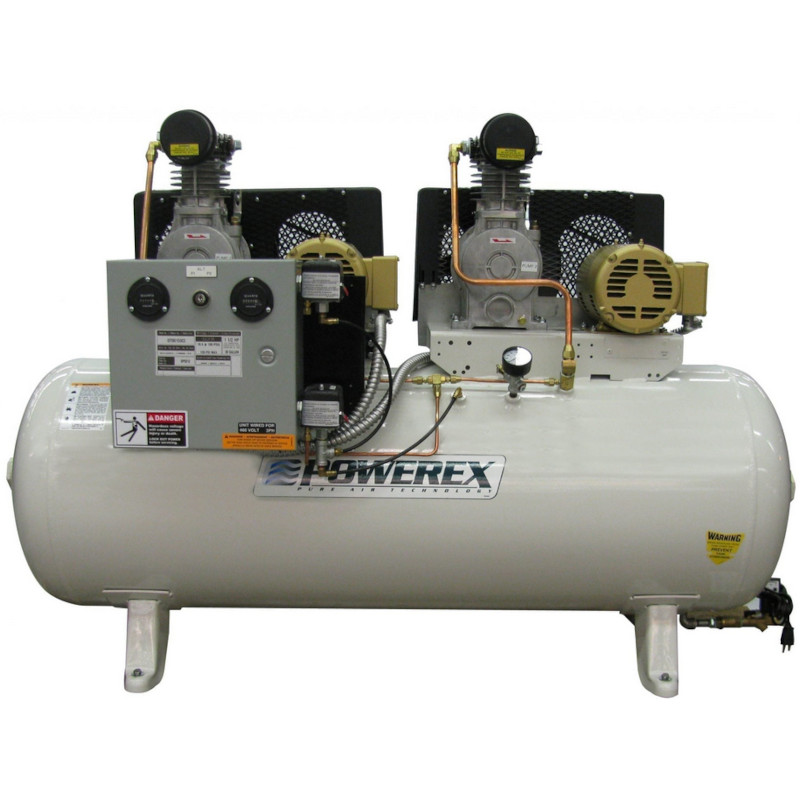

Powerex OTD0101 Duplex 2hp (2x1hp) Oil Free Piston Air Compressor, 6cfm, 30 Gallon, 3 Phase
The Powerex OTD0101 duplex 2hp oil free air compressor utilizes (2) 1hp compressor pumps to displace 6cfm. This compressor runs on three phase power and is mounted on a 30gallon horizontal air receiver. The Powerex duplex reciprocating tank mounted compressors are perfect for any application where clean dry air is required with integrated backup. The OTD Series Powerex Duplex Air Compressors have been designed and tested to meet the most demanding specifications for reliability in the pneumatic oil-free industry.
The OTD0101 is an extremely reliable compressor that features high quality construction and components. An unloading feature is included to provide loadless starting. Powerex oilless pumps use composite piston technology, low compressor speeds and PTFE compression ring(s) at low maintenance costs. The self-lubricating composite piston technology – standard on all Powerex reciprocating compressors – increases ring life and reduces temperature providing reliability for years to come. The dual cooling pistons reduce operating temperatures and the corrosion resistant components and coatings extend ring and valve life. The OTD0101 utilizes two OPS010 oil free compressor pumps.
This duplex air compressor package consists of two motor/compressor assemblies mounted on a single 30 gallon receiver tank. These are ideal reciprocating air compressors for instrumentation systems requiring an alternate compressor for standby or overload capacity. This style air compressor is desirable for a variety of reasons. When a duplex air compressor is alternated, the temperature of both compressors is kept above the ambient dew point to minimize moisture deterioration and corrosion. This still keeps temperatures low enough to prevent overheating on the motor and pump for increased life.
OTD0101 would be pre-wired in 208/230/460v 3 phase power prior to shipping depending on your buildings power. The 30 gallon receiver tank is ASME rated.
This compressor package is able to be configured in an array of different variants, including the potential to add a refrigerated dryer, desiccant dryer, aftercooler and more. Please contact our sales department to help tailor a compressor specific to your needs.
Features OTD0101
- Oil-less reciprocating piston pump technology: 100% oil free compressed air
- High efficiency ODP motors
- Manufactured in ISO 9001:2015 certified facilities
- Easy installation that maximizes floor space
- Three year warranty on compressor pump
- UL listed controls
