Jenny F13S-30UMS 1/3HP Fire Sprinkler Air Compressor, 3.3cfm @ 40psi, 30 Gallon Tank

Jenny F13S-30UMS 1/3HP Fire Sprinkler Air Compressor, 3.3cfm @ 40psi, 30 Gallon Tank

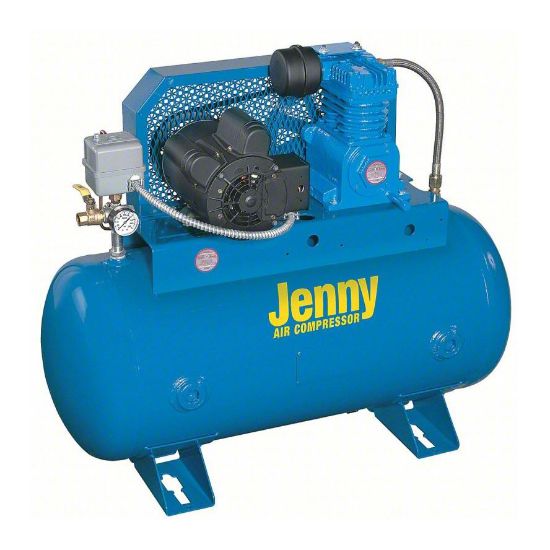

The Jenny F13S-30UMS is a 1/3hp reciprocating air compressor mounted on a 30 gallon receiver tank specifically designed for fire sprinkler compressed air applications. This compressor delivers 3.3cfm @ 100psi.

The maximum gallons in system to be pumped to 40 PSI in 30 minutes is 220 gallons

The F13S-30UMS includes the Jenny F series compressor pump. This is a fully cast iron pump that turns at a slower RPM compared to most industrial air compressors. The slow turning pump results in less heat for increased longevity and less oil contamination downstream into the system. This pump is manufactured in Somerset Pennsylvania.

F13S-30UMS is mounted on a 30 gallon horizontal air receiver. This fire supression sprinkler air compressor will have a pressure switch pre-set to turn on the compressor at 30psi and turn off at 40psi.

This compressor is available in 115v single phase power, 230v single phase power or 208/230/460v three phase power and will be pre-wired to your building power before shipping.

Standard Features - Jenny F13S-30UMS Supression Air Compressor

•     Heavy-duty cast iron compressor pump Made in Somerset, PA USA
•     Splash lubricated low RPM compressor pump
•     Belt driven with a large flywheel for extra cooling and easier start-up
•     Each unit is filled with Jenny Synthetic Blue Compressor Pump Oil
•     Directional air shroud for reduced pump temperatures
•     Totally enclosed heavy-duty beltguard
•     Thermal overload motor protection
•     Powder coated, extra heavy steel base plate
•     Large canister intake filter with replaceable filter elements
•     Magnetic starter is included on all 5HP and larger units
•     Industrial/Commercial grade UL Listed electric motor
•     Thermal overload motor protection Base Mounted
