Ingersoll Rand SS3L3 3hp 60 Gallon Single Stage Air Compressor, 11.3cfm, 135psi, 230v/1ph

$1,354.00
$1,089.00
SKU: SS3L3
Part #: SS3L3
GTIN: 678384340052
Call to order 866-203-2944

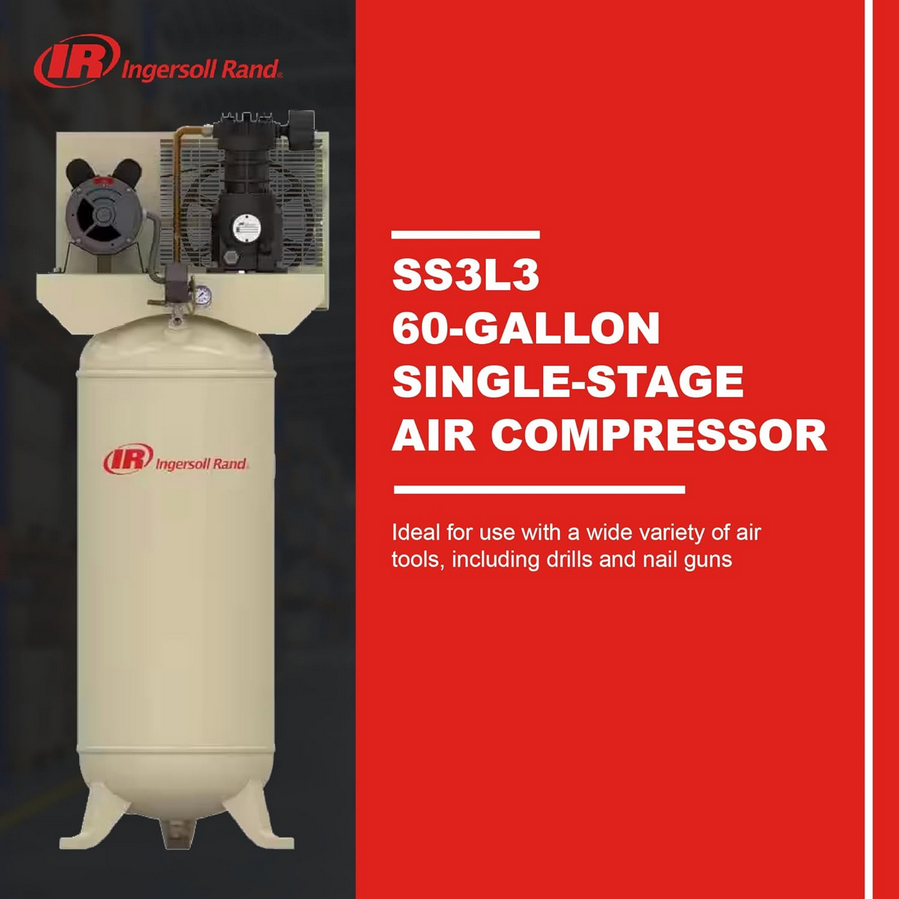

Ingersoll Rand SS3L3 3-HP Single-Stage Stationary Air Compressor

The Ingersoll Rand SS3L3 Single-Stage electric air compressors are ideal for most anyone from the do-it-yourselfer, to the professional air compressor user.

The SS3L3 reciprocating compressor utilizes a full cast iron compressor pump with a deep finned crankcase cylinder that provides 360 degree cooling for heat dissipation. The cast iron flywheel forces a “cyclone” air blast to provide cooling for the deep finned cylinders which further reduces operating temperatures. The cylinder is precision honed for low oil carryover. There are three piston rings for sealing compression and oil control. The taper compression ring and beveled oil scraper ring provide quick seating. An oil control ring maintains proper lubrication on cylinder wall to prevent the pump from seizing up. The compressor pulley also acts as a cooling fan with fan for increased cooling air across the motor and compressor pump

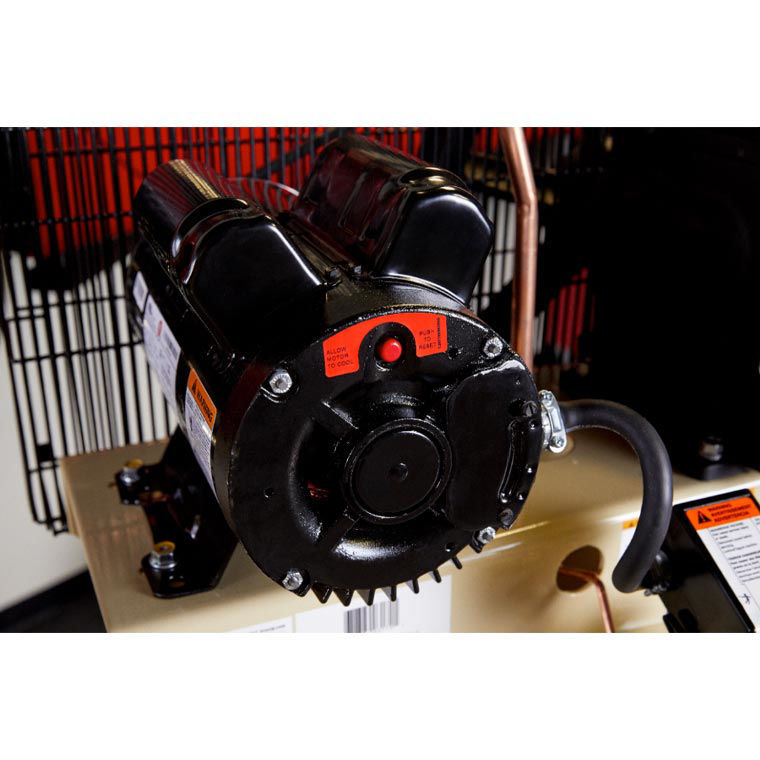

The motor uses a manual thermal overload protection so no magnetic motor starter is required. Simply wire directly to your breaker or fusible disconnect. The motor bearings are greased for life and the bearings do not need regreasing. The pump and motor are mounted on a 60 gallon vertical receiver tank that is ASME certified and comes with a pre-installed pressure gauge, safety valve, and ball valve for system isolation. The belt guard is a wired enclosed guard to provide shielding around the flywheel and motor pulley.

Ingersoll Rand SS3L3 piston compressor features

  • Single-stage electric air compressor
  • Durable cast-iron construction
  • Industrial quality design
  • 135 PSI maximum operating pressure
  • 3 HP motor with thermal overload and manual reset

California Residents: Prop 65 WARNINGS
Products specifications
Drive StyleBelt Drive
PhaseSingle, Single
Horse Power3
Max Pressure (PSI)135
CFM @ 135 PSI11.3
Voltage230/1/60
ConfigurationVertical
Tank Size60 Gallons
Dimensions20-in X 23-in X 66-in
Weight300 lb
