Ingersoll Rand R5.5i 7.5hp Industrial Rotary Screw Compressor Three Phase 208-230-460v, Tank Mounted

Ingersoll Rand R5.5i 7.5hp Industrial Rotary Screw Compressor Three Phase 208-230-460v, Tank Mounted

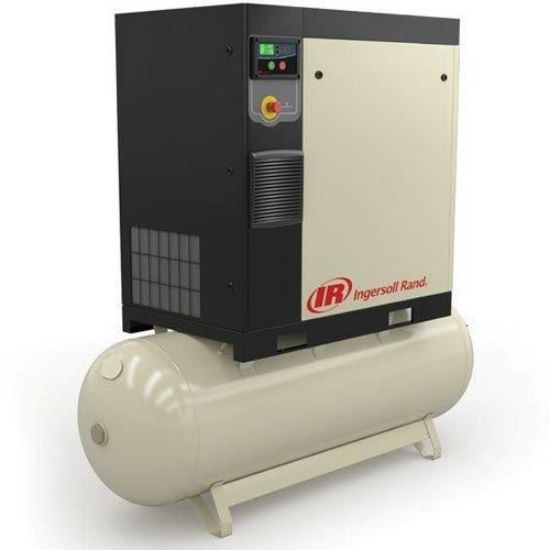

The Ingersoll Rand R5.5i is a 7.5hp rotary screw air compressor that runs on three phase power. The new Ingersoll Rand R-Series is a durable rotary screw compressor that offers benefits, innovative features, and a compact design that fits virtually any application environment. This compressor is pre-wired in either 208, 230, or 460v.

The rugged and reliable compression airend is contact cooled with a highly efficient asymmetrical profile rotor. The airend is vertically stacked which allows for easy maintenance and superior air/oil separation. This results in cleaner air being sent downstream with less pressure drop across air treatment, leading to a more energy efficient and clean compressed air system. The airend is paired with a IE3 premium energy-efficient motor to support continuous operation in harsh environments. The R5.5i fixed speed compressor is designed to handle 24/7/365 operation.

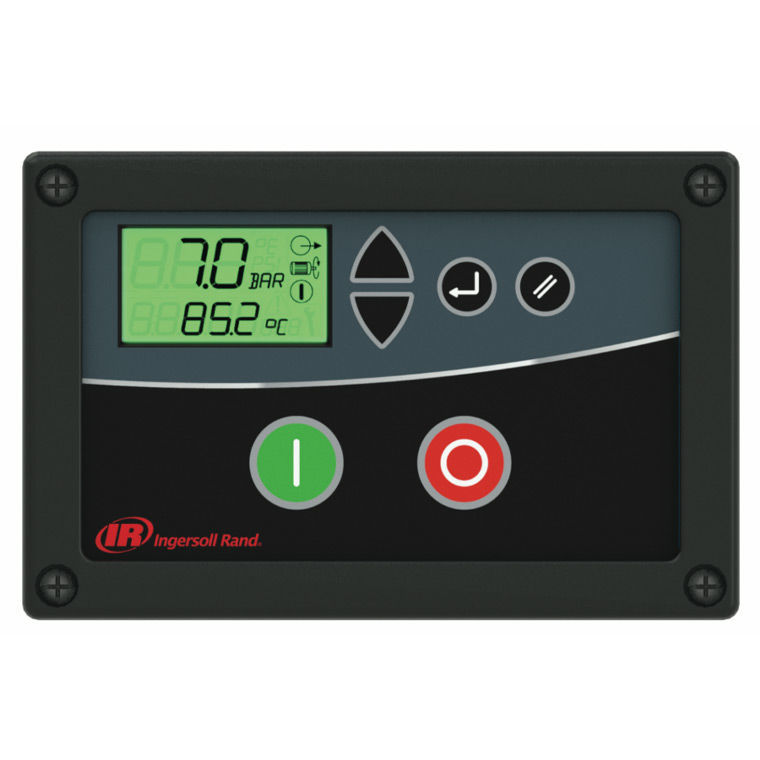

The R-series rotary screw compressor comes standard with the XE-50 rotary compressor controller. The Xe-50M controller provides you with full asset control and increased reliability. Clear, intuitive navigation ensures ease of use with a peace of mind that your system is running as it should.

New to the R-series compressor is Ingersoll Rand’s V-ShieldTM technology. V-Shield utilizes premium PTFE hoses on all oil-carrying lines as well as o0ring face seal connections. This design virtually eliminates all oil leaks and increases the hose life.

The compressor unit is a totally self-contained package complete with all piping, wiring and accessories. It is mounted on an ASME certified receiver with pre-installed safety valve. The R5.5i rotary screw compressor is factory tested and shipped complete, ready for installation.

This unit is pre-wired based on your buildings power upon ordering. This compressor is mounted on an 80 or 120 gallon air receiver .

Increased Efficiency

• IE3 premium energy-efficient fixed speed motors support continuous operation in harsh environments
• Next-gen leak-free airends feature significantly improved turndown performance for variable speed units

Compact Productivity

• Vertically stacked design takes up a smaller footprint
• Quiet operation (69 dB(A))
• Xe Series programmable controllers deliver increased control functionality

Features and Benefits - R5.5i Three Phase

• Increased Efficiency: Advanced airend design integrates key components to reduce leak paths, improve reliability and improving VSD turndown IE3 premium energy-efficient main drive motor
• Leak-free Operation: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
• Xe50 Series advanced programmable controller
• Whisper-quiet operation as low as 69 dBA
• Enhanced Reliability: Sequential Cooling System significantly improves reliability and serviceability by providing cool clean ambient air to key electrical components
