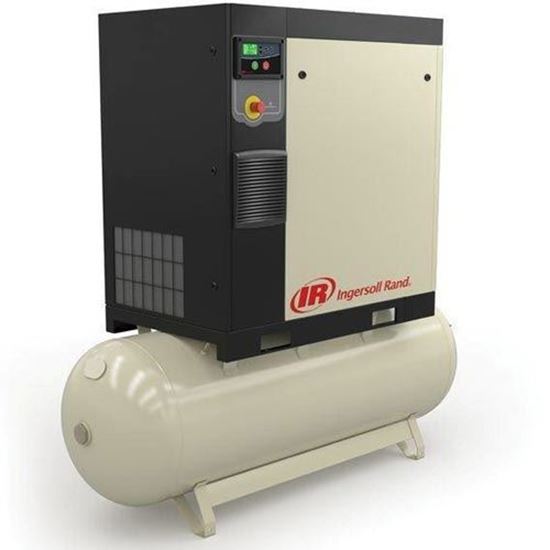

Ingersoll Rand R5.5i 7.5HP 3 Phase 80 Gallon Rotary Screw Air Compressor

SKU: R5.5i-125-3-80
Part #: R5.5i-125-3-80
Availability: Special Order
Old price: $7,812.00
$6,709.99
Call to order 866-203-2944

Ingersoll Rand R5.5i 7.5-HP 208v 3 Phase 80 Gallon Rotary Screw

The new Ingersoll Rand R5.5 series is a durable rotary screw compressor that offers benefits, innovative features, and a compact design that fits virtually any application environment.

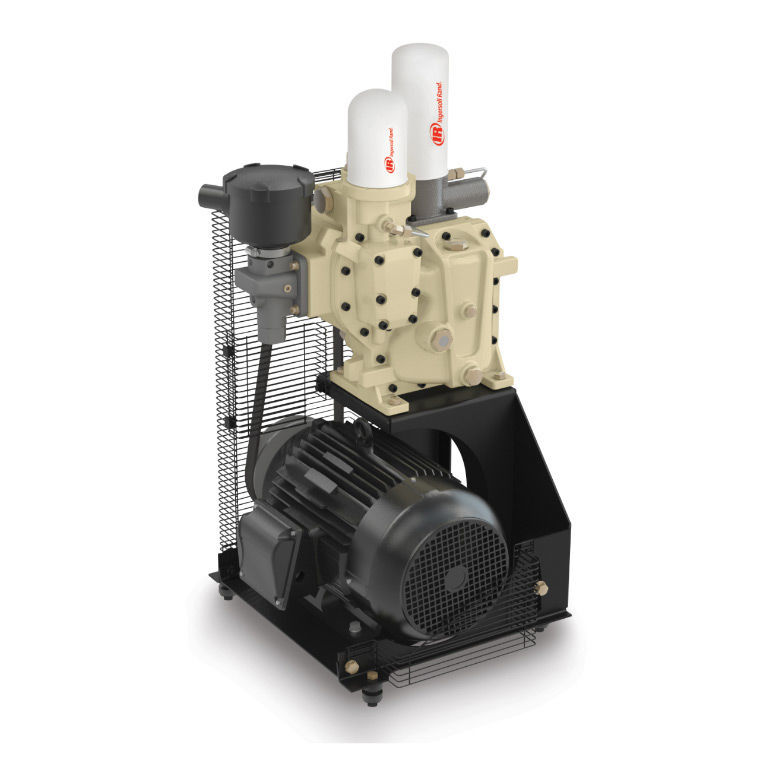

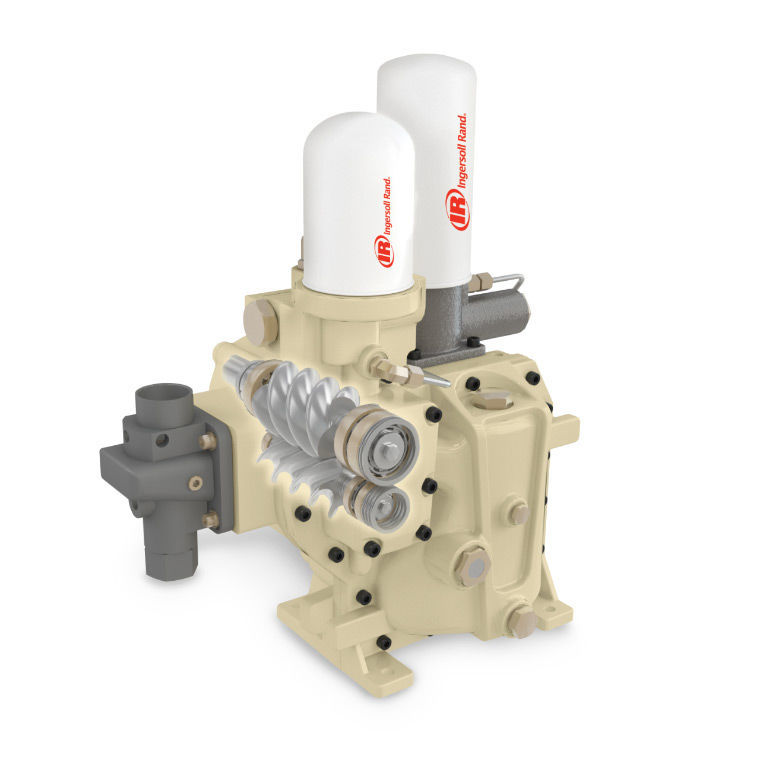

The rugged and reliable compression airend is contact cooled with a highly efficient asymmetrical profile rotor. The airend is vertically stacked which allows for easy maintenance and superior air/oil separation. This results in cleaner air being sent downstream with less pressure drop across air treatment, leading to a more energy efficient and clean compressed air system. The airend is paired with a IE3 premium energy-efficient motor to support continuous operation in harsh environments. The R5.5i fixed speed compressor is designed to handle 24/7/365 operation.

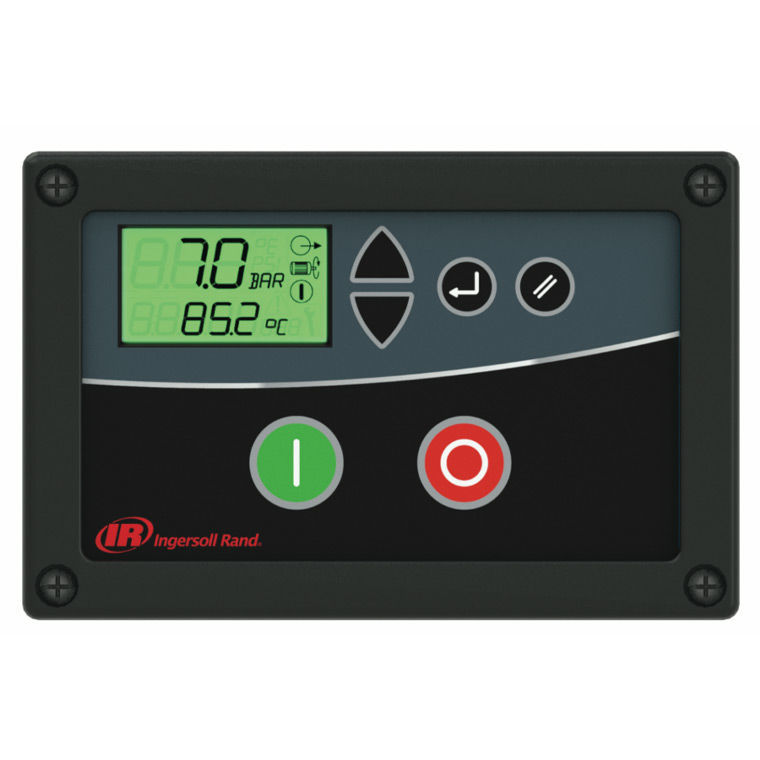

The R-series rotary screw compressor comes standard with the XE-50 rotary compressor controller. The Xe-50M controller provides you with full asset control and increased reliability. Clear, intuitive navigation ensures ease of use with a peace of mind that your system is running as it should.

New to the R-series compressor is Ingersoll Rand’s V-ShieldTM technology. V-Shield utilizes premium PTFE hoses on all oil-carrying lines as well as o0ring face seal connections. This design virtually eliminates all oil leaks and increases the hose life.

The compressor unit is a totally self-contained package complete with all piping, wiring and accessories. It is mounted on an ASME certified receiver with pre-installed safety valve. The R5.5i rotary screw compressor is factory tested and shipped complete, ready for installation.

Increased Efficiency
  • IE3 premium energy-efficient fixed speed motors support continuous operation in harsh environments
  • Next-gen leak-free airends feature significantly improved turndown performance for variable speed units
Compact Productivity
  • Vertically stacked design takes up a smaller footprint
  • Quiet operation (69 dBA)
  • Xe Series programmable controllers deliver increased control functionality

Ingersoll Rand R-Series Features

  • Increased Efficiency: Advanced airend design integrates key components to reduce leak paths, improve reliability and improving VSD turndown IE3 premium energy-efficient main drive motor
  • Leak-free Operation: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
  • Xe50 Series advanced programmable controller
  • Whisper-quiet operation as low as 69 dBA
  • Enhanced Reliability: Sequential Cooling System significantly improves reliability and serviceability by providing cool clean ambient air to key electrical components
Products specifications
Horse Power7.5
Max Pressure (PSI)125
CFM @ 125 PSI27.5
Voltage208/230/460
PhaseThree
ConfigurationHorizontal
Tank Size80 Gallons
Dimensions38W-in x 27H-in x 47L-in
Weight617 lb
