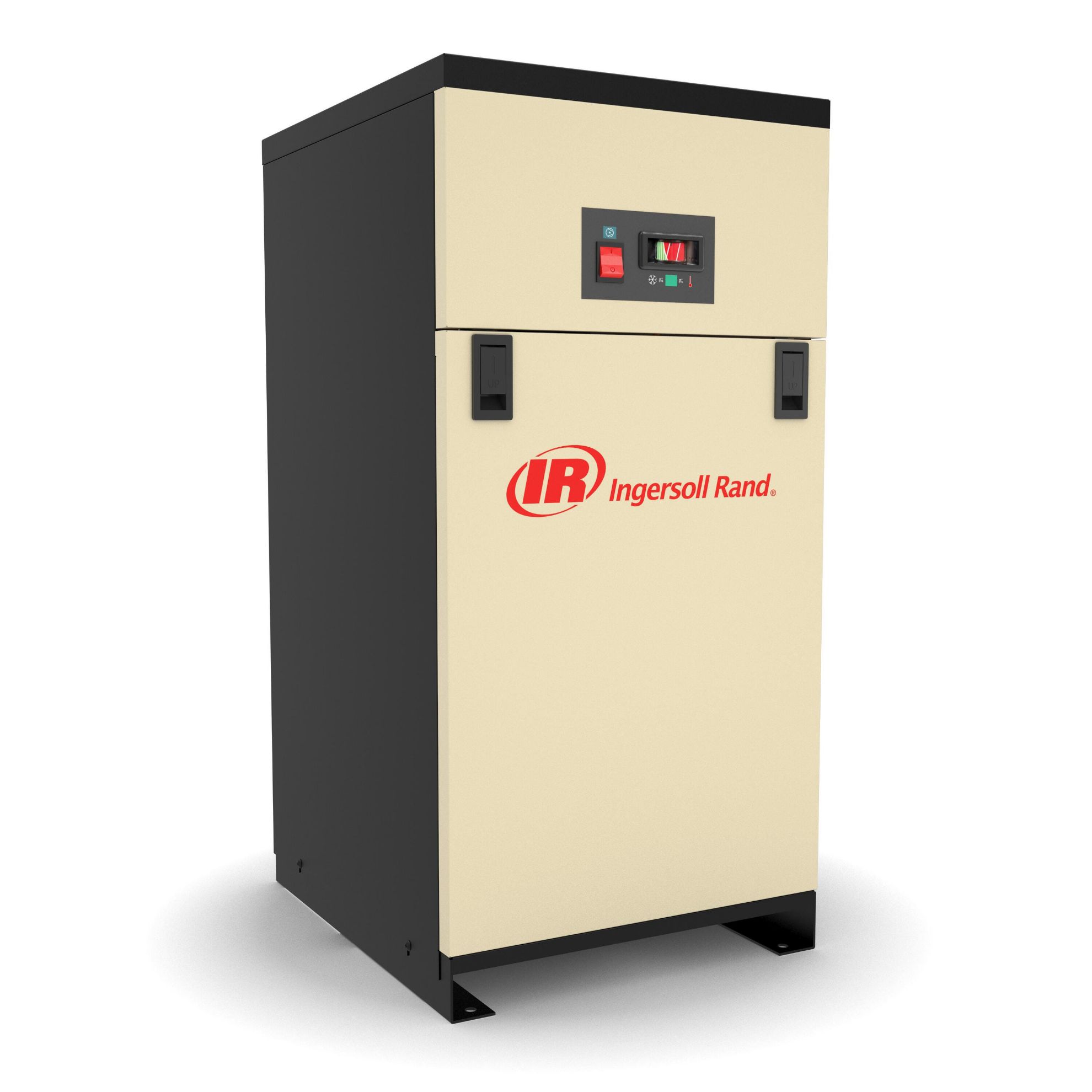

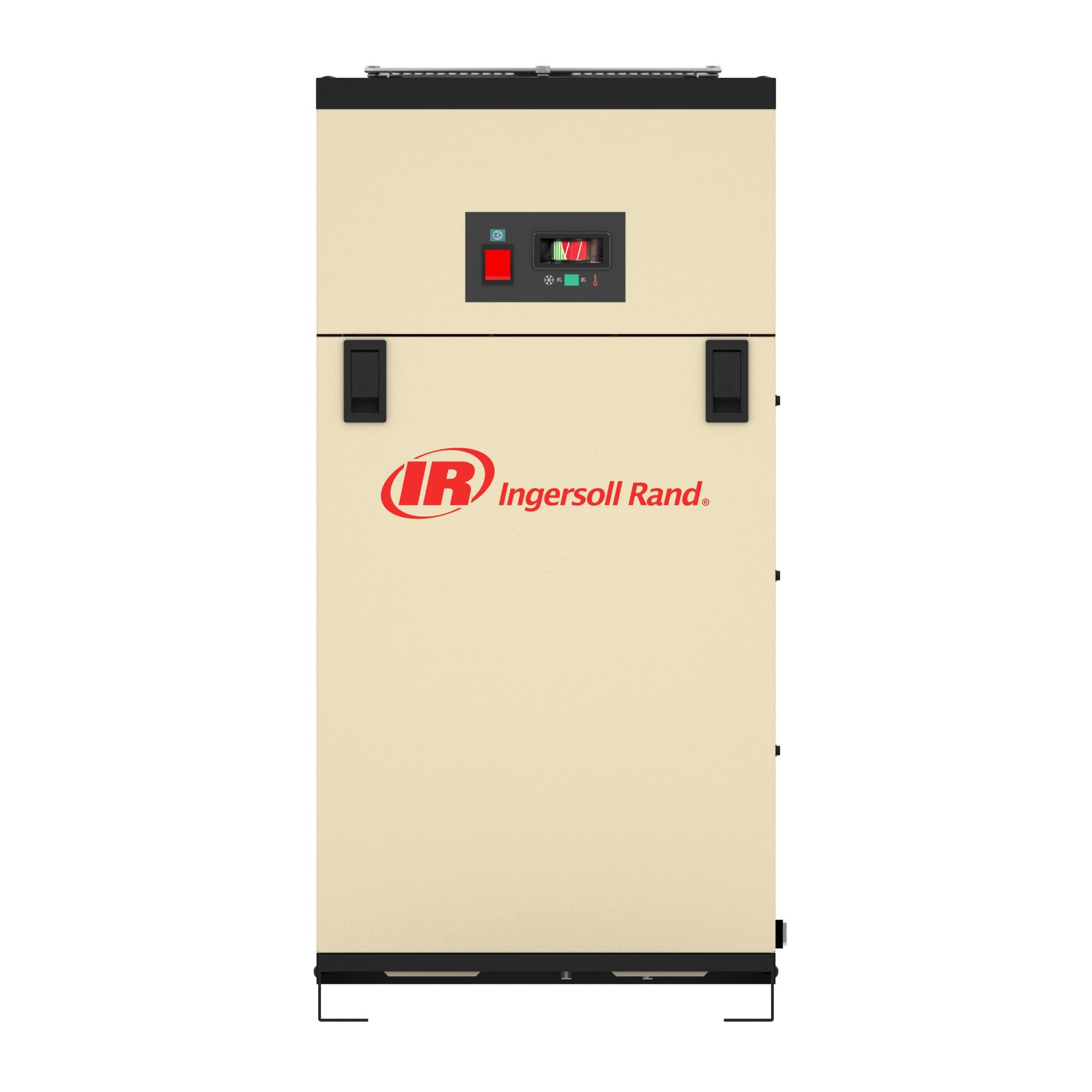

Ingersoll Rand DA25ITA100 High Temperature 15cfm Refrigerated Air Dryer 47908928001

Ingersoll Rand DA25ITA100 High Temperature 15cfm Refrigerated Air Dryer 47908928001

The Ingersoll Rand DA25ITA100 is a compact 15cfm high-temperature refrigerated air dryer designed for small compressed air systems that do not have a built in aftercooler on their reciprocating air compressor.

Built as part of Ingersoll Rand’s DA-IT Series High Temperature Non-Cycling Refrigerated Dryers, this unit is engineered to handle demanding inlet air temperatures up to 200°F, making it a strong choice for piston/reciprocating compressor systems, small shops, automotive facilities, dry cleaners, and light industrial compressed air applications.

This dryer is rated for 15 SCFM and uses R513A refrigerant, a lower-GWP refrigerant designed to support newer environmental standards while still delivering dependable refrigerated dryer performance. The DA25ITA100 features a compact vertical cabinet, integrated moisture separation, plug-and-play 115V single-phase power, and a 3/4" MNPT air connection for straightforward installation into smaller compressed air systems.

Unlike standard refrigerated dryers that may struggle with elevated inlet temperatures, the DA25ITA100 is specifically built for high inlet temperature conditions. This makes it especially useful when paired with smaller air compressors where discharge air can be hotter, or where the dryer is installed closer to the compressor. By cooling compressed air and removing moisture before it reaches tools, equipment, filters, piping, or paint systems, the DA25ITA100 helps reduce water-related problems such as corrosion, air line contamination, poor tool performance, and moisture carryover.

The model number is DA25ITA100 and Ingersoll Rand's internal part number for this air dryer is 47908928001.

Key Features & Benefits: DA25ITA100 / 47908928001

• 15 CFM Capacity – Properly sized for smaller compressed air systems and light-duty shop applications.
• High Temperature Design – Handles inlet air temperatures up to 200°F, making it ideal for demanding compressor discharge conditions.
• 115V Single Phase Power – Standard 115/1/60 electrical requirement makes installation simple in most shop environments.

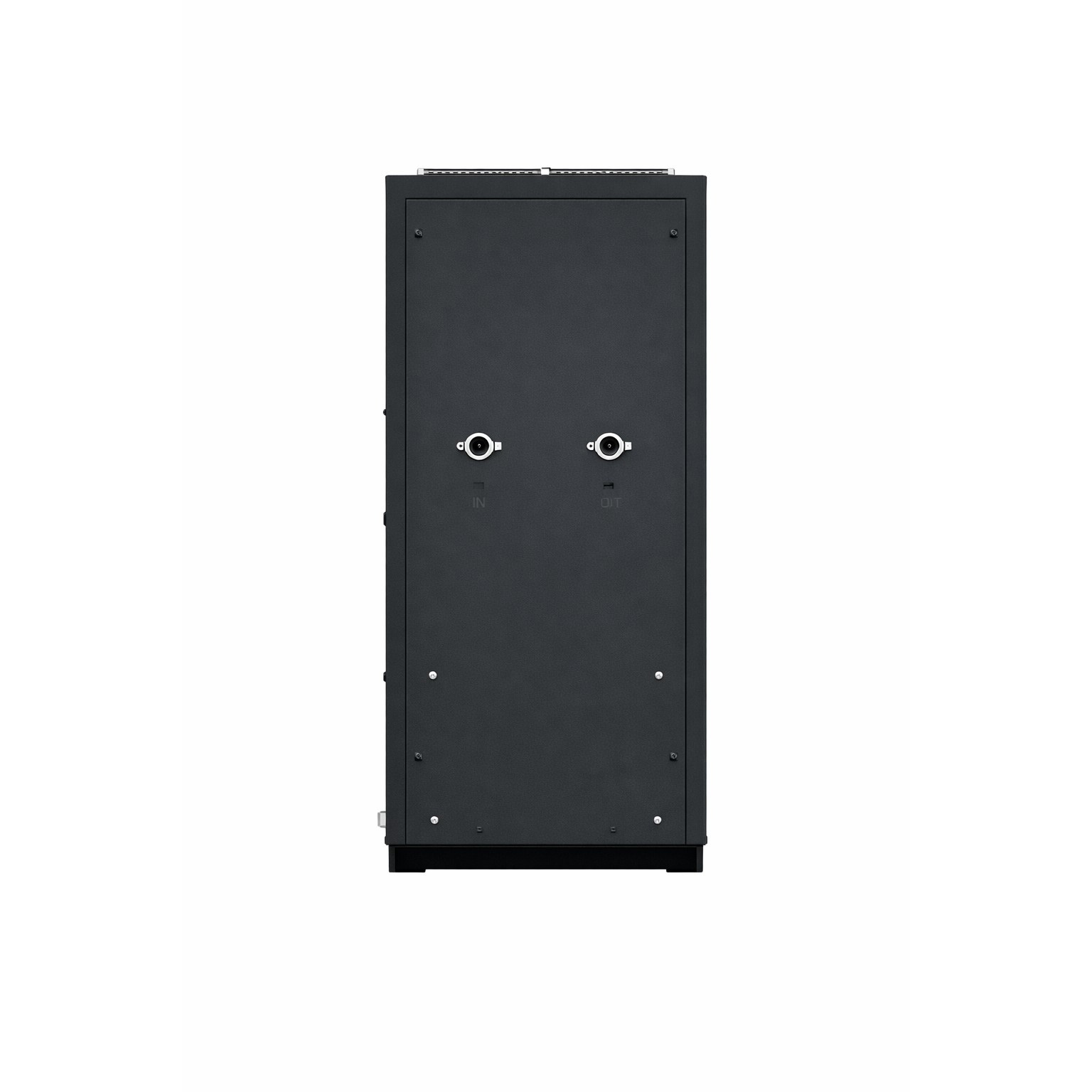

• 3/4" MNPT Air Connections – Easy to connect into common compressed air piping layouts.
• R513A Refrigerant – Lower-GWP refrigerant supports modern sustainability goals while maintaining reliable dryer performance.
• Compact Cabinet Design – Small footprint makes the dryer easier to install near the compressor or in tight mechanical spaces.
• Integrated Moisture Separator – Helps remove condensed moisture from the compressed air stream before it travels downstream.
• Non-Cycling Operation – Designed for consistent performance in applications with steady compressed air demand.
• Reliable Heat Exchanger Design – The DA25IT model use a brazed plate heat exchanger for efficient and durable operation.
• Energy Efficiency - Engineered with a low pressure drop and multi-stage cooling to minimize energy consumption while ensuring consistent dew point performance.
