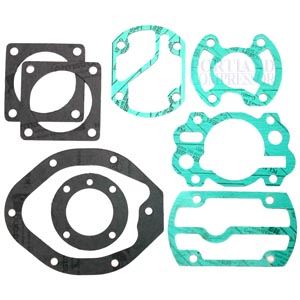

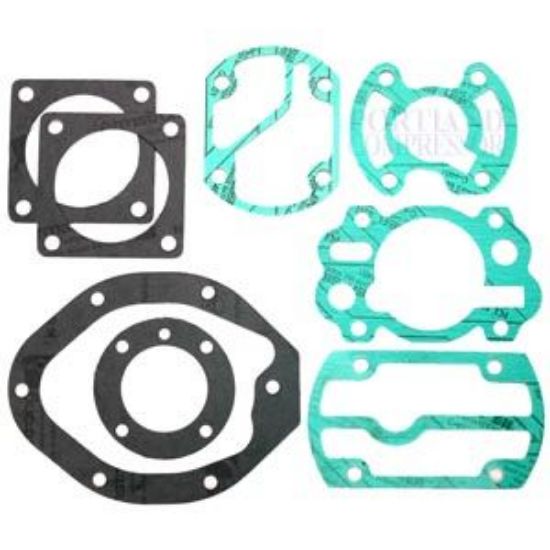

Ingersoll Rand 32159311 OEM Gasket Set for 234 Compressor Pump
The 234 T30 compressor pump gasket kit includes the frame gasket that attaches the faceplate where the oil fill plug is to the crankcase housing. Two cylinder gaskets that attach the main cylinders to the crankcase housing. Both head and valve plate gaskets for each cylinder are also included to create a seal between the high and low pressure cylinders as well as the valve plates and heads.
This gasket kit is only used on the 234 bare compressor pump that was manufactured by Ingersoll Rand in the 1980's and early 1990's. This is the predecessor to their 2340 bare pump.
