High Efficiency Ingersoll Rand FA230IH Replacement Filter Element

SKU: 24242166
Part #: 24242166
Ship to
Shipping Method
Estimated Delivery
No shipping options

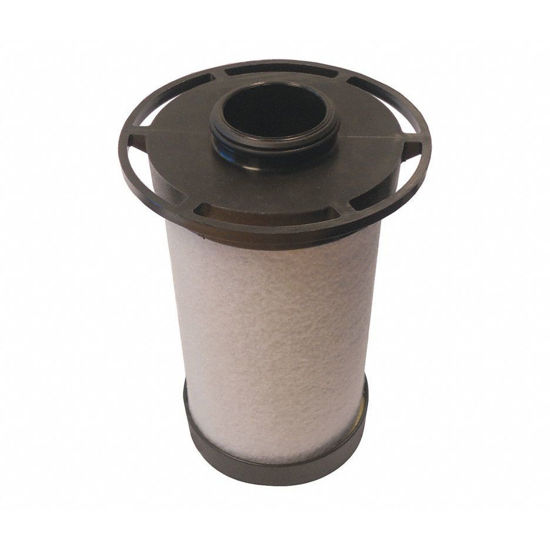

High Efficiency Ingersoll Rand FA230IH Replacement Filter Element - 24242166

24242166 is a replacement filter element for the FA230IH inline filter manufactured by Ingersoll Rand. This filter fits their newer F series cast filters. 24242166 fits the FA230IH housing and the replacement element does include a housing o-ring for a reduced leak rate.

Many of the UP6-25 TAS and IRN25TAS rotary screw compressors from Ingersoll Rand also have the FA230IH filter built inside the refrigerated dryer section and is utilized as a pre-dryer filter. However, Ingersoll rand used three different filter series over the past few years. If you have a Total Air System rotary compressor from Ingersoll Rand, please give our parts department a call for confirmation this will work in your air compressor.

FA230IH is a high efficiency coalescing oil removal filter. This is used to remove dust, debris and particles from the airstream down to .01 micron. This also removes oil aerosol contents down to 0.01mg/m3. This filter should always be preceded by a general purpose element.

The F series filters are designed for easy replacement compared to competitive filters. They feature a no-touch element replacement for faster and cleaner maintenance. The entire assembly also requires minimal clearance for bowl removal.

This is an OEM filter manufactured by Ingersoll Rand. Most filters sold on the internet are aftermarket filters and are not rated to the same filtration specs.
