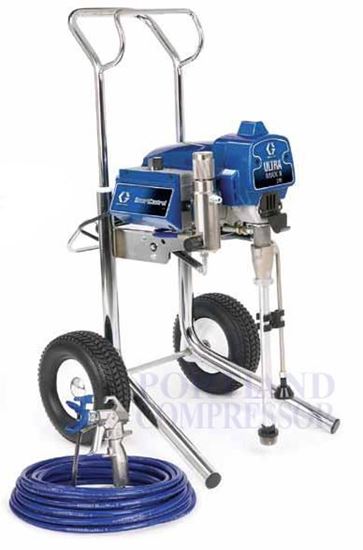

Graco Ultra Max II 595 Airless Paint Sprayer - HiBoy

Part #: 249919

Sorry - this product is no longer available

Free shipping
(!Topic name="inc-airless-electric-v48"!)

The latest in the Graco 595 series (2007). A superb sprayer for the professional painter. The Ultra Max II 595 is a reliable airless paint sprayer and will out perform and outlast competitive sprayers.  This is an great airless sprayer for daily use in typical painting applications.

Equipped with the proven Graco Endurance Pump, this sprayer is built to last. These pumps feature long life V-Max Blue Packings,  a Chromex Rod and hardened stainless steel cylinder.

The Ultra Max II 595 has a brushless DC motor with enclosed design to protect internal components and has a lifetime warranty.

The 595 is equipped with SmartControl 2.0. This advanced microprocessor control delivers a consistent spray fan at all spraying pressures and a zero dead band at lower spraying pressures which makes this a good sprayer for fine finish work.

Manufactured with a solid inlet tube for buckets or cans and wont tip cans over. It is easily removed, for cleaning or accessing inlet ball and is made of durable aluminum to be light weight and rust free.

Like the other sprayers in the current Graco Contractor Series the 595 has the Easy Out Pump Filter which filters from the inside out so it wont get wedged when removed or collapse. Also, the filter comes out with the cap for less mess to help ease its cleaning. New replacement filters are available in several mesh sizes to help fine tune your sprayer to the coating you are spraying.

The NEW Graco Contractor 2-finger gun that is included with this sprayer has its own in-gun filter inside the handle to help ensure a clean debris-free spray fan. Replacement filters are available in a couple mesh sizes - standard 60 mesh for most applications and 100 mesh for fine finish work.

You simply can't go wrong with this quality sprayer made by the leading manufacturer of airless paint equipment - Graco.

Complete with Gun, Hose and Tip Box Includes:
  • 50' Hose (1/4")
  • Contractor II Gun
  • RAC X Tip (517)
Ultra Max II 595 Hi-Boy Specifications
0.70 Gallons per minute
1.4 Horse power
(Brushless DC)
RAC X Tip Type
3300 Max pressure (psi)
0.027 Max tip size (1 gun)
300 ft Max Cord Length (14 ga)
110-120 Voltage (AC)
60 Hz Voltage Frequency
Smart 2 Pressure Control
Daily Usage (typical)
1500 Gallons per year
72 Weight
86 Shipping weight
