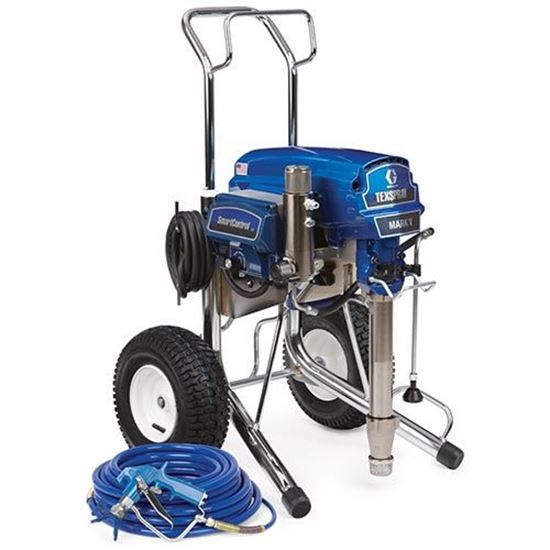

Graco TexSpray Mark V Standard

Part #: 16W905

Sorry - this product is no longer available

Free Shipping

in the 50 United States

Graco TexSpray Mark V Standard Series

The Mark V is Graco's largest 110V electric airless/texture sprayer. It can accommodate larger tip sizes, that enable it to spray skim coat in a Level 5 finish, and drywall mud in an orange peel, splatter, or knockdown finish. And even the wide range of primers and paints.

Endurance Pump with Max Flo™+ Long-life Chromex Pump Rod and V-max Blue Packings. New Max Flo+ with Packout Protection provides oversized fluid passages to deliver maximum flow of even the heaviest materials while virtually eliminating pump pack-out.

SmartControl 3.0 - Offers precision pressure control that delivers a consistent spray fan without pressure fluctuations.

Other Features
  • TiltBack kickstand cart design holds the inlet clear of the paint bucket for easy one-person bucket changes
  • Easy Out Design Filters from the inside out to prevent filters from getting stuck when dirty
  • Higher spray pressures give you the power to spray tough coatings and run long hose lengths
  • Brushless DC Motor with enclosed design to help extend motor life
  • Heavy-Duty Texture Gun
  • LTX425 SwitchTip and Guard
  • 3/8" X 50 ft BlueMax II Airless Hose
  • 1/4" X 3 ft Whip Hose
Products specifications
Gallons per Minute 1.35
Horse Power 2.8
Max Pressure (PSI) 3300
Tip Type RAC X
Max Tip Size 0.039
Hose Connection Size 1/4"
(3/8" hose requires 1/4" to 3/8" fitting)
Usage (typical) Weekly-Daily
Weight 135 lb

Graco Texspray Warranty

  • Lifetime Motor Warranty - If the motor fails from normal use, we’ll replace it under warranty for the original owner for the life of the sprayer (Mark IV, Mark V and Mark X 240 Volt).
  • Lifetime Drive Train - If the drive train fails from normal use, we’ll replace it under warranty for the original owner for the life of the sprayer(Mark IV, Mark V and Mark X 240 Volt)
  • 1 Year Coverage against defects in materials and workmanship on the entire sprayer
  • Details on Last Page of Corresponding Manual
