Graco L220C1 Xtreme Lower Pump 220cc

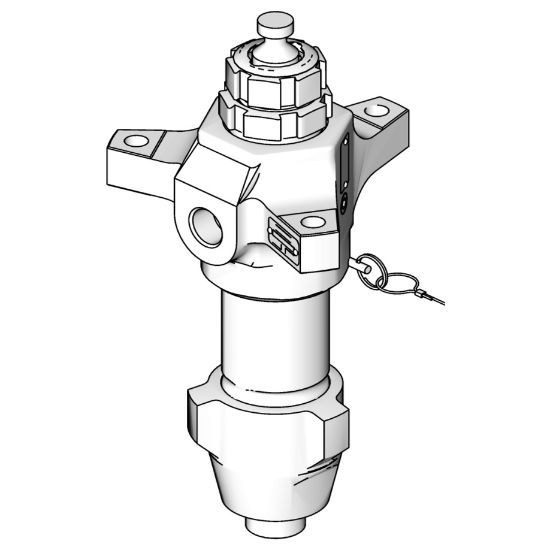

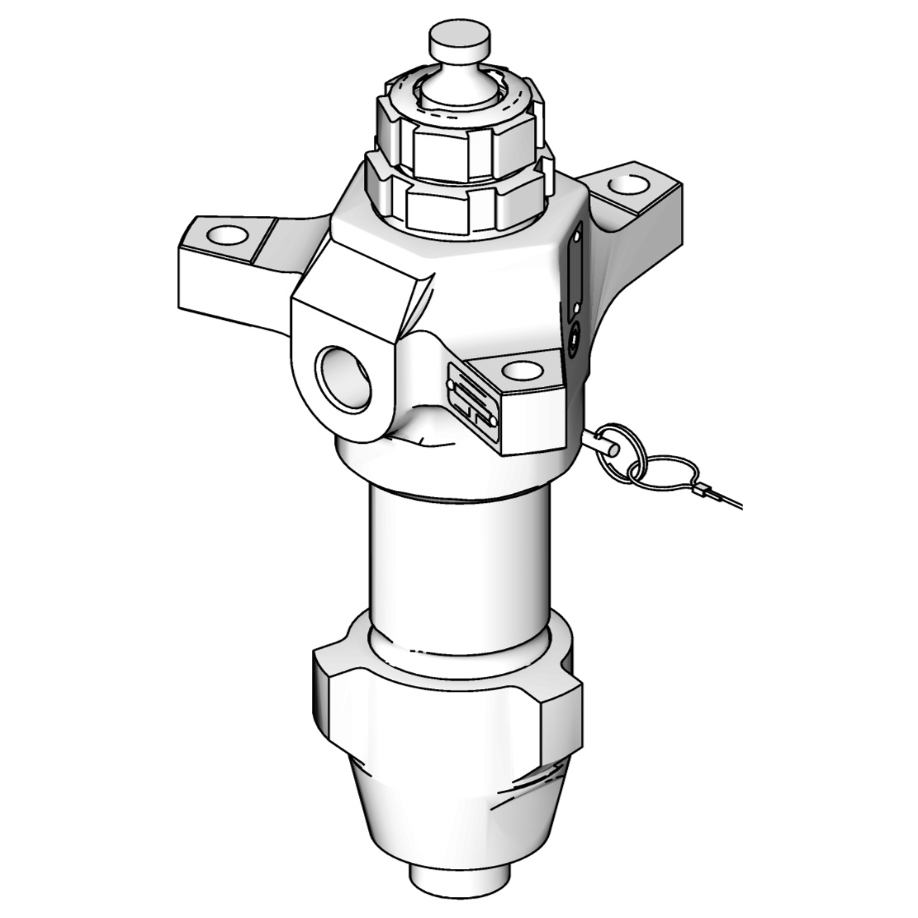

Graco Xtreme Lower Pump 220cc (L220C1)

This is the Graco Xtreme Lower Pump with 220cc of displacement, used on many E-Flo, King Spray, and Xtreme packages. This is the model without the integrated filter. Please check your manual to verify parts fitment, or contact us to confirm parts for your specific application.

Superseded or Alternate P/N: 236466

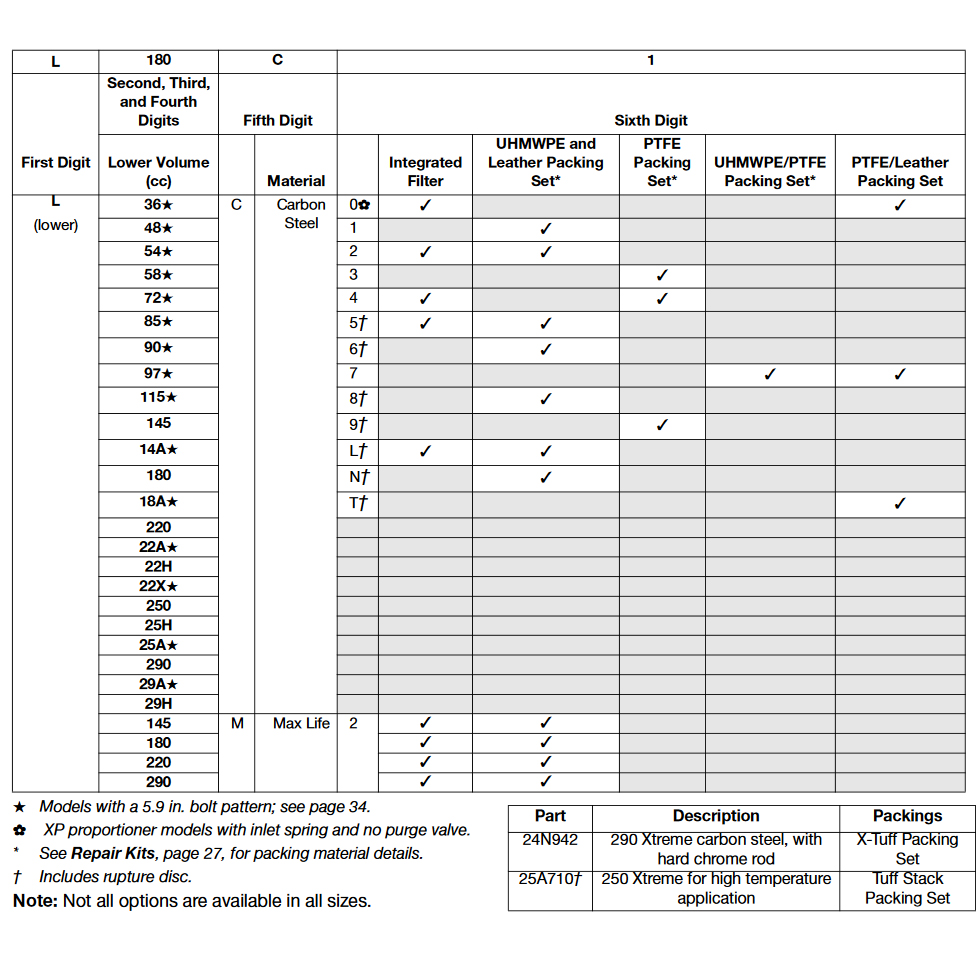

Check the identification plate (ID) on your lower for the 6-digit part number of your lower. Use the matrix (second picture) to define the construction of your lower, based on the six digits. For example, Lower Part Number L220C1 represents the lower (L), output volume (220), carbon steel construction (C), and no filter with Xtreme Seal™ packing stack (1).

Technical Specifications

• Stroke Length (in)                                     4.75
• Maximum Operating Temperature (°F)     180
• Maximum Output (cm³)                            220
• Maximum Working Pressure (psi)             6000
