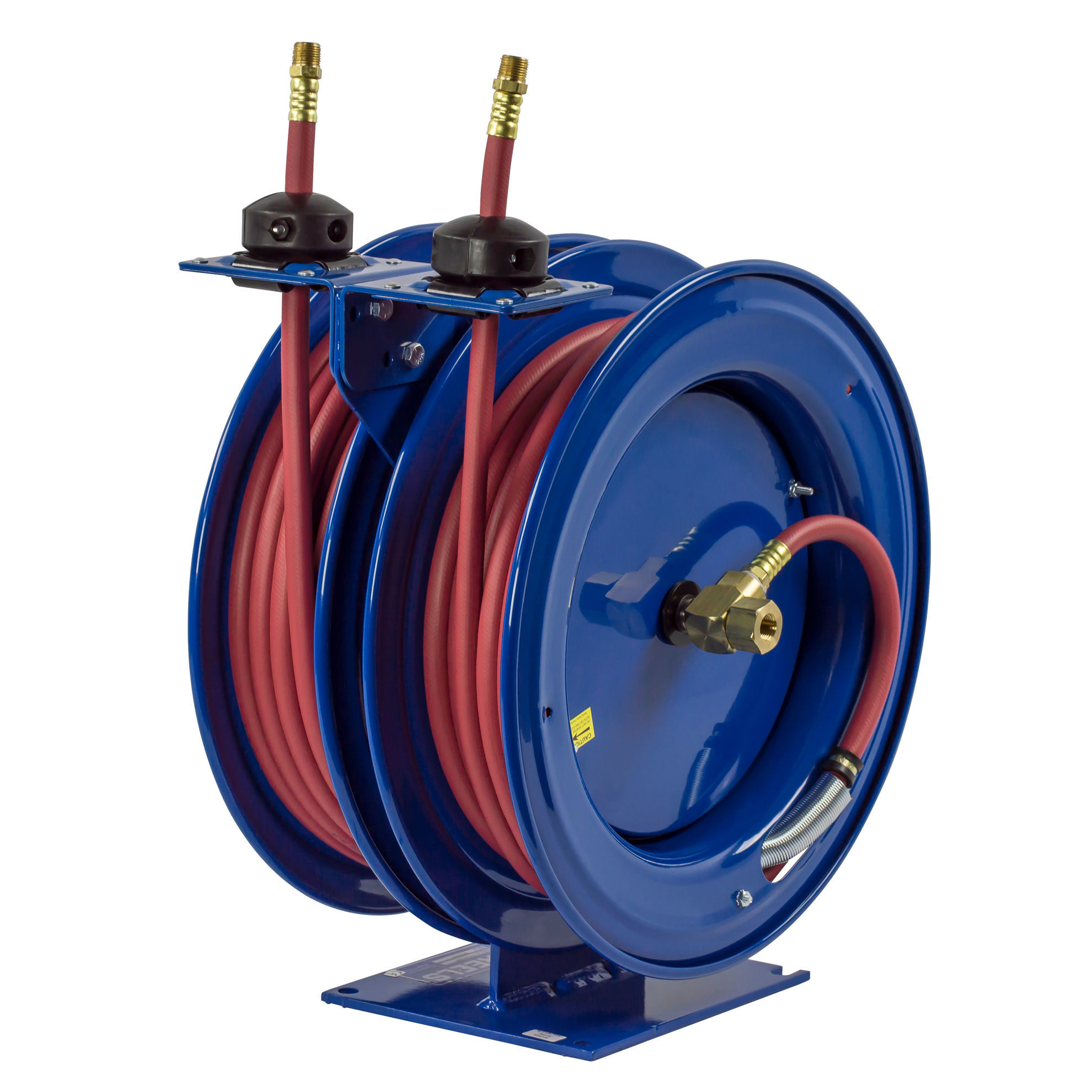

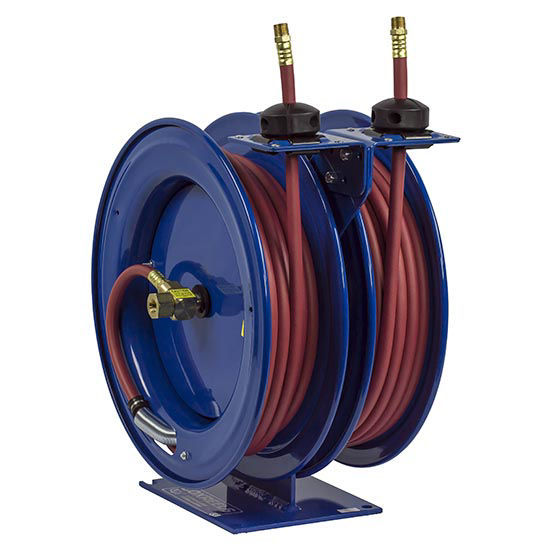

COXREELSC-LP-335-335 Dual Purpose Air Compressor Hose Reel with Spring Rewind, Two .38 x 35' Air Compressor Hoses

COXREELS C-LP-335-335 Dual Purpose Air Compressor Hose Reel with Spring Rewind, Two 3/8" x 35' Air Compressor Hoses

***MADE IN THE USA***

COXREELS® C Series “Combination” spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in air hose/electrical cord combinations.

The C-LP-335-335 from COXREELS includes two 3/8" x 35' air compressor hoses. Each reel operates independently of eachother, so you can use either reel at a time or both.

Swivel design - Two External fluid path machined from solid brass, 90º full flow NPT swivel inlet. Made of nitrile.

Design and structure - Sturdy single pedestal reel with space saving design helps facilitate workplace organization. Guide arm adjusts to wall, floor, vehicle and overhead positions for installation where you need it. Solid one piece heavy gauge 1/4" steel base and support for maximum stability. 1" Solid steel axle and lubricated precision bearings for smooth rotation.

Retract - Enclosed factory tuned and matched cartridge style spring motor. Non corrosive stainless steel spring, pawl and zinc plated ratchet. Multi position lock ratchet mechanism secures hose at desired length.

Spring Driven Features:

• Auto Rewind Easily Wraps, Stores & Protects Hose
• Heavy Gauge 1/4” Steel Base & Support Post
• Factory-Matched Cartridge-Style Spring Motor
• Brass NPT Swivel Inlet Machined From Solid (Zinc Plated Steel On HP Models)
• 1” Solid Steel Axle With 1” Lubricated Precision Bearings
• Guide Arm Adjusts To Wall, Floor & Overhead Positions
• Multi-Position Lock Ratchet Secures Hose At Desired Length
• Non-Corrosive Stainless Steel Spring, Pawl & Zinc Plated Ratchet

Fields of Application:

• Air/Water Services
• Pneumatic Tools
• Washdown
• Lubrication
• Chemical Fluid Transfer
• General Industrial
• Manufacturing Plants & Facilities
• Maintenance, Repair & Operations
• Automotive & Fleet Service Centers

Specifications

• Model number: C-LP-335-335
• Hose Included? YES - two hoses
• Hose Length - 35' each
• I.D. - 3/8"
• O.D. - 5/8"
• Maximum PSI - 300
• Dimensions - 10.5"(W) 18.63"(H) 17"(L)
• Weight with hoses - 69 lbs
