Coxreels SHW-N-150 Spring Rewind Welding Hose Reel, .25" x 50' Oxygen Acetylene Dual Hose Included

Coxreels SHW-N-150 Spring Rewind Welding Hose Reel, 1/4" x 50' Oxygen-Acetylene Dual Hose Included

***MADE IN THE USA***

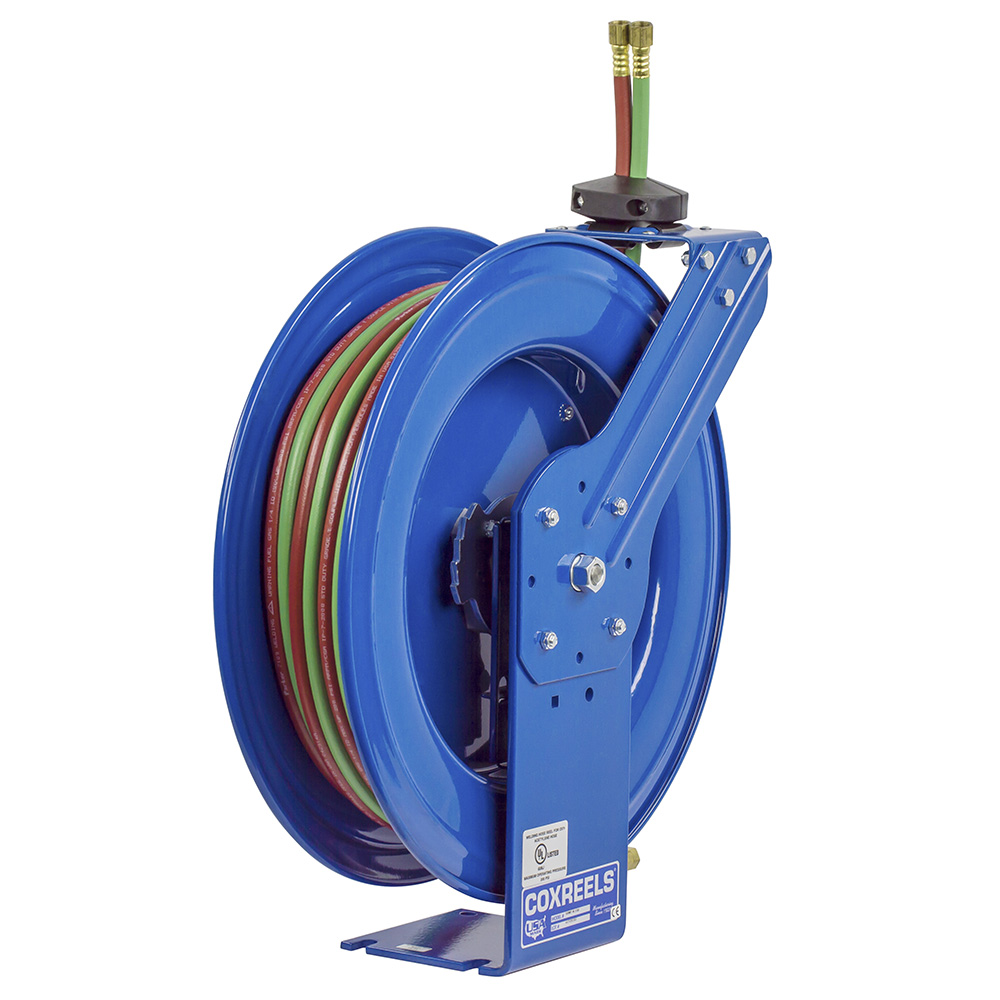

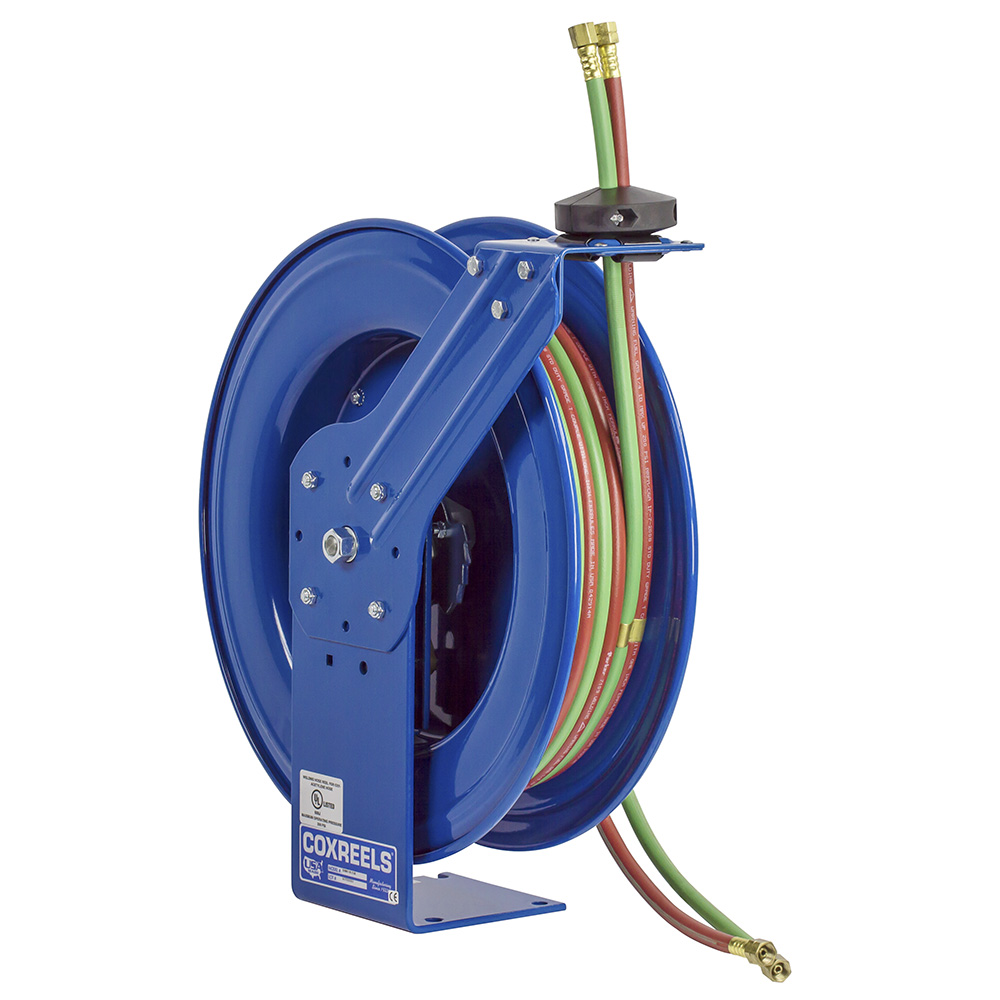

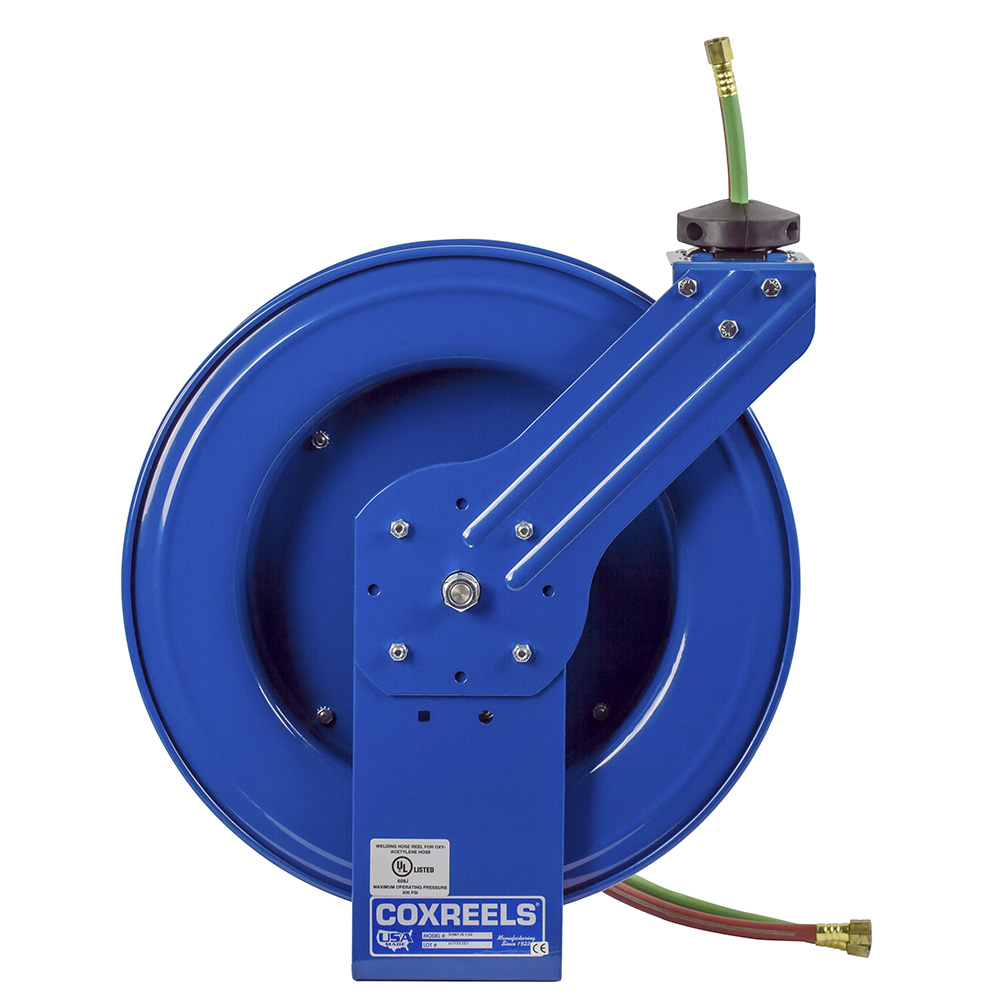

The COXREELS SHW-N-150 spring driven "Welding" hose reel is the ideal solution for managing bulky twin line welding hose. The SHW Series has a larger chassis and frame than P-W Series to accommodate longer lengths of welding hose and Coxreels original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity. COXREELS welding & fabrication reeling solutions are designed to ensure long life in the toughest environments. Moreover, they have numerous configurations, accessories, and mounting solutions to fit your application. We have the broadest, most complete line of reels, perfectly suited to help you get the job done - efficiently and effectively. We got you covered!

The hose supplied on this reel is 1/4" ID x 50' and is twin-siamese type meeting R.M.A. and C.G.A. type V.D. grade R specifications.

Swivel:

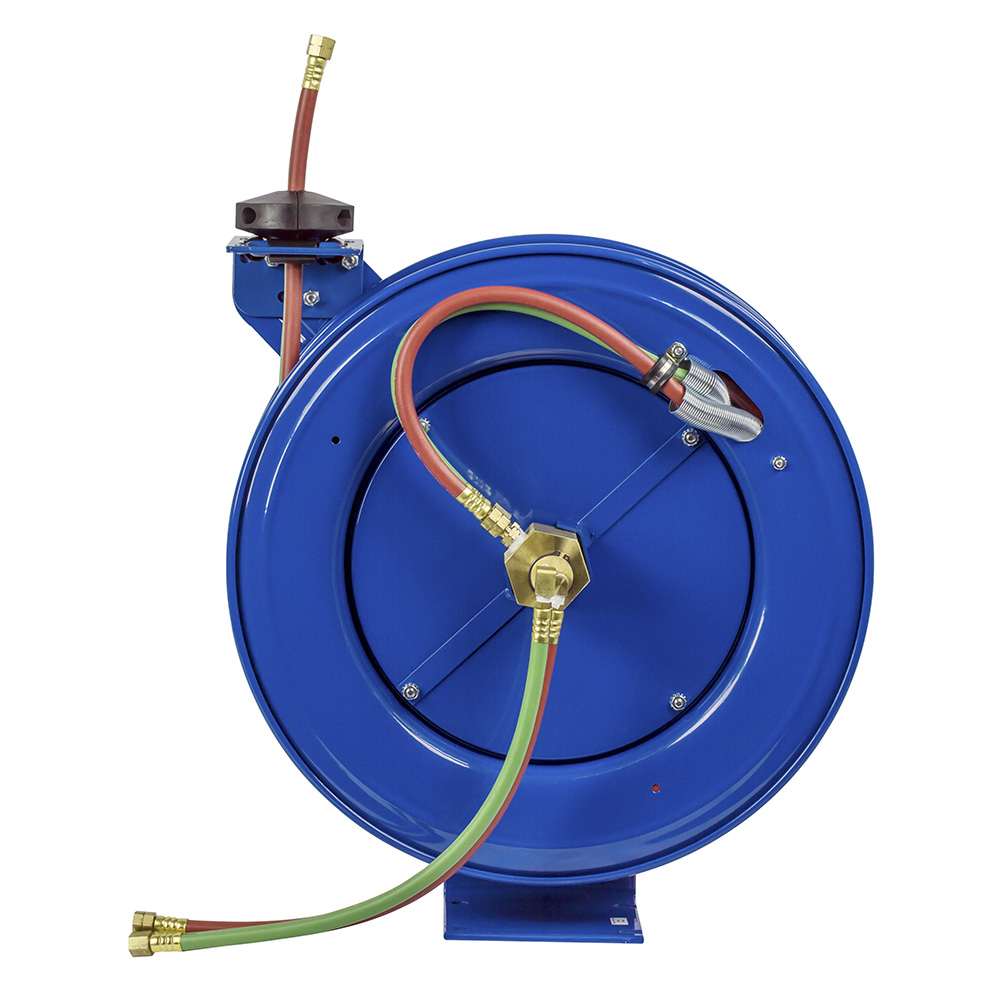

• External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
• Swivel lock bracket ensures maximum safety
• Swivel Seals: VITON

Design and Structure:

• Designed for Oxy-Acetylene and includes hose
• Single pedestal reel with space saving design facilitates workplace organization
• Guide arm adjusts to wall, floor & overhead positions
• Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation

Signature Features:

• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

Retraction:

• Enclosed factory tuned & matched cartridge-style spring motor
• Non corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position non-sparking lock ratchet mechanism secures hose at desired length

Fields of use and applications:

• Manufacturing Plants
• Welding / Service Trucks
• Manufacturing Plants & Facilities
• Maintenance, Repair & Operations
• Welding Shops
• Garage Settings
• Pipelines
• Mining, Construction & Railroad Operations
• Automotive & Fleet Maintenance

SHW-N-150 Specifications

• Hose Included? YES
• Hose Size: 50' x 1/4"
• Designed for : Oxygen-Acetylene welding
• Maximum PSI: 200psi
• Dimensions - 10.25"(W) 21.25"(H) 19.5"(L)
• Weight - 64 lbs
