Manufacturer: COXREELS

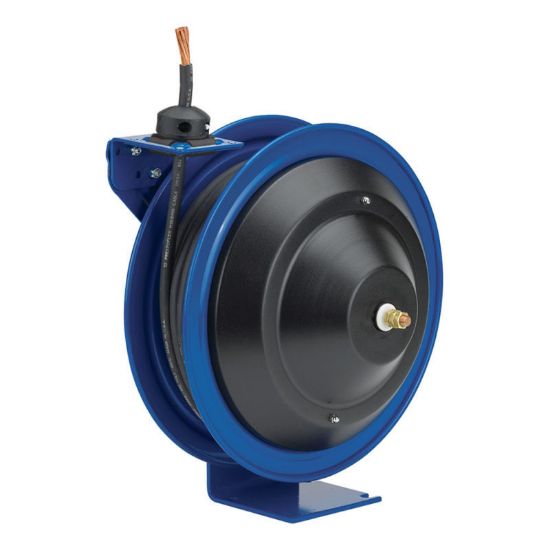

Coxreels P-WC17-5001 Spring Rewind Welding Cable Reel with 1 Gauge x 50' Cable Included

***MADE IN THE USA***

The COXREELS P-WC17-5001 spring driven welding cable reel helps to protect and extend the life of your welding cable by neatly and conveniently storing it on a 50' self-retracting welding cable reel. The cable supplied on this reel is 1 gauge and 50' long and the electrical current runs through a 450 AMP rated slip ring

Design and Structure - P-WC17-5001:

  • Designed for electrode & grounding lead applications
  • Single pedestal reel with space saving design facilitates workplace organization
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Signature Features:

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer's limited warranty
  • Made in the U.S.A. - Sold & Supported Worldwide

Retraction:

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position non-sparking lock ratchet mechanism secures hose at desired length

Fields of use and applications:

  • Manufacturing Plants
  • Welding / Service Trucks
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations
  • Welding Shops
  • Garage Settings
  • Pipelines
  • Mining, Construction & Railroad Operations
  • Automotive & Fleet Maintenance

P-WC17-5001 Specifications

  • Cable Included? YES
  • Cable Size: 1 Gauge
  • Cable Length: 50'
  • Designed for : Welding Cable
  • Maximum Amps: 300 Amps
  • Maximum Volts: 600v
  • Dimensions - 11"(W) 18.25"(H) 17.25"(L)
  • Weight - 60 lbs
