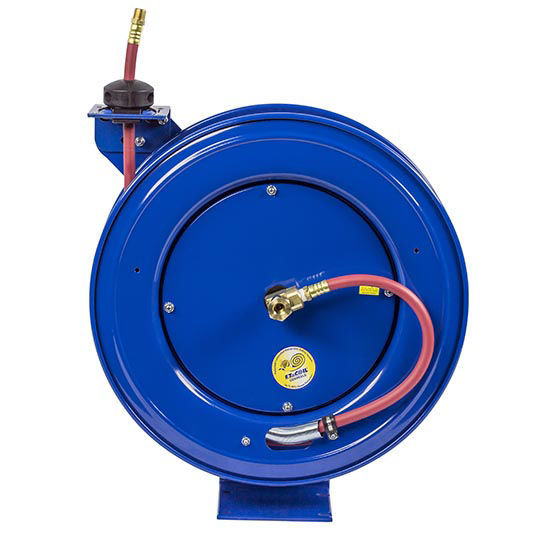

COXREELS EZ-SH-375 Heavy Duty Air Compressor Hose Reel with EZ-Coil Rewind Safety System, .38" X 75' Air Hose

COXREELS Heavy Duty Spring Driven Air Compressor Hose Reel with EZ-Coil Rewind Safety System, EZ-SH-375, 3/8" X 75' Air Hose

***MADE IN THE USA***

The EZ-SH-375 utilizes the EZ-Coil Rewind System - the hose retracts 80% slower than a traditional hose reel, preventing hose whip and reducing the chance of injury.

The COXREELS SH Series is one of the highest quality air compressor hose reels on the market. The SH “Super Hub” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel. This reel is ideal for facilities that utilize the reels every day and are looking for a high quality 3/8" air hose reel that will last!

COXREELS Safety Series reels featuring the patented EZ-Coil® Rewind Safety System, engineered and developed exclusively by Coxreels, are the only choice for safe spring driven hose, cord, and cable reel operation in the workplace. EZ-Coil® works uni-directionally without any increase to the amount of resistance when pulling out the hose, cord, or cable. But, when engaged upon recoil, it controls the aggressive spring motor energy resulting in a reel that retracts at a safe and steady pace!

Swivel design - External fluid path machined from solid brass, 90º full flow NPT swivel inlet. Made of nitrile.

Design and structure - Sturdy single pedestal reel with space saving design helps facilitate workplace organization. Guide arm adjusts to wall, floor, vehicle and overhead positions for installation where you need it. Solid one piece heavy gauge 1/4" steel base and support for maximum stability. 1" Solid steel axle and lubricated precision bearings for smooth rotation.

How the EZ-COIL Improves Safety:

• Reduce retraction speed by up to 80%
• Control hose or cord whip hazard
• Requires no external power source
• Enhance operator & workplace safety
• Keep your workplace organized
• Utilize space & maximize efficiency
• Improve hose, cord, & cable management
• Extend longevity of hose, cord, & cable
• Increase productivity

Signature Features - EZ-SH-375:

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide
• Swivel- Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CNC Spun Discs - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4" Solid Steel Base - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
• Multi-position Guide Arm - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings

Fields of application:

• Air/Water Services
• Pneumatic Tools
• Washdown
• Lubrication
• Service / Mechanic / Utility Vehicles
• Chemical Fluid Transfer
• General Industrial
• Manufacturing Plants & Facilities
• Maintenance, Repair & Operations
• Automotive & Fleet Service Centers

Specifications - EZ-SH-375

• Hose Included? YES
• Hose Length - 75'
• I.D. - 3/8"
• O.D. - 5/8"
• Maximum PSI - 300
• Dimensions - 8.25"(W) 25.5"(H) 24"(L)
• Weight - 65 lbs
