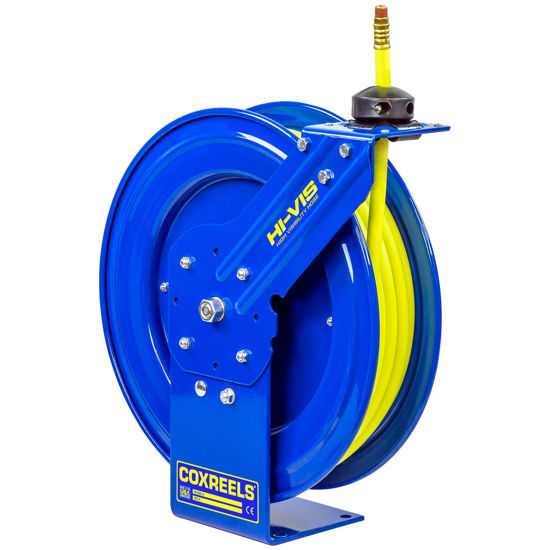

Coxreel P-LP-425-HV Hi-Vis Spring Driven Air Compressor Hose Reel, .50" x 25', 300psi, Safety Hose

SKU: P-LP-425-HV
Part #: P-LP-425-HV
Old price: $366.00
$281.00
Ship to
*
*
Shipping Method
Name
Price
No shipping options
Manufacturer: COXREELS

Coxreel P-LP-425-HV Spring Driven Air Compressor Hose Reel with Hi Vis Safety Hose, 1/2" x 25', 300psi

***MADE IN THE USA***

This CoxReel P Series “Performance” spring driven hose reel has a long history of dependability and trouble free performance. The compact space-saving size and heavy duty construction makes this air compressor hose holder highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it’s worldwide reputation as the most trusted hose reel.

This reel includes COXREELS Hi-Vis safety air hose. COXREELS HV "High Visibility" Safety Hose Series powers up the safety of your reel. The HV Hose will add awareness and visibility to your hose creating the safest environ­ment possible. When not in use your hose and cable is safely retracted on your Coxreels reel, but when in use the hose can become a hazard. With the addition of high visibility hose to your hose reel, awareness and visibility are increased to create the safest environment possible. The air hose included with this reel is a hybrid PVC+rubber blend. This provides better flexibility, improved kink resistance and better stacking compared to a normal hose.

Swivel design - External fluid path machined from solid brass, 90º full flow NPT swivel inlet. Made of nitrile.

Design and structure - Sturdy single pedestal reel with space saving design helps facilitate workplace organization. Guide arm adjusts to wall, floor, vehicle and overhead positions for installation where you need it. Solid one piece heavy gauge 1/4" steel base and support for maximum stability. 1" Solid steel axle and lubricated precision bearings for smooth rotation.

Retract - Enclosed factory tuned and matched cartridge style spring motor. Non corrosive stainless steel spring, pawl and zinc plated ratchet. Multi position lock ratchet mechanism secures hose at desired length.

Spring Driven Features:

  • High Visibility Air Hose Included - 1/2" x 25'
  • Auto Rewind Easily Wraps, Stores & Protects Hose
  • Heavy Gauge 1/4” Steel Base & Support Post
  • Factory-Matched Cartridge-Style Spring Motor
  • Brass NPT Swivel Inlet Machined From Solid (Zinc Plated Steel On HP Models)
  • 1” Solid Steel Axle With 1” Lubricated Precision Bearings
  • Guide Arm Adjusts To Wall, Floor & Overhead Positions
  • Multi-Position Lock Ratchet Secures Hose At Desired Length
  • Non-Corrosive Stainless Steel Spring, Pawl & Zinc Plated Ratchet

P-LP-425-HV Specifications

  • Hose Included? YES
  • Hose Length - 25'
  • I.D. - 1/2"
  • O.D. - 13/16"
  • Maximum PSI - 300
  • Dimensions - 7"(W) 18.63"(H) 17.13"(L)
  • Weight with hose - 45
