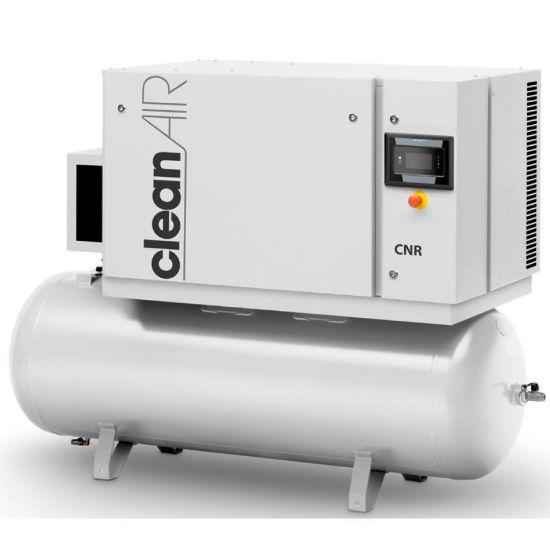

Chicago Pneumatic 7.5hp Oil Free Quiet Air Compressor, CleanAIR Piston Oilless, 23.3cfm, 71 Gallon Tank Mounted145psi, CNR 75

SKU: CNR 75-TM
Part #: CNR 75-TM
Old price: $14,895.00
$11,195.00
Call to order 800-542-8300

Chicago Pneumatic CNR 75, 7.5hp Oil Free Piston Air Compressor, 71 Gallon Tank Mounted CleanAIR Series, 23.3 cfm

Industries such as food and beverage, electronics and textiles cannot risk any chance of oil contamination in their processes. It is essential that their compressed air is 100% oil-free. Outstanding reliability, and low maintenance and operating costs make oil-free compressors a sound investment. Designed with premium quality components and for heavy duty use, the new CleanAIR CNR offers 100% oil-free air for a range of industrial applications. Thanks to its smart design, low energy consumption and minimal maintenance requirements, cost and environmental impact are kept at a minimum.

Absolutely clean air
When your operations require unquestionably clean air, “technically oil-free” really won't do. Oil-injected compression, even filtered, cannot guarantee that all oil vapors, aerosols and other contaminants are removed from the air. Thanks to the innovative oil-free technology built into the CleanAIR CNR, you can be sure of absolutely clean air.

Low noise
Thanks to its sound-attenuating materials and canopy, the CleanAIR CNR offers noise levels as low as 67 dB(A). With this silent performance previously unattainable for an oil-free piston compressor, the CleanAIR CNR is suitable for sound sensitive environments.

High efficiency

Energy use matters, as it constitutes the highest cost of running a compressor. The direct driven CleanAIR CNR comes with a number of innovations (one-bearing motor, load/top technology, etc.) to reduce energy consumption to an impressive minimum.

Advanced CleanAIR technology It's what inside that counts. And inside the CNR you will find the very best in oil-free compression technology - to give you the
quality air you can count on every day.

A robust pump

  • Lightweight aluminium pump prevents the formation of condensate, extending the lifetime of your equipment.
  • Stainless steel disk valves offer strong performance and reliability, and easy maintenance.
  • Heavy-duty, sealed-for-life crankshaft ball bearings ensure air quality while minimizing service needs.
  • V-shaped pistons reduce vibrations to a minimum.
  • Advanced high-quality pump materials maximize performance and lifetime.

A drive built for operational efficiency

  • Direct drive motor without transmission losses delivers big energy savings.
  • The transmission is directly flanged to the pump to reduce energy losses and use.
  • The motor is IP55/4-pole/insulation class F to ensure reliable operation in harsh conditions.
  • Mounted on an anti-vibration pad, the motor is designed to keep sound levels at a comfortable minimum

The CNR75 comes as standard with the state-of-the-art Airlogic2T touchscreen controller, giving you on-screen and remote insight into the performance of your compressor:

  • Large 4.3” full-color touchscreen display.
  • 30+ languages.
  • Warning indications and shutdown alarms.
  • Service status and schedule indication.
  • Online visualization of running conditions.
  • Compressor data analysis.

The CNR 75 is a tank mounted style air compressor and is installed on a 71 gallon ASME epoxy coated storage tank. This model can run on either 230v or 460v three phase power. The factory part number for the 230v model is 8115462577 and the internal part number for the 460v model is 8115462593

Products specifications
AvailabilityShips From Manufacturer
Voltage Frequency60Hz
Sound Level67dBA
Air Connection3/4" NPT
PhaseThree
Voltage230/460
Duty Cycle100% Continuous Duty
CFM @ 145 PSI23.3
Drive StyleDirect Drive
ConfigurationHorizontal
Horse Power7.5
Max Pressure (PSI)145
Dimensions69" x 32" x 52"
