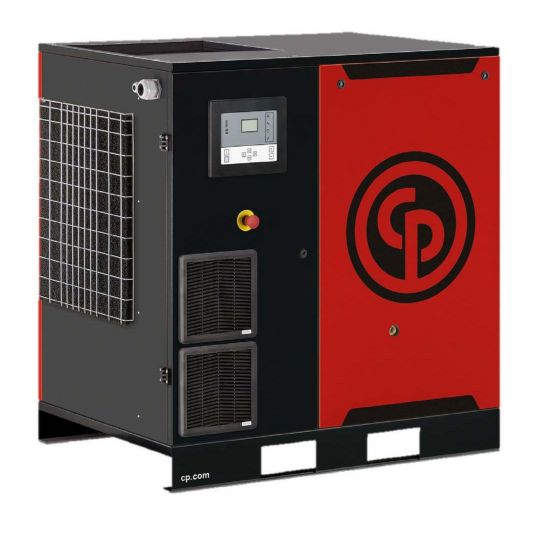

Chicago Pneumatic 20hp Variable Speed Drive VSD Rotary Screw Air Compressor with Integrated Air Dryer, Direct Drive, 28-102 cfm, CPVSd 21D BM

SKU: CPVSd 21D BM
Part #: CPVSd 21D BM
Old price: $29,574.00
$22,180.00
Call to order 866-203-2944

Chicago Pneumatic 20hp Variable Speed Drive Rotary Screw Air Compressor With Integrated 28-101 CFM - CPVSd 21BM

The Chicago Pneumatic CPVSd 21D BM variable speed direct drive compressor (CPVSd) with dryer allows you to save operating costs when your application does not require the compressors full capacity. The ES4000 microprocessor controller automatically maintains your desired system pressure and provides only the air that your system requires on a smooth consistent basis. Variable speed technology coupled with a direct drive transmission results in energy savings of up to 30%. The CPVSd 20hp compressor can function as a stand-alone machine or networked to a base-load compressor where it can function as a trim machine.

This CPVSd 21D BM is a 20hp varible speed drive compressor. It is rated to displace up to 101 cfm and will regulate its output between 28-101 cfm depending on your plants requirement and pressure setpoint. You can easily adjust the pressure via the microprocessor controller.

The CPVSd 21D BM series is managed by the ES4000 Advanced, an electronic control unit programmed for energy saving operation with intelligent shutdown. The ES4000 Advanced control can be programmed to shutdown in accordance with your plant air demand and reduce long periods of unloaded operation, reducing power cost. The ES4000 Advanced control feature can save a customer thousands of dollars per year.

Compressed air drives your processes and with it, the operational efficiency and performance of your company. With this principle in mind, Chicago Pneumatic has designed the CPVSd, a range of variable speed, oil-injected screw compressors with IP55 TEFC motor technology to offer your business a compressed air solution that adds value and saves you money at the same time.

The internal factory part number for this compressor is 4152032704. This model comes base mounted and is meant to be tied in with a separate air receiver. This model runs at a very low noise level of only 68 dBA.

The CPVSd 21D BM comes complete with a high performance refrigerated air dryer. Purchasing an air compressor that comes complete with an air dryer saves on floor space and reduces the cost of installation. The integrated refrigerated air dryer ensures clean and moisture free air is sent downstream.

Savings Through Energy Features:
Energy cost represent about 70% of the total operating cost of your compressor over a five (5) year period. That is why reducing the operating cost of a compressed air solution should be a major focus. The CPVSd 21 Variable frequency driven compressors can “cut” your energy bill by up to 30%.

Standard Features of the CPVSd 21D BM

  • Low sound enclosure, as quiet as 68 dB withoptional silencing baffle
  • Direct drive transmission for energy savings andreduced maintenance cost
  • 73-182 psig pressure range
  • ES4000 microprocessor controller
  • 460V / 3 phase main drive power
  • IP55 TEFC High Frequency Motors designed forvariable speed use
  • Heavy duty, 2-stage pre-filtration
  • Shipped with synthetic oil for reduced service costs
  • Easily accessible integrated inverter drives
  • Stable pressure due to Variable Speed drive
  • Integrated refrigerated air dryer
Products specifications
Duty Cycle100% Continuous Duty
Voltage Frequency60Hz
PhaseThree
Voltage460/3/60hz
Connection Size1" NPT
Sound Level68dBA
ConfigurationBasemount (tankless)
CFM Range100+
Drive StyleVariable Speed Drive / VSD
CFM @ 100 PSI101.6
Integrated DryerYes
Horse Power20
Max Pressure (PSI)175
PhaseThree
Dimensions54"L x 33"W x 48"H
Weight838 lbs
