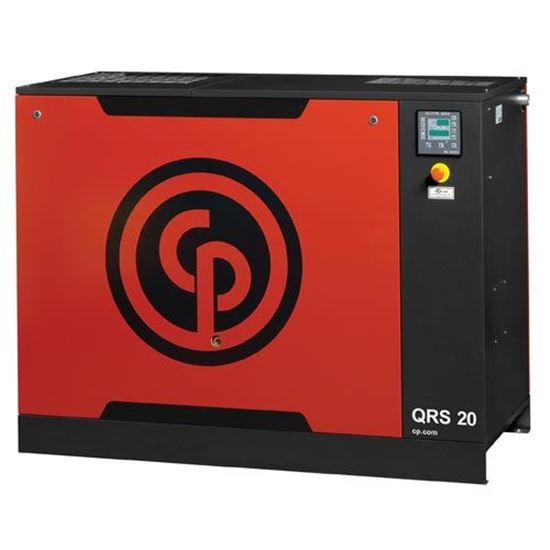

Chicago Pneumatic 20HP Base Mount Rotary Screw Air Compressor with Dryer

Part #: QRS20HPD

Sorry - this product is no longer available

Please use QRS 20D 125

Chicago Pneumatic 20HP Quiet Rotary Screw Air Compressor with Dryer - QRS20HPD

The QRS-20 Chicago Pneumatic quiet rotary screw air compressor combines solid performance with long durability. Ideal for applications that need consistant and reliable air, the QRS is engineered and built to support the most demanding requirements.Ideal for automotive and industrial applications, the QRS is engineered and built to support the most demanding requirements.

The QRS-20 is managed by the ES3000, an electronic control unit programmed for energy saving operation with intelligent shut-down. It is known that when the motor is not running it does not consume electric power so the goal of the ES3000 is to let the electric motor work for the shortest period of time during idle operation. The intelligent shut-down feature can save a customer hundreds of dollars per year.

The QRS20HPD runs cool and quiet. The dedicated turbine fan provides superior cooling for the entire compressor package while the high efficiency air/oil coolers ensure the 8,000 synthetic lubricant transmits heat away from the airend. This rotary air compressor features a five year standard warranty.

Chicago Pneumatic rotary screw compressors come with a 1-Year Warranty with the option to extend to a full 5-year warranty

Standard Features

  • Low Sound Enclosure
  • 100-175 psig
  • Wye-Delta, reduced voltage start
  • Tri-Voltage, TEFC Motor
  • Continuous operating capability
  • Air-cooled aftercooler
  • Separator with oil sight glass
  • Space Saving Design around 12 sq. ft.
Products specifications
Part Number 4152027008
Horse Power 20
Max Pressure (PSI) 125
CFM @ 125 PSI 80
Voltage 208/230/460
Phase Three
Configuration Basemount (tankless)
Dimensions 66L x 42W x 48H
Weight 1392 lb
Choose from:
Standard Warranty -
  • 1-year or 4000 running hours against manufacturer defects.
Extended CP SECURE 5 Year Warranty* -
  • Complete compressor covered for 1-Year.
  • Major parts covered for 60 Months.
*Eligibility for the CP SECURE 5 Year Warranty requires:
  • Authorized distributor start-up of compressor ($350 Start-up Fee).
  • Maintenance in accordance with instruction manual.
  • Conduct annual oil analysis.
  • Use only genuine CP parts.
