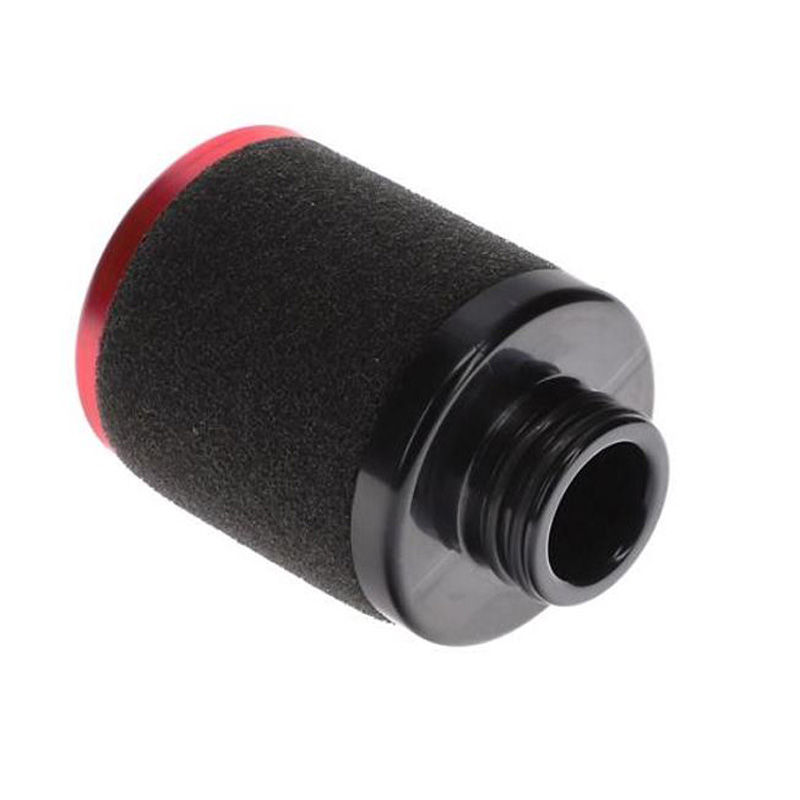

Chicago Pneumatic .01 micron 25 CFM Inline Replacement Coalescing Filter Element

Chicago Pneumatic OEM 2258 2932 01 Coalescing Oil Removal Filter Element .01 micron 25 CFM

2258 2932 01 is a replacement coalescing oil removal inline filter element for the Chicago Pneumatic 25cfm filter housing. This part number is sometimes listed as 2258293201 or 2258-2932-01

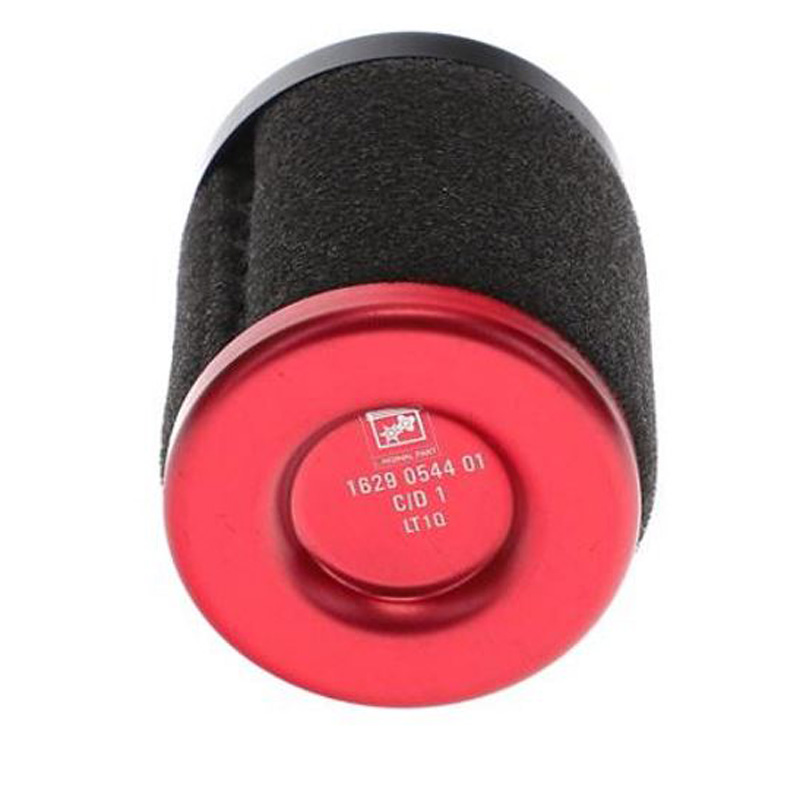

The actual part number stamped on the bottom of your old filter element may be shown as 1629 054 01. If so, purchasing 2258 2932 01 is the correct item. Your housing may also state to use element replacement kit part # 2258 2901 23. 2258290123 supersedes to this item number 2258 2931 01.

This element will work with the follow air filter housings with 3/8" NPT threads:

• Chicago Pneumatic C 25 with housing number 8102 8530 51
• Chicago Pneumatic D 25 with housing number 8102 8531 84
• Quincy QCF 25 with housing number 8102 8468 57
• Pneumatech TF PF 1 C HE with housing number 8102 8265 37
• Pneumatech TF PF 1 C S with housing number 8102 8280 95
• Pneumatech TF PF 1 D HE with housing number 8102 8266 69
• Pneumatech TF PF 1 D S with housing number 8102 8282 28

This item includes the internal replacement element with o-rings on the stem, an additional drain o-ring, and a replacement o-ring that goes around the filter housing to create a leak free seal. The factory recommends changing this filter out a minimum of once per year or every 4,000 operating hours, whichever occurs first. Replacing the element will ensure all dust is removed down to .01 micron and all oil is removed down to .01 ppm (parts per million). By proactively changing the internal element, you will decrease the pressure drop going across the filter, therefore increasing your energy efficiency.

This is an OEM part made by Chicago Pneumatic and Pneumatech. This filter element was also used on several Atlas Copco and Quincy products. Please contact our parts department if you would like verification on which item is correct for your filter.
