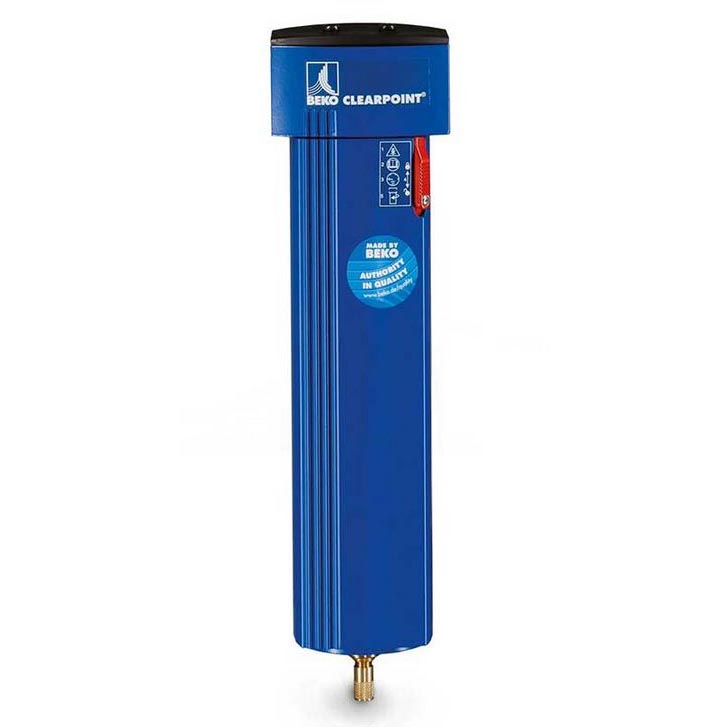

The BEKO CLEARPOINT 3eco M012 coalescing filter is an 200cfm .01 micron compressed air filter designed to remove dust, debris, moisture and oil from your compressed air system. This is classified as an SX grade fine filter, rated to .01 micron particle removal and .005mg/m3 oil carryover remove. The M012 is one of the highest quality and advanced compressed air filter on the market. Taking advantage of new material and production technologies as well as a flow-optimised, corrosion-protected housing design,CLEARPOINT® 3eco provides safe and reliable filtration and a qualitative improved compressed air with considerably reduced operating costs. An automatic float drain is pre-installed to drain out the moisture automatically without the need of electricity or compressed air.
The M012 coalescing oil removal filter is typically installed after a refrigerated air dryer or before a critical piece of production equipment where clean/dry air is required.
If you are in need of internal replacement filter elements, the part number is 4038114
CLEARPOINT 3eco – Low Operating Costs by Utilising Optimised Differential Pressure:
The decisive factor when evaluating the service life costs for compressed air filters is the energy consumption which occurs during differential pressure. This differential pressure with the new CLEARPOINT® 3eco filter elements is particularly low. The energy consumption resulting from the filter hereby sinks by up to 50 % compared to standard filters on the market. The filters can be implemented as designed for energy efficient or performance oriented.
Considerable cost reductions by utilising the new CLEARPOINT 3eco Generation:
The new CLEARPOINT® 3eco filter lowers the operating costs considerably more than standard compressed air line filters. The annual energy savings are sometimes even higher than the purchasing price for the filter elements. They also increase the process safety and efficiency accordingly.
The Tried and Tested Filter Housing with Energy Savings and Safety in Mind:
Specifications - M012 4002955 Coalescing Oil Removal Purpose Filter:
