Atlas Copco SF6 7.5HP Rotary Scroll Oil Free Compressor 16.1cfm 145psi 3Phase 59dBA 8153611341

Atlas Copco SF6 7.5HP Rotary Scroll Oil Free Compressor 16.1cfm 145psi 3Phase 59dBA 8153611341

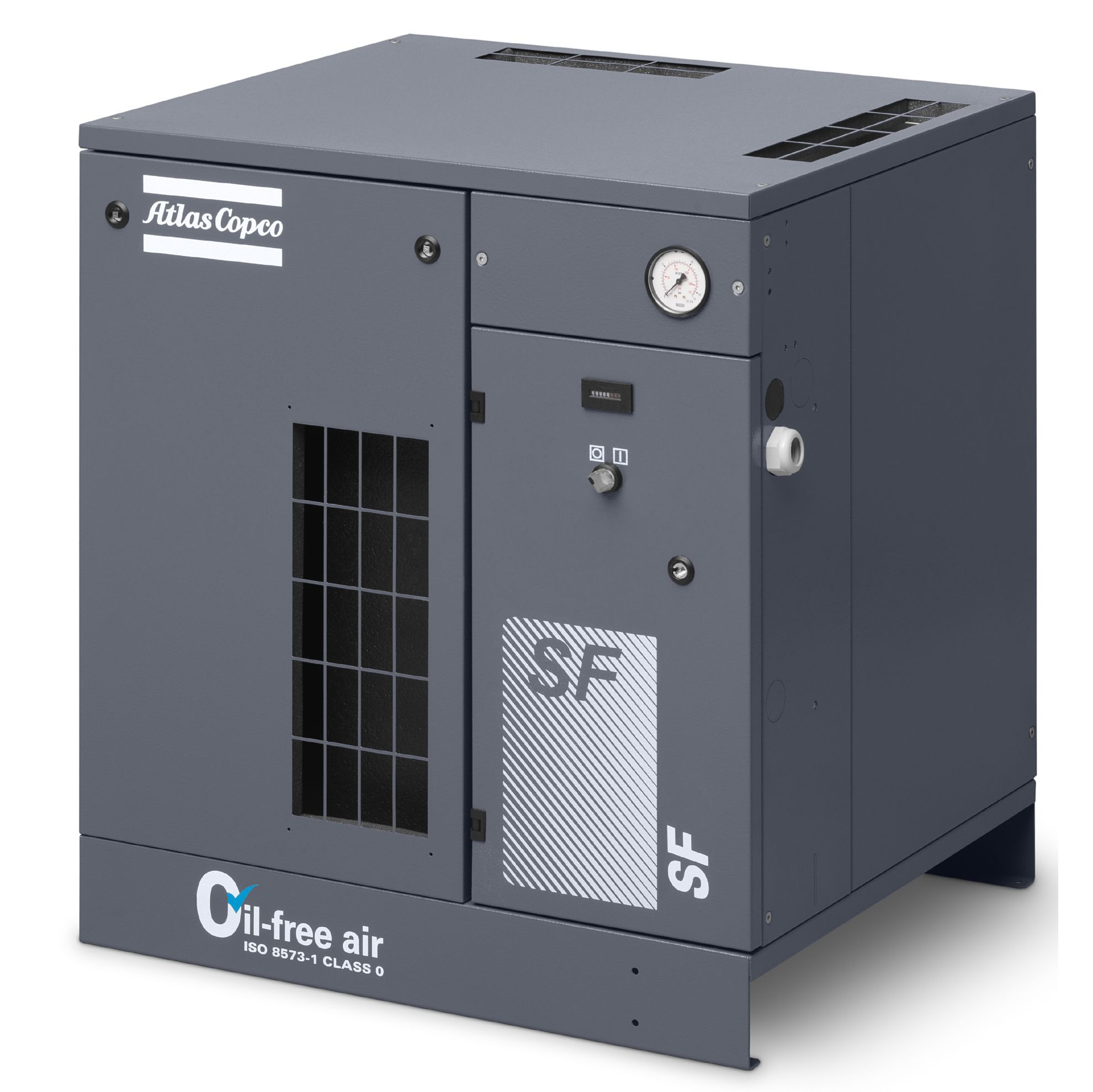

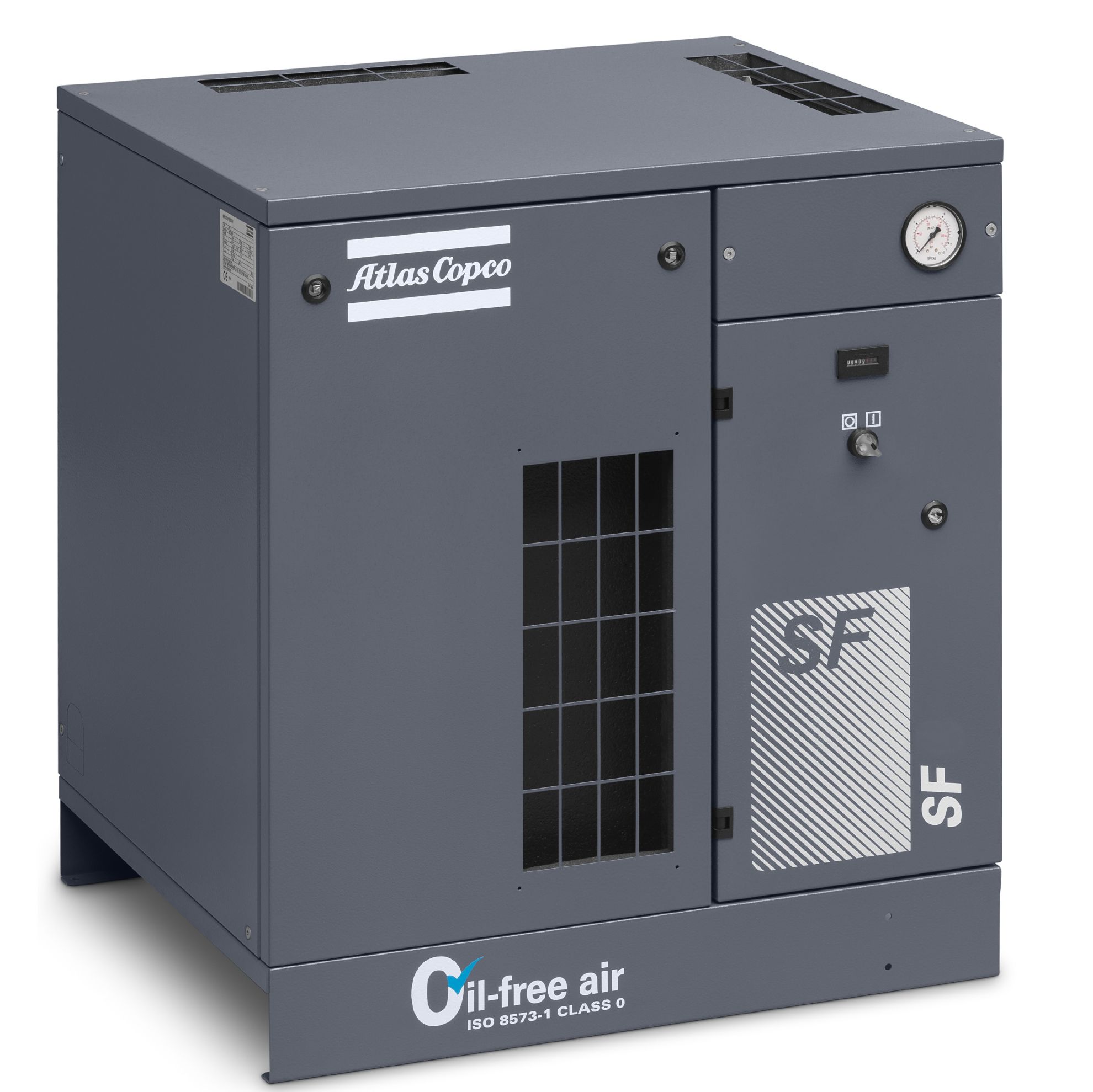

The Atlas Copco SF6 is a 7.5hp oil free rotary scroll air compressor rated to displace 16.1 cfm with a maximum pressure of 145psi. The compressor is baseplate mounted without a receiver tank and operates on 208-230-460v 3 phase power.

The Atlas Copco SF6 oil-free scroll compressor provides clean, dependable compressed air in a compact and exceptionally quiet floor-mounted package. Powered by a 7.5 HP IE3 TEFC motor, this air-cooled compressor delivers approximately 16.1 CFM at 145 PSI with a maximum operating pressure of 145 PSI. Its tri-voltage motor supports 208, 230, or 460-volt, three-phase power, making it adaptable to a wide range of commercial and industrial facilities.

Because oil is not introduced into the compression chamber, the SF6 delivers ISO 8573-1 Class 0 oil-free compressed air, helping eliminate the risk of oil contamination in sensitive products, processes, and pneumatic equipment. The scroll element also produces a smooth, continuous flow of pulse-free compressed air with fewer moving parts than many conventional compressor designs.

This Pack configuration does not include an integrated refrigerated air dryer or air receiver tank. It is intended for floor mounting and can be connected to a properly sized external receiver and downstream air-treatment system. This configuration is an excellent option for facilities that already have a central air receiver, dryer, and filtration system—or that need the flexibility to select air-treatment equipment for a specific dew point or air-quality requirement.

Note: The model number references SF6 which is the kW rating for a 7.5HP motor. This SF6 does not include the Elektronikon Touch controller.

Key Features & Benefits: Atlas Copco SF6 145psi / 8153611341

• Class 0 oil-free air: Protects sensitive processes from oil introduced by the compressor.
• 7.5 HP scroll compressor: Delivers approximately 16.1 CFM at 145 PSI.
• Tri-voltage electrical configuration: Compatible with 208/230/460V, three-phase, 60 Hz power.
• IE3 TEFC motor: Premium-efficiency, totally enclosed fan-cooled motor for dependable industrial operation.
• Tankless Pack configuration: Connects to a separately sized external compressed-air receiver.
• Integrated aftercooler: Helps reduce compressed-air discharge temperature before air enters downstream equipment.
