Atlas Copco SF4+ 5HP Rotary Scroll Oil Free Compressor 14cfm 116psi 3Phase 58dBA 8153611317

Atlas Copco SF4+ 5HP Rotary Scroll Oil Free Compressor 14cfm 116psi 3Phase 58dBA 8153611317

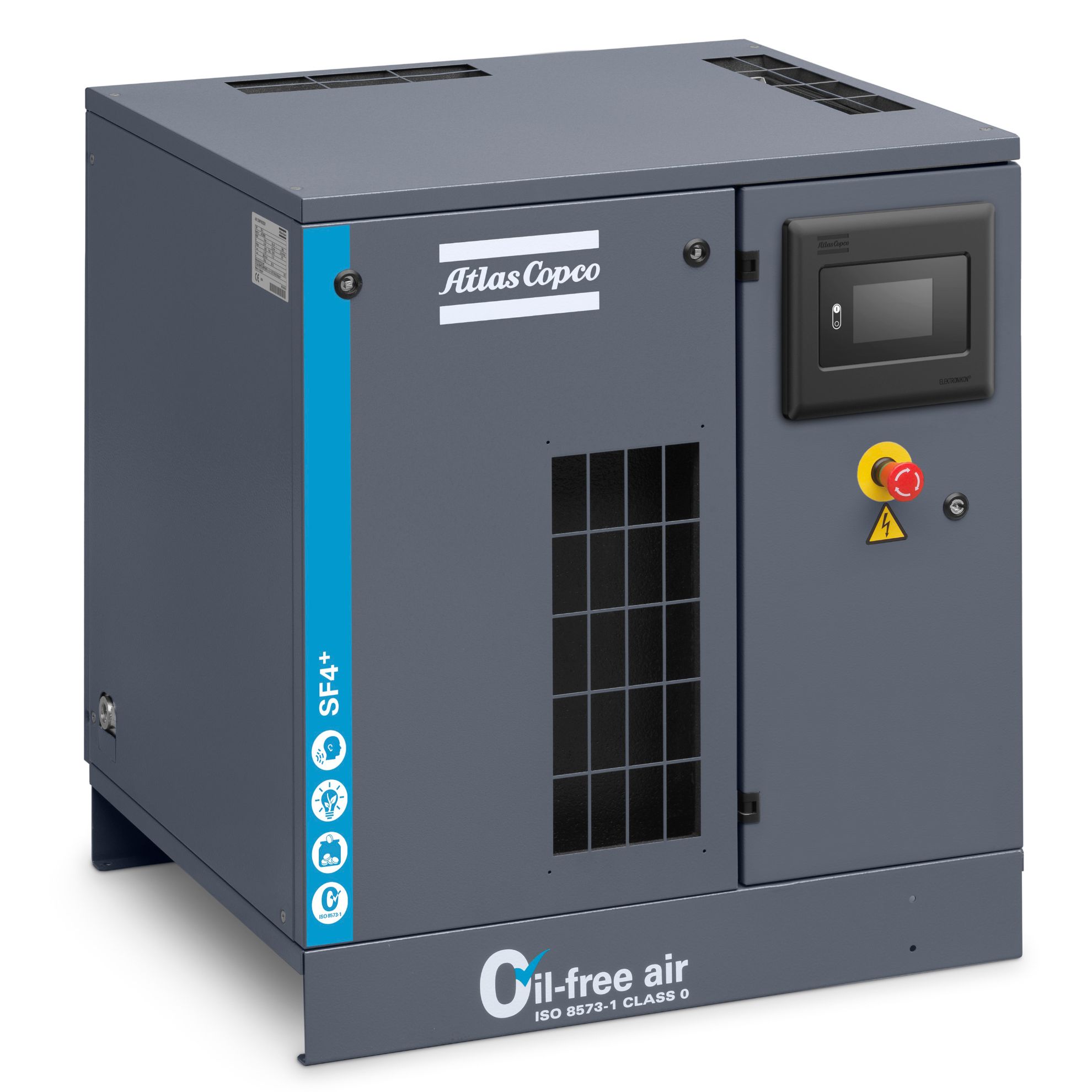

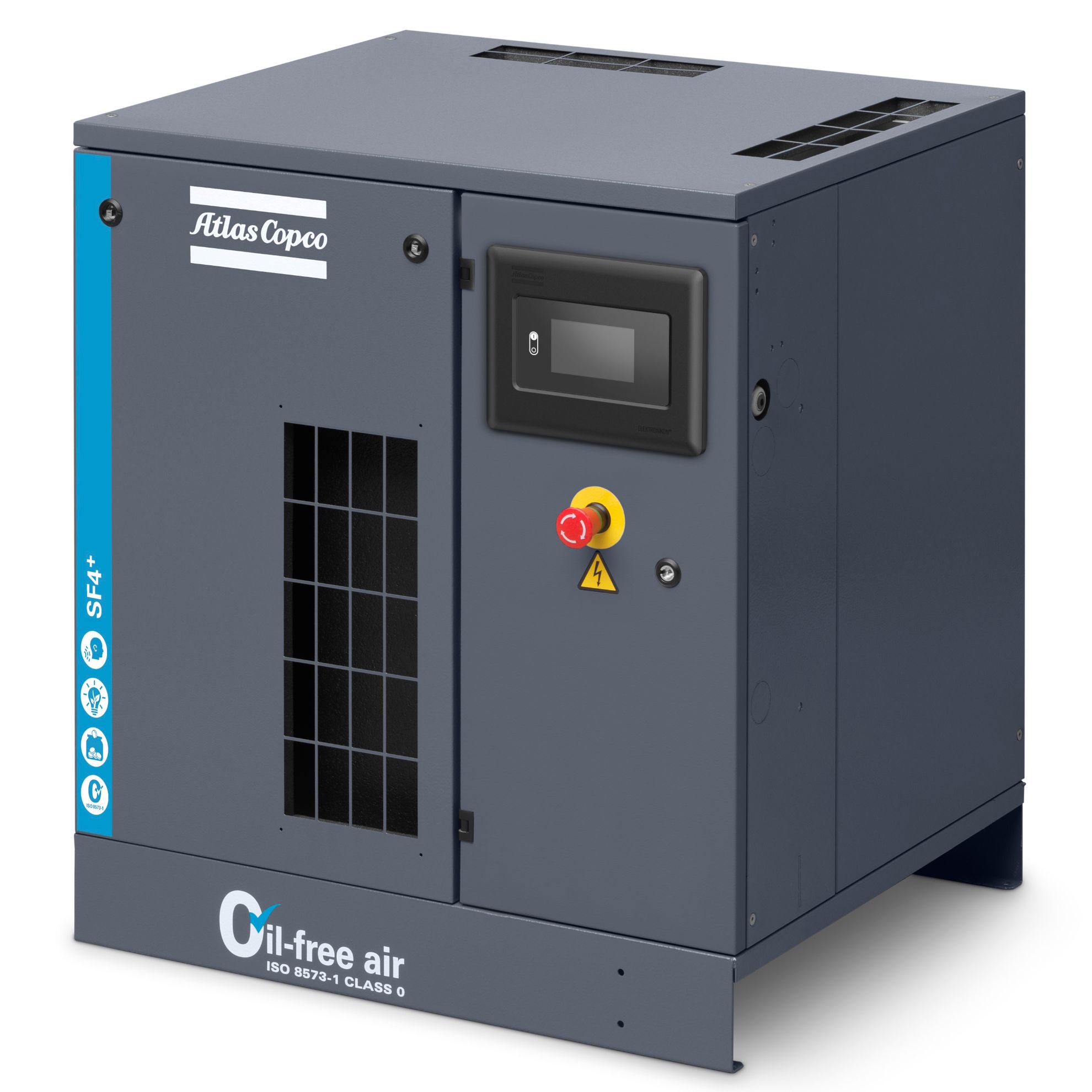

The Atlas Copco SF4+ is a 5hp oil free rotary scroll air compressor rated to displace 14cfm with a maximum pressure of 116psi. The compressor system includes the Elektronikon Touch controller and is baseplate mounted without a receiver tank.

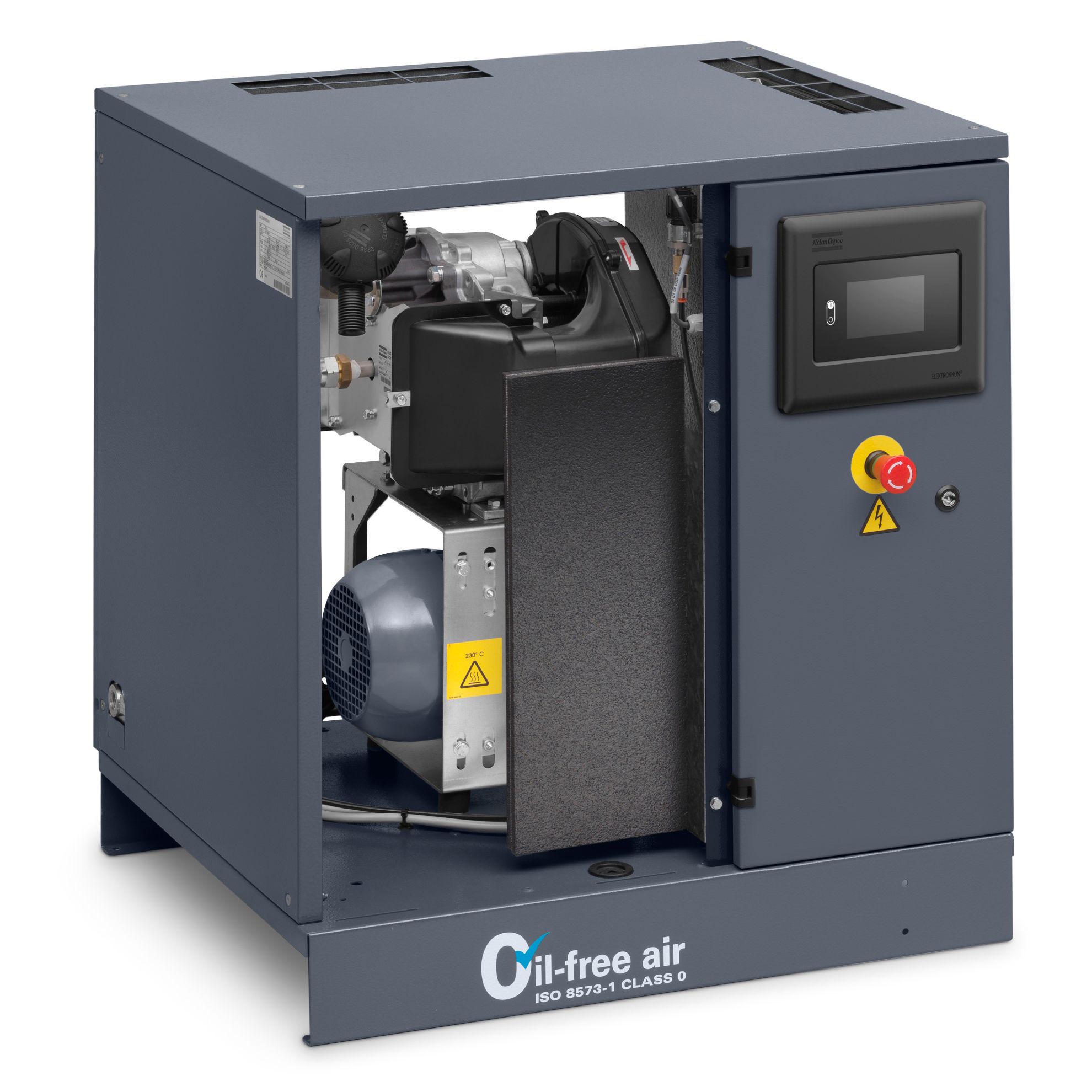

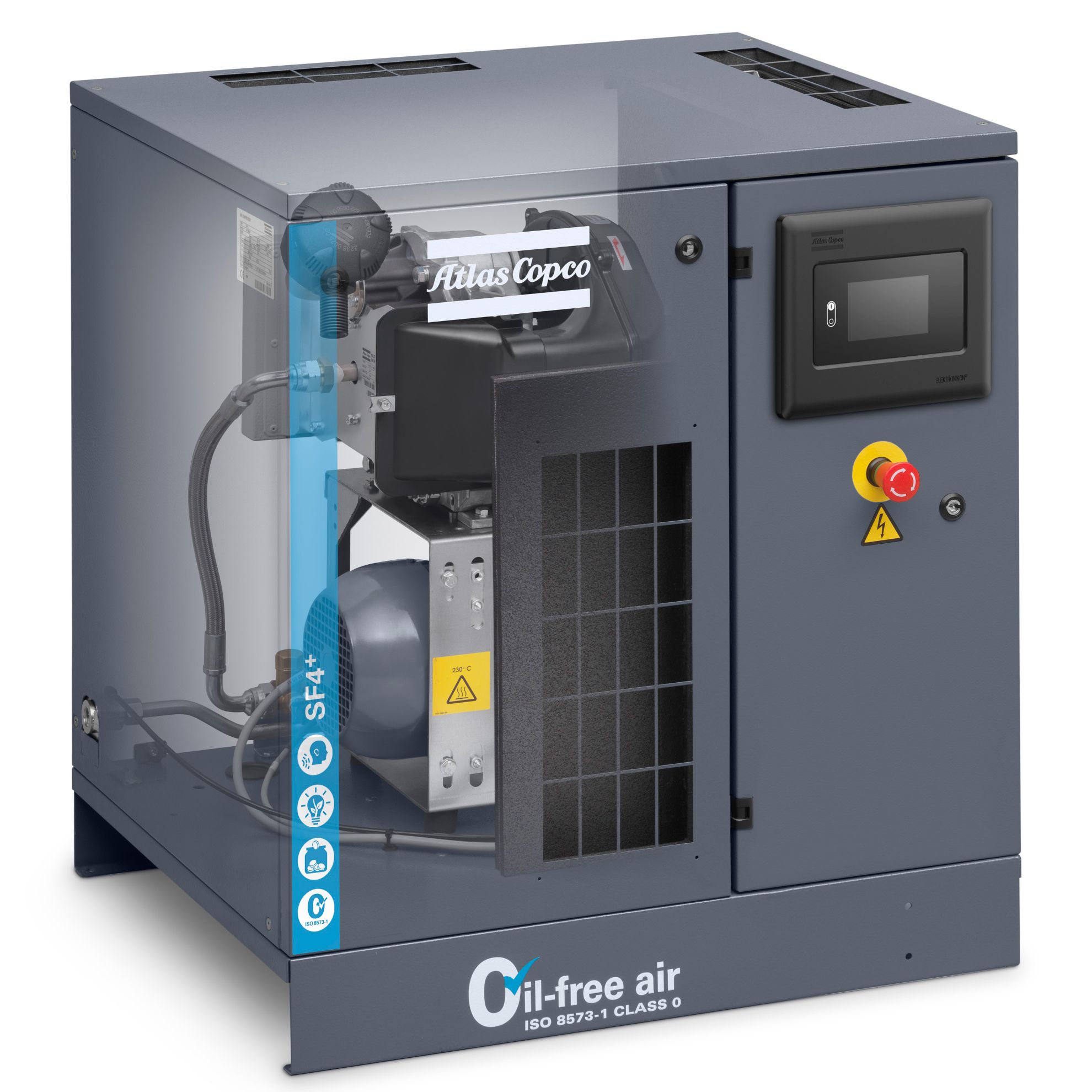

The Atlas Copco SF4+ oil-free scroll compressor provides clean, dependable compressed air in a compact and exceptionally quiet floor-mounted package. Powered by a 5 HP IE3 TEFC motor, this air-cooled compressor delivers approximately 14 CFM at 100 PSI with a maximum operating pressure of 116 PSI. Its tri-voltage motor supports 208, 230, or 460-volt, three-phase power, making it adaptable to a wide range of commercial and industrial facilities.

Because oil is not introduced into the compression chamber, the SF4+ delivers ISO 8573-1 Class 0 oil-free compressed air, helping eliminate the risk of oil contamination in sensitive products, processes, and pneumatic equipment. The scroll element also produces a smooth, continuous flow of pulse-free compressed air with fewer moving parts than many conventional compressor designs.

This Pack configuration does not include an integrated refrigerated air dryer or air receiver tank. It is intended for floor mounting and can be connected to a properly sized external receiver and downstream air-treatment system. This configuration is an excellent option for facilities that already have a central air receiver, dryer, and filtration system—or that need the flexibility to select air-treatment equipment for a specific dew point or air-quality requirement.

The included Elektronikon Mk5 controller provides clear operating information, warning notifications, service indicators, scheduling capabilities, and remote connectivity options. A sound-insulated enclosure keeps operating noise to approximately 58 dB(A), allowing the compressor to be installed closer to the point of use than many traditional industrial compressors.

Note: The model number references SF4+ which is the kW rating for a 5HP motor. This SF4+ includes the Elektronikon Touch controller where the standard SF4 (Non +) does not include the controller.

Elektronikon Touch Microprocessor Controller

The SF4+ 5HP oil free rotary scroll compressor includes an Elektronikon Touch controller. The Touch controller features a 4.3-inch high-definition color display, clear service indicators, scheduling capability, Ethernet-based visualization, and remote connectivity functions. Combined with SMARTLINK remote monitoring, it gives users better visibility into compressor status, service timing, and operating efficiency, which is especially valuable for small plants and busy service shops trying to minimize downtime.

• 4.3-inch high-definition color display makes compressor status, settings, and alarms easier to read at a glance.
• Clear pictograms and service indicator helps operators quickly understand machine condition and upcoming maintenance needs.
• User-friendly multilingual interface improves ease of use for a wider range of operators and facilities.
• Four different week schedules for 10 consecutive weeks allows users to match compressor operation to plant hours and reduce runtime.
• Ethernet-based compressor visualization makes it easier to monitor machine performance through a network connection.
• Remote control & connectivity functions gives flexibility in managing compressor performance and status without being directly at the machine.
• SMARTLINK remote monitoring gives access to alerts, maintenance follow-up, machine health, and efficiency insights from a computer or mobile device.

Key Features & Benefits: Atlas Copco SF4+ / 8153611317

• Class 0 oil-free air: Protects sensitive processes from oil introduced by the compressor.
• 5 HP scroll compressor: Delivers approximately 14.3 CFM at 100 PSI.
• Tri-voltage electrical configuration: Compatible with 208/230/460V, three-phase, 60 Hz power.
• IE3 TEFC motor: Premium-efficiency, totally enclosed fan-cooled motor for dependable industrial operation.
• Elektronikon Touch controller: Provides compressor monitoring, warnings, service information, scheduling, and connectivity functions.
• Tankless Pack configuration: Connects to a separately sized external compressed-air receiver.
• Integrated aftercooler: Helps reduce compressed-air discharge temperature before air enters downstream equipment.
