Atlas Copco SF2 3HP Oil Free Rotary Scroll Compressor 230v 1 phase, 7.2cfm 145psi 56dBA 8153611184

Atlas Copco SF2 3HP Oil Free Rotary Scroll Compressor 230v 1 phase, 7.2cfm 145psi 56dBA 8153611184

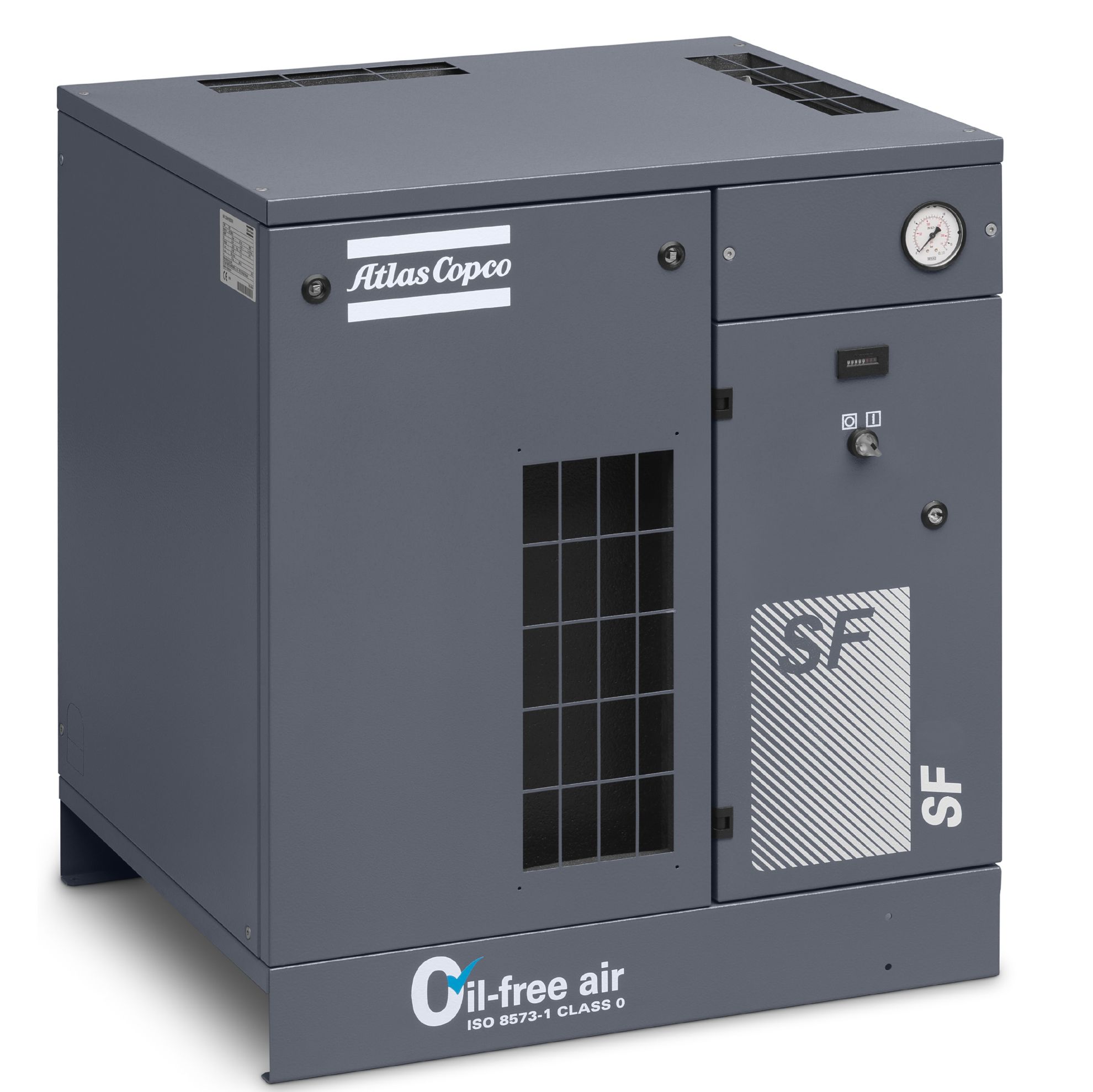

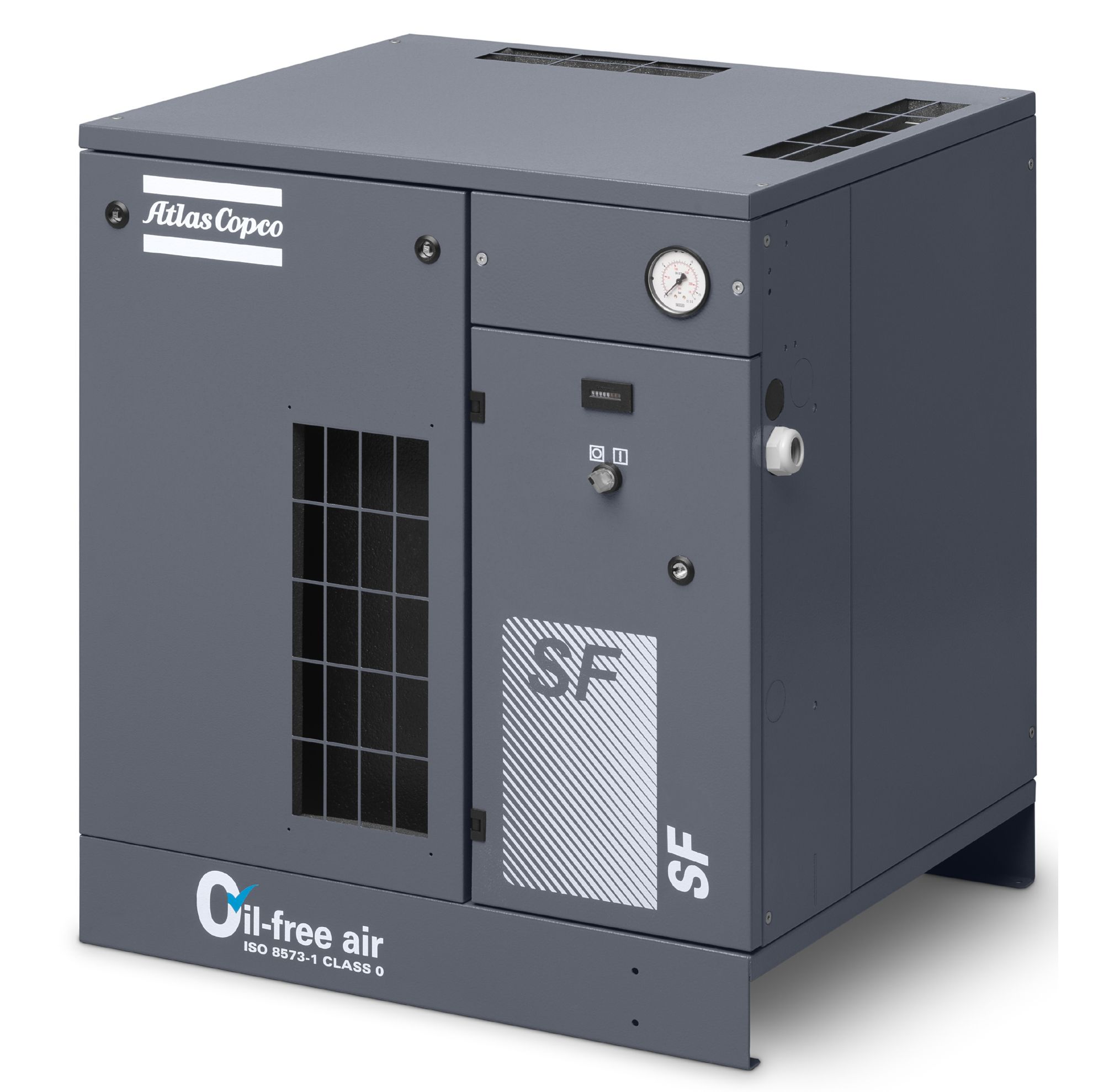

The Atlas Copco SF2 is a 3hp oil free rotary scroll air compressor rated to displace 7.2cfm with a maximum pressure of 145psi. The operating voltage is 230v single phase power. The compressor is baseplate mounted without a receiver tank.

The Atlas Copco SF2 oil-free scroll compressor provides clean, dependable compressed air in a compact and exceptionally quiet floor-mounted package. Powered by a 3 HP IE3 TEFC motor, this air-cooled compressor delivers approximately 7.2 CFM at 145 PSI with a maximum operating pressure of 145 PSI. Its motor and integrated motor starter are wired for 230v single phase operation.

Because oil is not introduced into the compression chamber, the SF2 delivers ISO 8573-1 Class 0 oil-free compressed air, helping eliminate the risk of oil contamination in sensitive products, processes, and pneumatic equipment. The scroll element also produces a smooth, continuous flow of pulse-free compressed air with fewer moving parts than many conventional compressor designs.

This Pack configuration does not include an integrated refrigerated air dryer or air receiver tank. It is intended for floor mounting and can be connected to a properly sized external receiver and downstream air-treatment system. This configuration is an excellent option for facilities that already have a central air receiver, dryer, and filtration system—or that need the flexibility to select air-treatment equipment for a specific dew point or air-quality requirement.

Note: The model number references SF2 which is the kW rating for a 3HP motor. This SF2 does not include the Elektronikon Touch controller.

Key Features & Benefits: Atlas Copco SF2 145psi 230v Single Phase / 8153611184

• Class 0 oil-free air: Protects sensitive processes from oil introduced by the compressor.
• 3 HP scroll compressor: Delivers approximately 7.2 CFM at 145 PSI.
• 230v Single-phase, 60 Hz power (230v/1/60hz)
• IE3 TEFC motor: Premium-efficiency, totally enclosed fan-cooled motor for dependable industrial operation.
• Tankless Pack configuration: Connects to a separately sized external compressed-air receiver.
• Integrated aftercooler: Helps reduce compressed-air discharge temperature before air enters downstream equipment.
