Atlas Copco G4-145TFF 5HP Rotary Screw Compressor with Dryer, 1-Phase, 18cfm 53 Gal Tank 8152103849

Atlas Copco G4-145TFF 5HP Rotary Screw Compressor with Dryer, 1-Phase, 18cfm 53 Gal Tank 8152103849

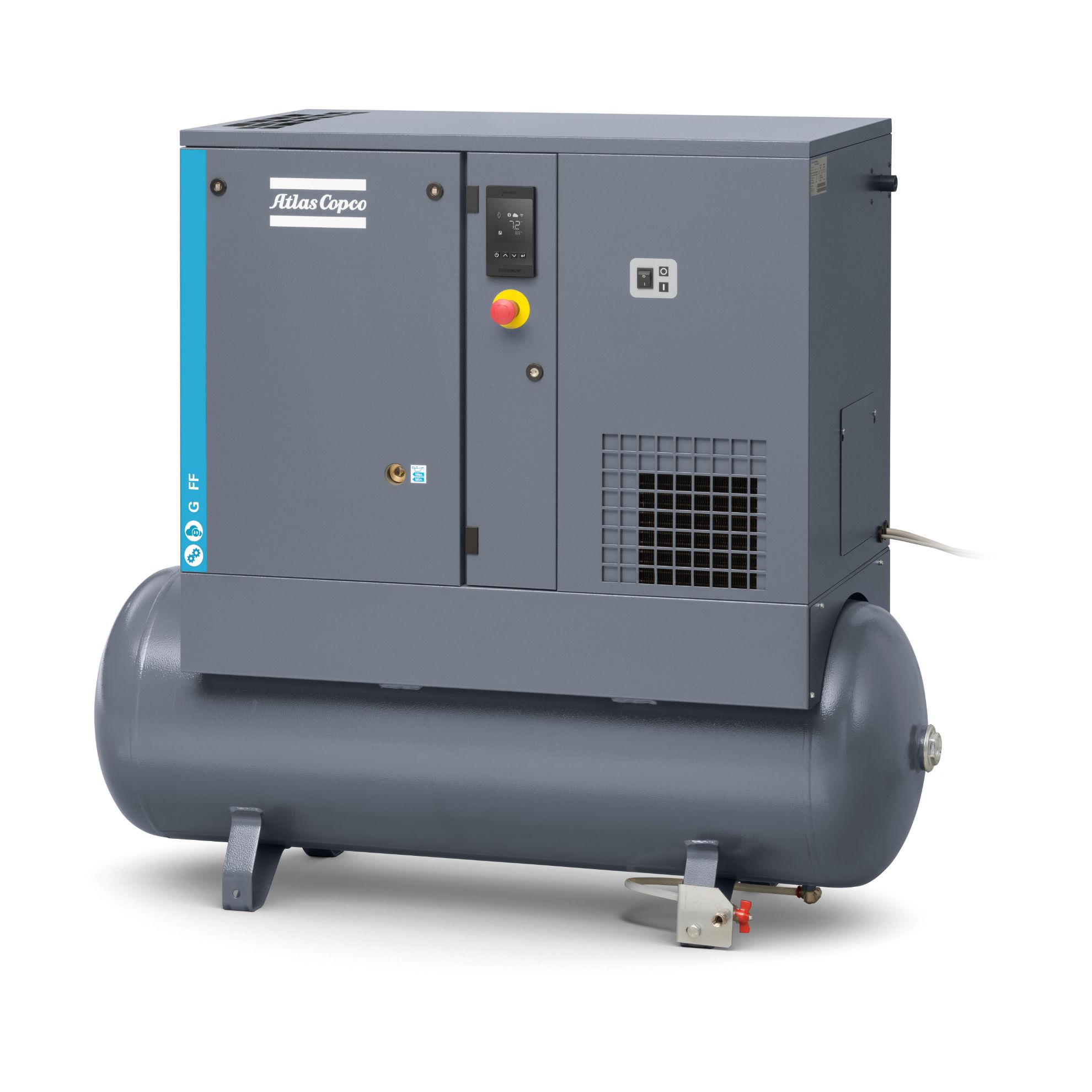

The Atlas Copco G4-145T FF is a 5hp 230v single phase rotary screw air compressor with integrated refrigerated air dryer. The G4-145 FF is rated to displace 18cfm with a maximum pressure of 145psi. The compressor system is mounted on a 53 gallon storage tank.

The 'FF' in the model number signifies that the G4 compressor is a 'Full Feature' model complete with a high performance air compressor dryer. The integrated dryer will help to reduce and eliminate water and rust from accumulating in the tank, and also prevents water from flowing through the pipes and into the finished product.

The G4-145FF single phase compressor is built for workshops, maintenance departments, body shops, and small industrial operations that need dependable compressed air in a compact, quiet package.

Atlas Copco's G4 series of rotary screw fixed-speed air compressors are designed to deliver reliable performance, low operating costs, and easy installation. The system is all pre-plumbed, so installation is simply connecting your airline, securing the electrical connections and mounting to the ground.

The noise level is just 62 dB(A), which allows installation close to the point of use in many facilities. These compressors also help support cleaner air systems with oil carry-over of less than 5 ppm, helping protect air tools, equipment, and finished product quality.

Unlike piston compressors that can be louder and less suited for demanding daily use, the G4 Full Feature models are engineered for 24/7 operation with no cool-down periods required, even in ambient temperatures up to 46°C / 115°F.

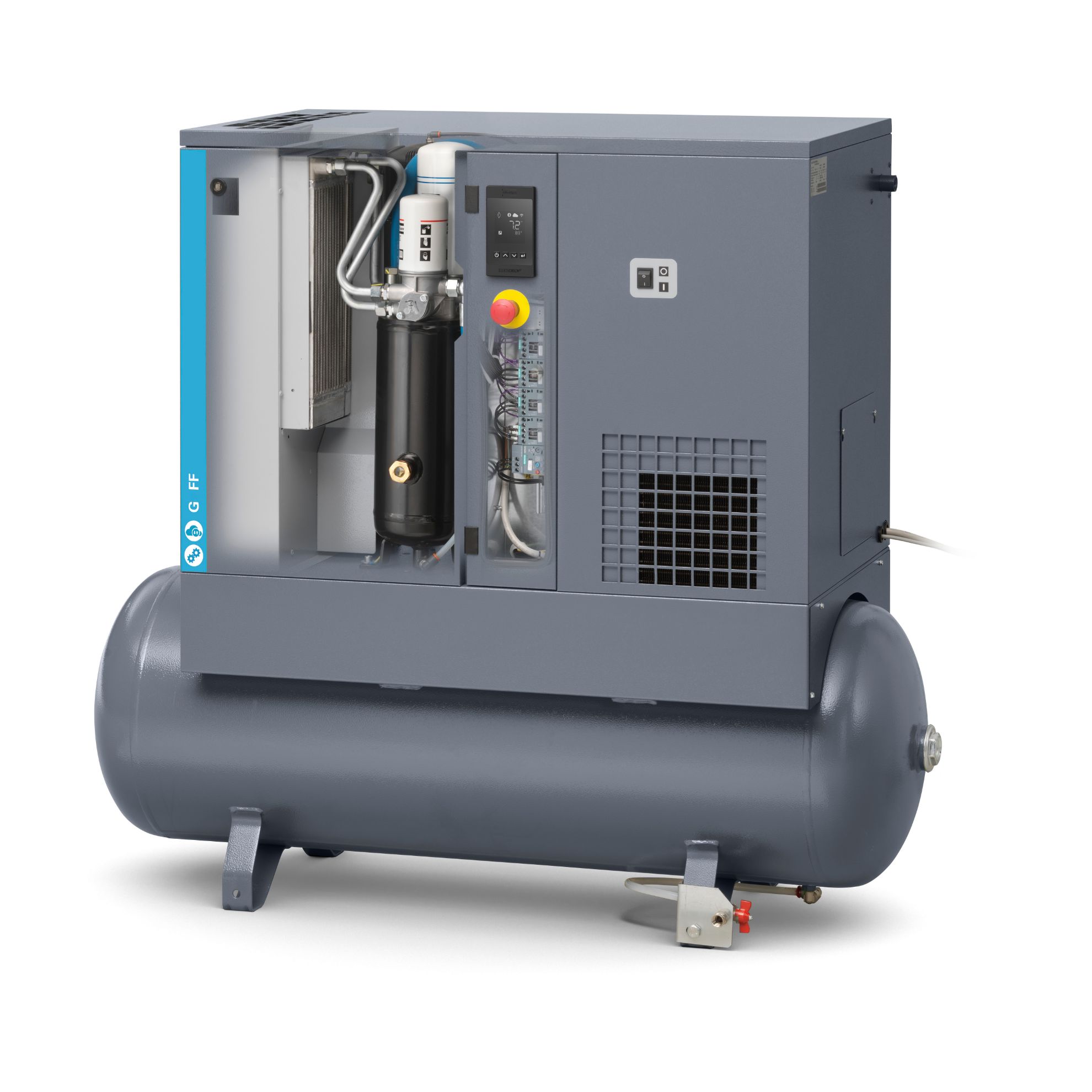

At the core of the G4-145 FF compressor is Atlas Copco’s oil-injected rotary screw element and an IE3 premium-efficiency motor, combining strong free air delivery with lower energy consumption and reduced total cost of ownership.

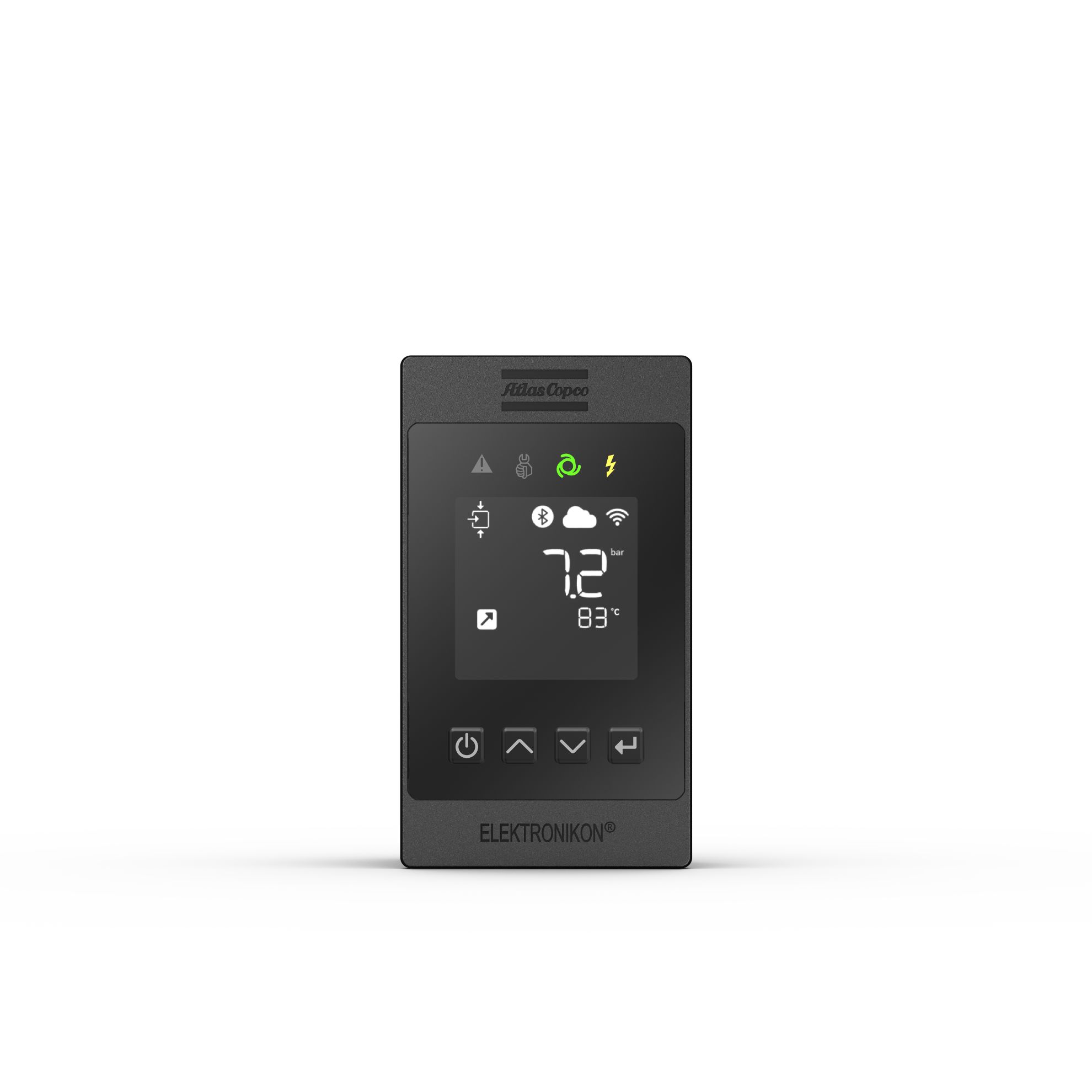

Elektronikon NANO Microprocessor Controller

The NanoTM is the first compressor controller ever to enable over-the-air updates, making the G4 Full Feature the first compressor to get better over time. The Nano also connects your G Series air compressor with Atlas Copco’s SMARTLINK app, giving you the freedom to monitor and control your compressor with your smartphone or tablet.

• Delayed Second Stop: The Nano’s DSS feature stops the compressor’s motor whenever possible. The controller maintains the desired system pressure while minimizing the motor run time to keep your energy consumption at a minimum.
• Real-time service alerts on your computer or mobile device.
• Monitor from Anywhere: Use the NANO controller SMARTLINK app to check your compressor’s real-time performance on pressure, temperature, running hours and operation mode.

Key Features & Benefits: Atlas Copco Single Phase G4-145T FF / 8152103849

• Full Feature model complete with integrated refrigerated air dryer
• Quiet operation at 62 dB(A) for point-of-use installation in many work areas
• 100% duty cycle for continuous operation without cool-down periods
• Operates in ambient temperatures up to 46°C / 115°F for dependable use in demanding environments
• IE3 premium-efficiency motor helps reduce energy use and operating costs
• Oil carry-over below 5 ppm to help protect tools and production quality
• Elektronikon® Nano™ controller with SMARTLINK connectivity for remote monitoring, alerts, and control
• Available as floor-mounted or tank-mounted Pack models for installation flexibility
