Atlas Copco G22FF-125 FM 30HP Rotary Screw Compressor with Dryer, No Tank, 114cfm, 8153335859

Atlas Copco G22FF-125 FM 30HP Rotary Screw Compressor with Dryer, No Tank, 114cfm, 8153335859

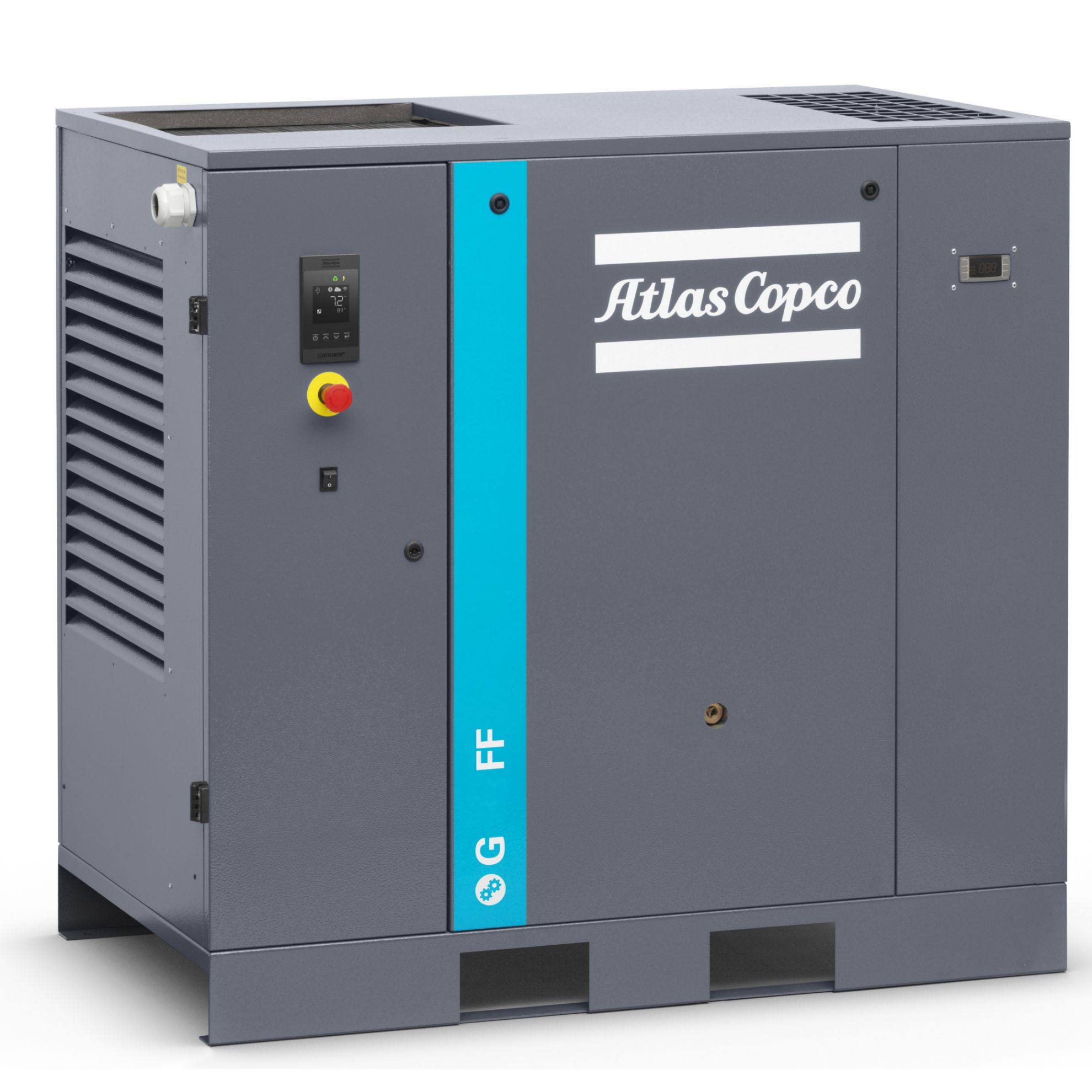

The Atlas Copco G22FF FM is a 30hp rotary screw air compressor with integrated refrigerated air dryer and is a baseplate design without a receiver tank. The G22 Full Feature compressor delivers 114 CFM at 125 psi. The Atlas Copco G22 Full Feature rotary screw air compressor is a dependable compressed air solution built for shops and facilities that need compressed air in a quieter, space-saving package

Atlas Copco’s G22FF frame mount platform is built for reliability, with a belt-driven rotary screw element, TEFC motor, air-oil separator system, and a design rated for ambient temperatures up to 115°F. The motor is a 208-230-460 three phase tri-voltage motor. The compressor will ship pre-wired in 230v/3ph power, but can be converted to 208v or 460v in a few minutes.

This 30hp rotary screw compressor is a baseplate design and ships without a receiver tank. This setup is ideal for users who already have an air tank. The Frame Mount design allows you to install the compressor in a smaller area where traditional receivers would be too large.

 At just 70 dB(A), it is quiet enough for installation much closer to the point of use than many traditional compressor packages, helping reduce piping runs and improve workspace flexibility. The result is a compressor that is easy to place, easy to live with, and built to deliver efficient compressed air with lower total cost of ownership.

Integrated Refrigerated Air Dryer:

The G22 Full Feature air compressor comes with a built-in refrigerant air dryer. It cools the compressed air and removes any moisture before it can enter your air system. This prevents rust in your compressed air piping and avoids damage to your pneumatic tools.

Elektronikon NANO Microprocessor Controller
The Atlas Copco G22 full feature includes the Elektronikon Nano controller, which brings advanced compressor control, remote access, and better visibility into system performance. Atlas Copco highlights the Nano as a connected controller that supports remote control, real-time monitoring, service alerts, and secure feature updates over time.

• Remote start and stop capability lets users control the compressor from a mobile device.
• Monitor pressure, temperature, running hours, and operating mode for better visibility into system performance.
• Adjust load and unload pressure settings to better match plant demand and improve efficiency.
• Weekly scheduling functionality helps reduce unnecessary run time during off-hours.
• Delayed Second Stop (DSS) reduces unnecessary motor operation to help lower energy consumption.
• Real-time service notifications help operators stay ahead of maintenance needs.
• Leakage detection functionality can help identify compressed air leaks that waste energy and money.
• Over-the-air updates allow new features to be added securely over time, helping keep the compressor current.
• Easy access to support information and manuals through Atlas Copco’s connected platform.

Key Features & Benefits: Atlas Copco G22FF-125 FM / 8153335859

• 113.8 CFM at 125 PSI for steady compressed air in production, service, and general industrial applications.
• Frame Mount design without a receiver tank
• Integrated refrigerated air dryer for moisture removal
• 30 HP premium tri-voltage motor supports reliable rotary screw performance in demanding conditions.
• Quiet 70 dB(A) operation makes installation closer to the point of use more practical than many louder compressor types.
• 115°F maximum ambient rating helps the unit perform in hot mechanical rooms and industrial environments.
• Belt-driven rotary screw design provides efficient, dependable compressed air with a quieter operating profile.
• Compact footprint makes installation easier in shops where space matters.
