  5. Graco 240525 Fluid Section Sleeve

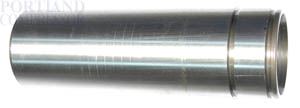

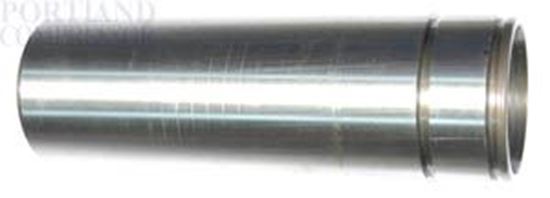

Picture of Graco 240525 Fluid Section Sleeve
Shop Graco
OEM Graco

Graco 240525 Fluid Section Sleeve

SKU: 240525
Part #: 240525
GTIN: 633955823761

Sorry - this product is no longer available

Please consider part # 248210, Sleeve repair kit as a replacement.

Graco Airless Paint sprayer Sleeve Assembly - 240525

The Graco 240525 airless sprayer sleeve assembly houses all of the major fluid section components, including the piston rod, cylinder, and main fluid packings.

For use with the following Graco airless sprayers:

Airless Sprayer DescriptionSprayer Model Number
5900 GMAX H.D. (Non Display)232627
5900 GMax HD Hi bare233716
5900 GMax HD HI COMP233717
MARK V245044
MARK V245049
MARK V232171
California Residents: Prop 65 WARNINGS
