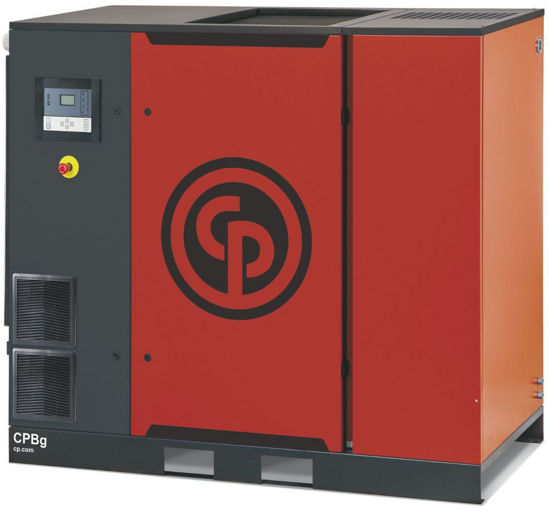

Chicago Pneumatic CPBg D 50 - 50hp Gear Drive Rotary Screw Compressor with Dryer 205 ACFM at 125 PSIG

SKU: CPBg D 50
Part #: CPBg D 50
Old price: $29,720.00
Call to order 866-203-2944

0% Financing is Available – Please Contact us for More Information

Chicago Pneumatic CPBg D 50 - 50hp Gear Drive Rotary Screw Compressor with Dryer 205 ACFM @ 125 PSIG (CPBg D 50 )

The Chicago Pneumatic CPBg D 50 is a 50hp gear drive rotary screw air compressor with integrated refrigerated air dryer. The CPBg D range is designed to provide you with an efficient and reliable compressed air solution. The gear drive design reduces energy consumption compared to belt drive technology. This results in energy efficient compressed air production from an industrial grade compressor designed to run 100% loaded for 24 hours a day.

The Chicago Pneumatic CPBG50 is designed for easy installation and maintenance. The compact baseplate design will fit into almost all compressor rooms – simply connect the air outlet to your receiver tank and system. A dust protection cabinet is included as standard. Not only will this result in a cleaner air compressor, the canopy lowers the decibel rating down to 71dBA - making this one of the quietest compressors in its class. The large hinged doors and removable panels make accessibility for service work a breeze.

A high performance integrated refrigerated air dryer is pre-installed inside of the compressor cabinet. This lowers the dew point of the air to 39°F providing clean and dry compressed air downstream. A refrigerated dryer protects your valuable downstream equipment from contaminants and prevents water from building up inside the receiver tank. An integrated Electronic Zero Loss drain is also pre-installed for efficient removal of condensate.

A Chicago Pneumatic CPBg D compressor will run cooler than most compressors due to the oversized cooler and optimal ventilation. Fresh air is taking from the cool side of the compressor, keeping the electrical components cool and the airend warmer to burn off condensate. This results in less rust and debris buildup on the bearings and airend. The oversized coolers will also result in lower operating temperatures and optimal ventilation flow.

The Chicago Pneumatic CPBg series with dryer is managed by the ES4000 Standard microprocessor controller. This electronic control unit is programmed for energy saving operation with intelligent shutdown. The ES4000 control can be programmed to shutdown in accordance with your plant air demand and reduce long periods of unloaded operation, reducing power cost and saving hundreds of dollars per year.

Please contact us if you have any questions or would like a free consultation on what compressor is best suited for your company.

Standard Features

  • Integrated refrigerated air dryer
  • Low sound enclosure with side panel inlet filtration
  • Easy to service thanks to the large hinged doors and removable panels
  • Spin on oil and separator filters for low-cost maintenance
  • Wye-delta, reduced voltage start
  • ES4000 microprocessor controller
  • Standard IP 55 class F IE3 dual voltage 230-460 motor
  • Independent oil and air aftercoolers
  • Temperature protection on drive side motor bearings
  • Improved long life inlet valve
Products specifications
Duty Cycle100% Continuous Duty
Horse Power50
Max Pressure (PSI)125
CFM @ 125 PSI205
Sound Level71dBA
Dryer Power115/1/60hz
Dimensions72" x 31" x 62"
Weight1640 LB
