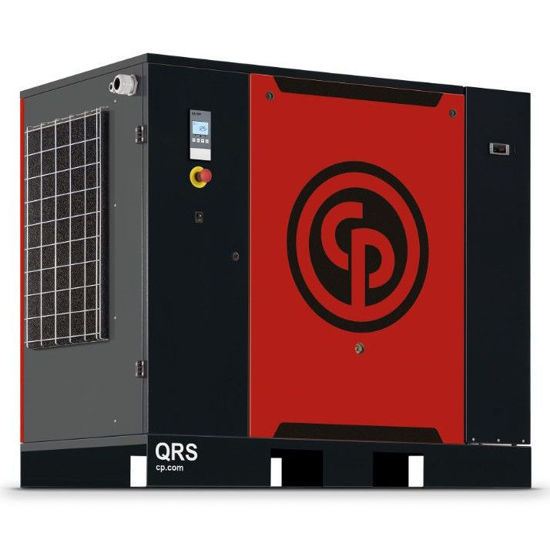

Chicago Pneumatic 25HP, 3 Phase, Rotary Screw Air Compressor with Dryer

Part #: QRS25HPD

Sorry - this product is no longer available

Please use QRS 25D 125 BM

Free shipping

Chicago Pneumatic 25HP Quiet Rotary Screw Air Compressor with Dryer - QRS 25HPD

The QRS-25 Chicago Pneumatic quiet rotary screw air compressor combines solid performance with long durability. Ideal for applications that need consistant and reliable air, the QRS is engineered and built to support the most demanding requirements. Ideal for automotive and industrial applications, the QRS is engineered and built to support the most demanding requirements.

The QRS-25 is managed by the ES3000, an electronic control unit programmed for energy saving operation with intelligent shut-down. It is known that when the motor is not running it does not consume electric power so the goal of the ES3000 is to let the electric motor work for the shortest period of time during idle operation. The intelligent shut-down feature can save a customer hundreds of dollars per year.

The QRS 25HPD runs cool and quiet. The dedicated turbine fan provides superior cooling for the entire compressor package while the high efficiency air/oil coolers ensure the 8,000 synthetic lubricant transmits heat away from the airend. This rotary air compressor features a five year standard warranty.

Standard Features

  • Low Sound Enclosure
  • Continuous Operating Capability
  • Space Saving Design around 12 sq. ft.
  • Load/No Load With Intelligent Shutdown
  • Electronic microprocessor control
  • Heavy duty pre-filtere intake provides component protection
  • Rugged baseplate gives easy access from all sides
  • 5 year warranty through Chicago Pneumatic
  • Separator with oil sight glass
Products specifications
Part Number 4152006987
Horse Power 25
Max Pressure (PSI) 125
CFM @ 100 PSI 105
Voltage 208/230/460
Phase Three
Configuration Basemount (tankless)
Dimensions 47L x 32W x 48H
Weight 1345 lb
Choose from:
Standard Warranty -
  • 1-year or 4000 running hours against manufacturer defects.
Extended CP SECURE 5 Year Warranty* -
  • Complete compressor covered for 1-Year.
  • Major parts covered for 60 Months.
*Eligibility for the CP SECURE 5 Year Warranty requires:
  • Authorized distributor start-up of compressor ($350 Start-up Fee).
  • Maintenance in accordance with instruction manual.
  • Conduct annual oil analysis.
  • Use only genuine CP parts.

California Residents see Prop 65 WARNINGS
