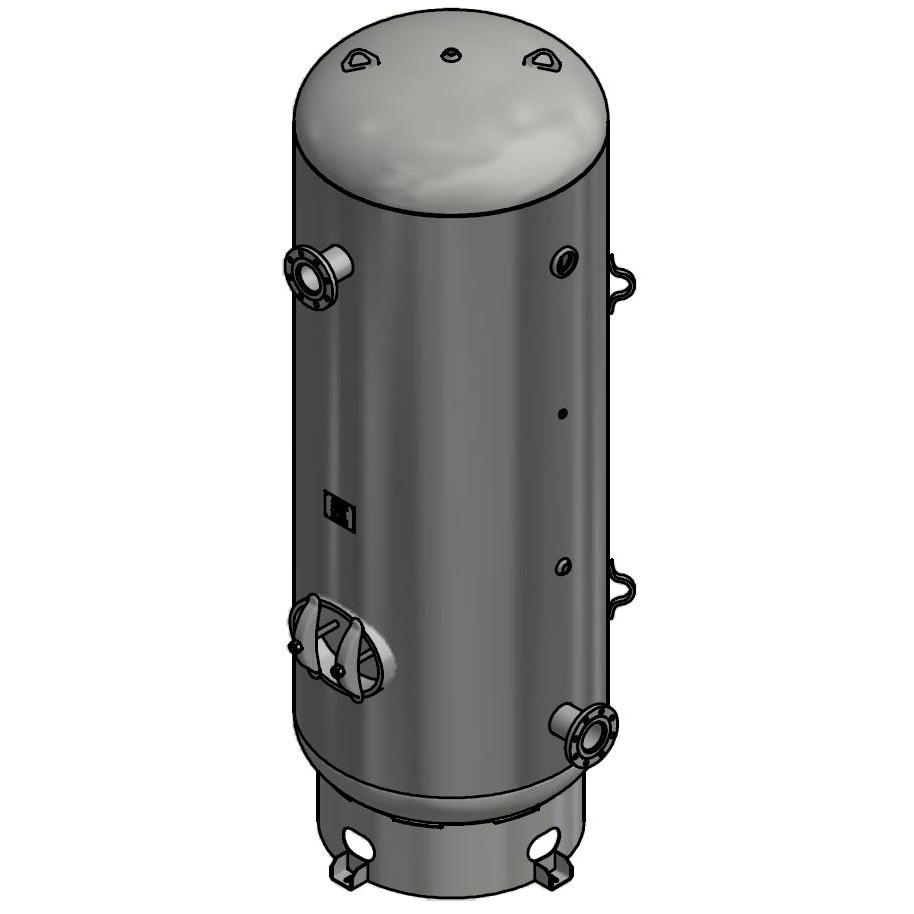

Samuel A10336 2,560 Gallon Vertical Air Receiver Tank, 150psi Max Pressure, 60"x228"

Samuel A10336 2,560 Gallon Vertical Air Receiver Tank, 150psi Max Pressure, 60"x228"

The Samuel A10336 vertical air receiver has a capacity of 2,560 gallons and is rated for 150psi maximum air pressure. This bolts to the ground via (4) equally spaced 11/16" x 1.5" slots. This is pre-primed from the factory in a gray universal water based Alkyd enamel. This is also the same tank part number and item manufactured by Steel Fab.

There are eight total openings connection fittings. These include 1/4" (for a safety valve/gauge), 1", 1.25", 3" and a 6" flange connection. There is also a manway opening as well.

Samuel A10336 Specifications and Benefits

• Capacity (Gallons): 2,560Gallon
• Maximum Pressure: 150 psi
• Diameter x Height: 60" x 228"H
• Weight: 4,314 lbs
• CRN#: L6794.5C
• Configuration: Vertical without Topplate
• Built in accordance with the ASME Section VIII Division I code
• "U" stamped and registered with National Board

Please let us know if you have questions on how to size an air receiver for your plant.  We have calclulators to assist with pump up time, peak demand sizing and more. Don’t see the size or configuration you're after on our website? Give us a call! There are many custom options available depending on your needs. We can supply vertical air tanks, horizontal receivers, special exterior/interior coatings and more.
