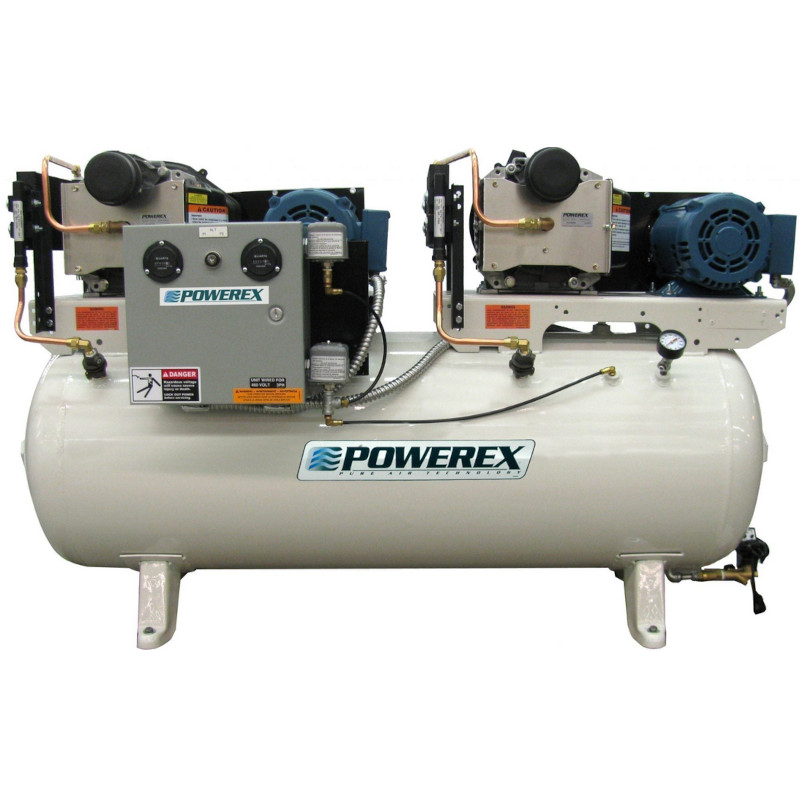

Powerex STD1303 Duplex 6hp (2x3hp) Oil Free Scroll Air Compressor, 17.6cfm@100psi, 80 Gallon, 230v

SKU: STD1303
Part #: STD1303
Call to order 800-542-8300

Powerex STD1303 Duplex 6hp (2x3hp) Oil Free Scroll Air Compressor, 17.6cfm@100psi, 80 Gallon, 230v

The Powerex STD1303 duplex 6hp oil free scroll air compressor utilizes (2) 3hp compressor pumps to displace 17.6cfm @ 100psi. This compressor runs on 230v single phase power and is mounted on a 80 gallon horizontal air receiver. The Powerex Scroll tank mounted system is designed to provide clean, dry air for industrial applications where the quality of the compressed air is critical. The OTD Series Powerex Duplex Air Compressors have been designed and tested to meet the most demanding specifications for reliability in the pneumatic oil-free industry.

The Powerex oilless rotary scroll air compressor has advanced scroll compressor technology through the development of a completely oilless unit. The Powerex Scroll Compressor offers a dynamically balanced air end which insures vibration-free operation. The rotary design permits a continuous 100% duty cycle. No oil separation, oil filtration, or inlet valves are required on the Powerex scroll compressor.

STD0303 would be pre-wired in 230v single phase power prior to shipping. The 80 gallon receiver tank is ASME rated.

Two pressure setpoints are available on the STD1303 6hp compressor depending on your sites psi requirements. 116psi is the most common but this is also available in a 145psi configuration.

This compressor package is able to be configured in an array of different variants, including the potential to add a refrigerated dryer, desiccant dryer, aftercooler and more. Please contact our sales department to help tailor a compressor specific to your needs.

Features STD1303

  • Oil-less scroll pump technology: 100% oil free compressed air
  • Less noise and vibration than comparable reciprocating piston compressors
  • Easy installation that maximizes floor space
  • Manufactured in ISO 9001:2015 certified facilities
  • SLAE03E bare scroll compressor airend
  • 80 gallon horizontal ASME air receiver
  • Pre-installed and wired duplex compressor alternator
Products specifications
Availability Ships From Manufacturer
Voltage Frequency 60Hz
Tank Size 80 Gallons
Weight 570 lbs
Sound Level 75dBa
Phase Single
Configuration Horizontal
Drive Style Belt Drive
Connection Size 1/2" NPT
Voltage 230/1/60
CFM @ 100 PSI 17.6
Max Pressure (PSI) 116, 145
CFM @ 145 PSI 14.2
Horse Power 6
Dimensions 70" x 27" x 46"H
