Ingersoll Rand 32229874 Valve and Gasket Kit for the 2540 Bare Compressor Pump

Ingersoll Rand 32229874 Valve and Gasket Kit for the 2540 Bare Compressor Pump

The valve/gasket kit from Ingersoll Rand includes all of the parts needed to replace the valves and top end gaskets on the 2540 bare compressor pump from Ingersoll Rand. Parts are included for both the high pressure and low pressure heads. Please note this kit is only valid for the older 2540 pump. If you have a 2545 compressor pump you would want to purchase kit 32307118.

Typically a valve and gasket kit would be needed if your compressor does not build air pressure. If you hear the safety valve popping on the low pressure cylinder head, this means that your valves are bad and need to be replaced as well. An instructional sheet is included that displays how each part goes together.

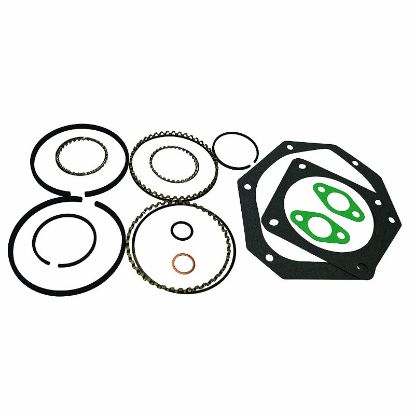

Valves, cylinder o-rings (between the valve plate and cylinders), and head gaskets are all included. Please not that only the reed valves are included in this kit, not the actual valve plates themselves. This kit will work with all 2540 Ingersoll Rand pumps
