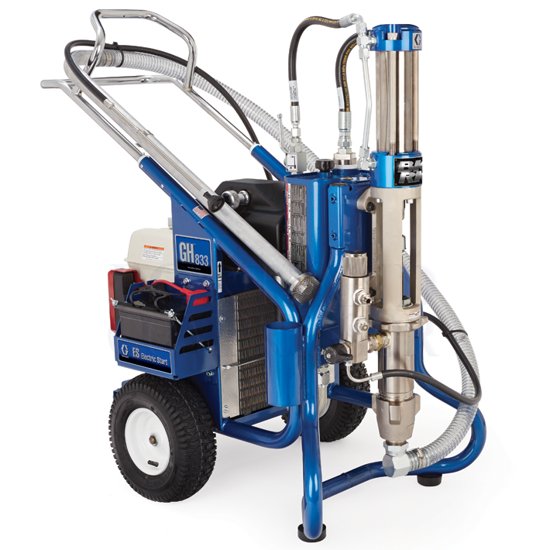

Graco GH 833ES Heavy Duty Hydraulic Sprayer

Select Model
  • *
    Part #: 16U287
    $14,850.00
    $11,029.00
    Free shipping
  • *
    Part #: 16U288
    $15,650.00
    $11,579.00
    Free shipping

Graco GH 833ES with Electric Start

This gas hydraulic unit can spray a wide range of materials. The GH 833ES is the answer for when you need demand performance and value. Equipped with a 13 hp Honda engine with electric start to deliver maximum performance.


Heavy Duty Graco Hydraulic System - Faster, more responsive changeover

  • O-ring sealed for fewer leaks
  • High-precision pressure control
  • No hydraulic reset button needed
  • Durable hydraulic lines for long life

Exclusive MaxLife Endurance Pump - Proven design and performance

  • Exclusive MaxLife rod and sleeve delivers unmatched durability and life - Graco's best
  • Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates down-time
  • Only 16 cycles per gallon
Additional Features
  • Lockable pressure control knob
  • Grounding wire for safety with solvent materials
  • Huge 1.5 inch diameter siphon hose
  • Huge 1 inch porting on displacement pump
  • Heavy Duty Frame with a multi-function design to convert to skid mount in seconds
  • High-capacity 12v 18 Amp charging system
  • Flow-through filter system that has a inside out design to eliminate clogged filters
  • Heavy duty cooling system with large 4-gallon hydraulic reservoir - No special hydraulic fluid needed
Products specifications
Gallons per Minute 4
Max Tip Size 0.065
Tip Type RAC X
Max Pressure (PSI) 4000
Configuration Roof-Rig
Material Water, Oil, Solvent-based (flammable)
Horse Power 13
Weight 350 lb
Shipping Weight 468 lb

Graco GH Big Rig Sprayer Warranty

  • 3 Year Honda Engine
  • 3 Year Warranty Coverage against defects in materials and workmanship on the entire sprayer
  • Lifetime Drive train warranty

California Residents see Prop 65 WARNINGS
