Air Compressor Magnetic Motor Starter by Eaton A27CGF30B040 – 10hp, 208-230v/3ph/60hz, 24-40amps - 1312101281

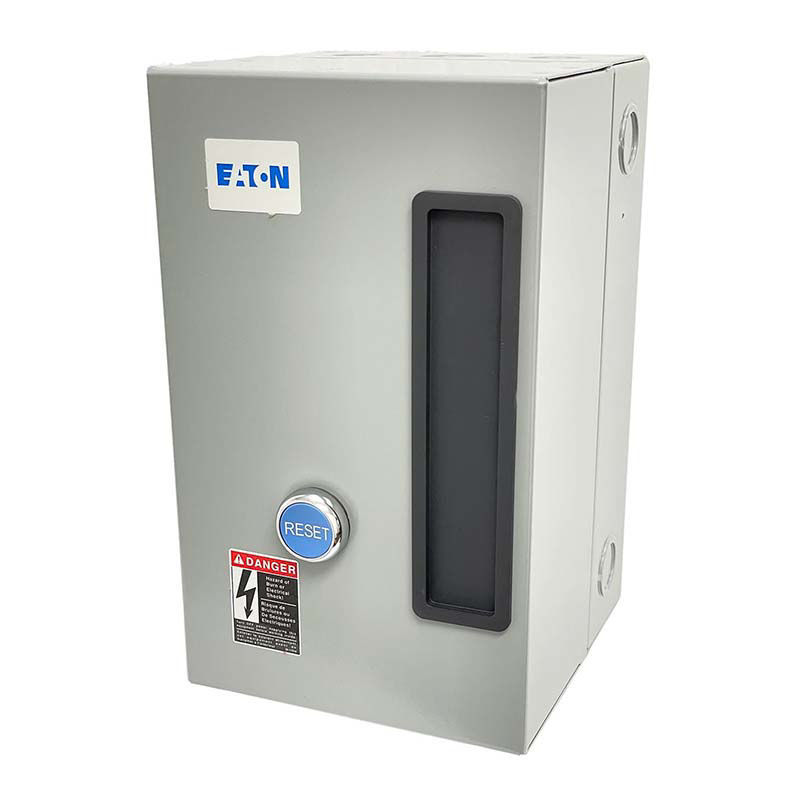

This is an Eaton / Cutler Hammer A27 definite purpose magnet motor starter with built in contactor and overload relay.
This is manufactured by Eaton / Cutler Hammer. The A27CGF30B040 is specifically used on 10hp air compressors that are running on 208/3/60hz power or 230/3/60hz power. The overload is adjustable between 24 and 40amps. This was specifically paired with several Chicago Pneumatic and Quincy air compressors, as well as piston compressors from NAPA, BelAir, and Atlas Copco. This part may be shown in your parts book as 1312-1012-81 or 1312 1012 81.
Featuring components that meet IEC design and UL horsepower ratings and design standards, Eaton mag starters are UL Recognized and use CSA Certified contactors. No internal starter heaters are required. Eaton magnetic starters are shrouded or use finger proof terminals to reduce the possibility of electric shock.
Three phase motor starters provide overload protection to electric compressor motors. This is similar to a surge protector for your compressor – a motor starter adsorbs the incoming power before it is sent into your electric motor. This helps to prevent costly damage to the windings from over-currents and temperature increases. A magnetic starter is required for all three phase compressors and any single phase application where there is no overload protection for the motor. Eaton A27 starters are pre-wired from the factory and recommended for all single and three phase applications where magnetic starters can be applied.
